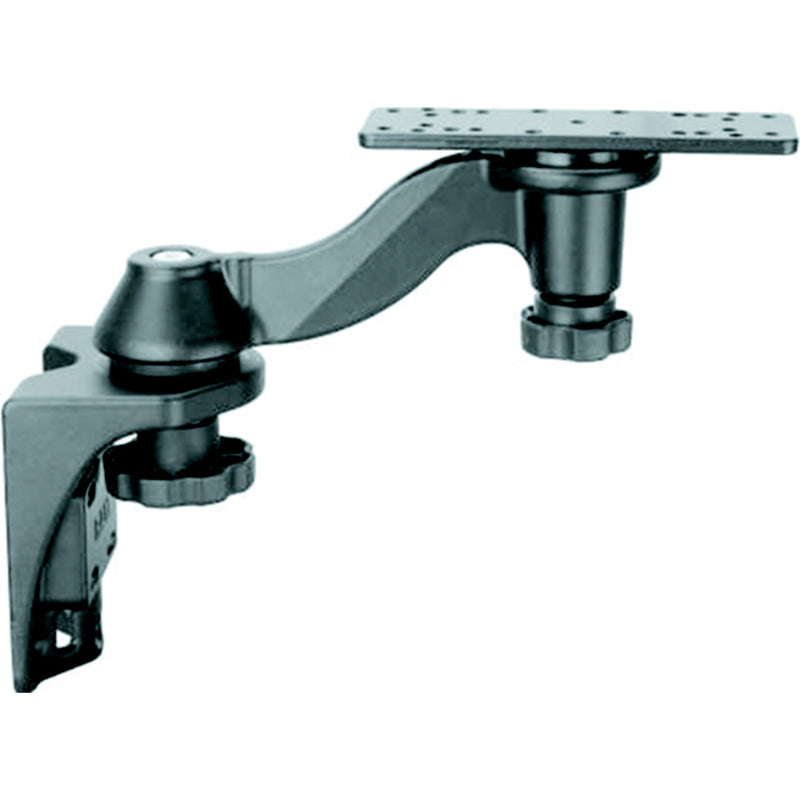

RAM RAM-109V Single Swing Arm Vertical Surface Mount System
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Full-Swing Vertical Mount for Flexible Display Positioning
The RAM RAM-109V is a single swing arm mounting system designed for vertical surface installation — ideal for mounting to the side of a console, a cabin wall, or any vertical panel where you need a display to swing out, rotate, and lock into the perfect viewing position. Unlike ball-and-socket systems, the RAM-109V uses a rigid bent swing arm with two independent 360° pivot points, giving you a wide range of motion with a solid, mechanical feel.
The 6" bent arm keeps the display offset from the mounting surface, and the two pivot points — one at the base and one at the plate end — allow you to swing the display out, angle it toward the viewer, and lock it in place. The wide 6-1/4" x 2" rectangular plate accommodates a broad range of marine electronics with its multiple pre-drilled hole patterns.
Key Features
- 6" bent swing arm in powder-coated marine-grade aluminum
- Vertical surface mounting base — mounts to the side of a console, wall, or panel
- Two independent 360° pivot points: one at the base, one at the plate-to-arm junction
- Wide 6-1/4" x 2" rectangular plate with multiple pre-drilled hole patterns
- Fits marine GPS, chartplotters, CB radios, ham radios, gimbal brackets, and more
- Powder-coated marine-grade aluminum for corrosion resistance in saltwater environments
Vertical vs. Horizontal — Choosing the Right Orientation
The RAM-109V mounts to a vertical surface (side of a console, bulkhead, or panel) and swings the display outward and forward. If you need to mount to a horizontal surface (top of a console or dash) and swing the display up and toward the viewer, see the RAM Single Swing Arm Horizontal Mount System.
If you prefer a ball-and-socket system with infinite micro-adjustment rather than a swing arm, the RAM RAM-111 1.5" Ball Standard Arm Universal Mount Kit, RAM RAM-111UB Short Arm Kit, and RAM RAM-111UD Long Arm Kit offer the same wide plate in a ball-and-socket configuration.
Parts Desk Insights
Best use case: This mount is the right call when a customer needs to mount a display on a vertical surface — the side of a helm console, a cabin bulkhead, or a panel — and wants the ability to swing it out for viewing and tuck it back when not in use. The two pivot points give more range of motion than a single-pivot arm, and the rigid swing arm feel is preferred by some customers over the micro-adjustability of ball-and-socket systems. It's a particularly good fit for cabin or below-deck installs where the display needs to fold away. Confirm the customer's mounting surface is vertical before ordering — for horizontal surfaces, the horizontal swing arm version is the correct choice.
