Raymarine A80513 RayNet (M) to RJ45 (M) Adaptor Cable – 100mm
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

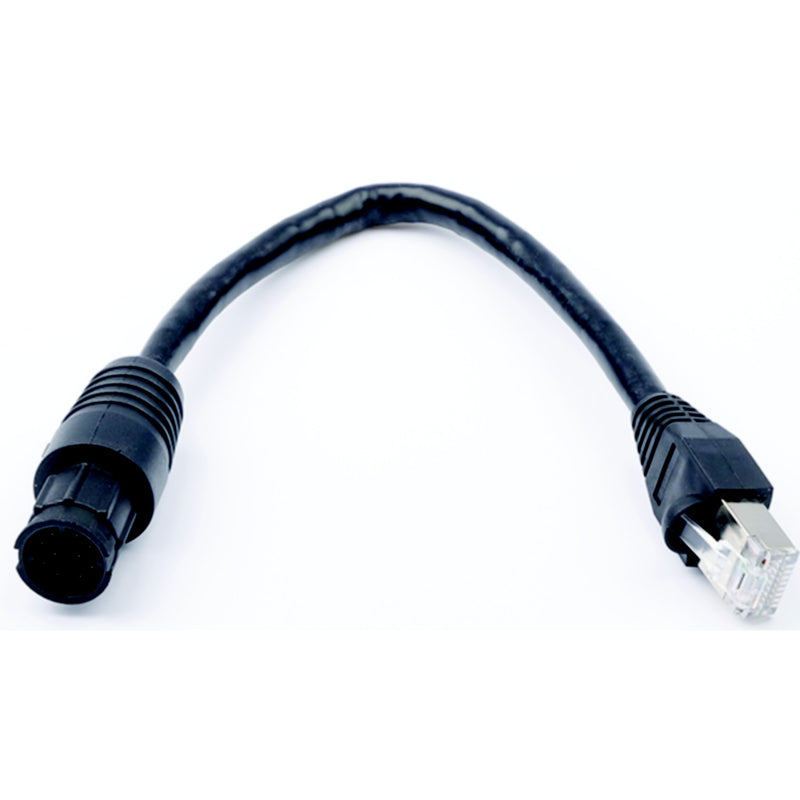

Raymarine RayNet (Male) to RJ45 (Male) Adaptor Cable – 100mm
Part Number: A80513 (distributor SKU: 152-A80513)
Brand: Raymarine
Type: RayNet to RJ45 adaptor cable
Connector A: RayNet Male
Connector B: RJ45 Male (standard Ethernet)
Length: 100mm (approximately 4 inches)
Product Overview
Short adaptor cable that bridges a RayNet male connection to a standard RJ45 male Ethernet port. Used to connect Raymarine RayNet networking equipment — such as chartplotters, multifunction displays, and radar scanners — to standard Ethernet-equipped devices or routers in a marine network setup. The 100mm length keeps connections compact and routing clean.
- Genuine Raymarine networking accessory
- Connects RayNet (Male) to standard RJ45 (Male) Ethernet
- Length: 100mm — ideal for short, direct panel or device connections
- Weatherproof RayNet connector for marine environments
Compatible Applications
- Raymarine AXIOM series multifunction displays with RayNet networking
- Raymarine AXIOM Pro and AXIOM XL chartplotters
- Raymarine gS Series glass-bridge displays
- Raymarine radar scanners and sonar modules with RayNet connectivity
- Any Raymarine RayNet-equipped device requiring connection to a standard RJ45 Ethernet port
- Marine routers or switches with RJ45 ports connecting to a RayNet network
Note: RayNet is Raymarine’s proprietary waterproof Ethernet connector format. This cable does not provide power — it is a data connection adaptor only. Verify the connector genders and port types on your specific devices before ordering.
What is RayNet?
RayNet is Raymarine’s waterproof marine-grade Ethernet connector system. It uses a proprietary locking connector designed for reliable data networking in marine environments, while the other end of this cable uses a standard RJ45 Ethernet plug for compatibility with non-RayNet devices or network switches.
Part Number Reference
- Raymarine: A80513
- Distributor SKU: 152-A80513
- Cable type: RayNet (M) to RJ45 (M)
- Length: 100mm
Technical FAQ
Is this cable waterproof? The RayNet end uses Raymarine’s waterproof connector. The RJ45 end is a standard connector and should be protected from direct water exposure where possible.
Can I use this to connect two RayNet devices together? No — this cable connects a RayNet port to a standard RJ45 port. For RayNet-to-RayNet connections, use a RayNet to RayNet cable.
Will this work with non-Raymarine devices? The RJ45 end is standard Ethernet and will physically connect to any RJ45 port, but network compatibility depends on the protocol and configuration of the connected device.
Related Products
- Raymarine RayNet to RayNet Cable – Waterproof, 1.3 ft
- Raymarine A80262 RayNet (M to F) Right Angle Adaptor
- Garmin NMEA 2000 T-Connector – 010-11078-00
- Garmin NMEA 2000 Starter Kit – 010-11442-00
Parts Desk Insights
The most common issue with A80513 is connector gender confusion — this is male-to-male, so both the RayNet port on the device and the RJ45 port being connected to must be female (receptacle) ports. Customers sometimes need the right-angle adaptor A80262 in tight spaces where a straight cable creates strain. Always confirm the installation has adequate clearance for the RayNet connector to seat and lock fully, as a partially seated RayNet connector is the most common cause of intermittent network dropouts.
