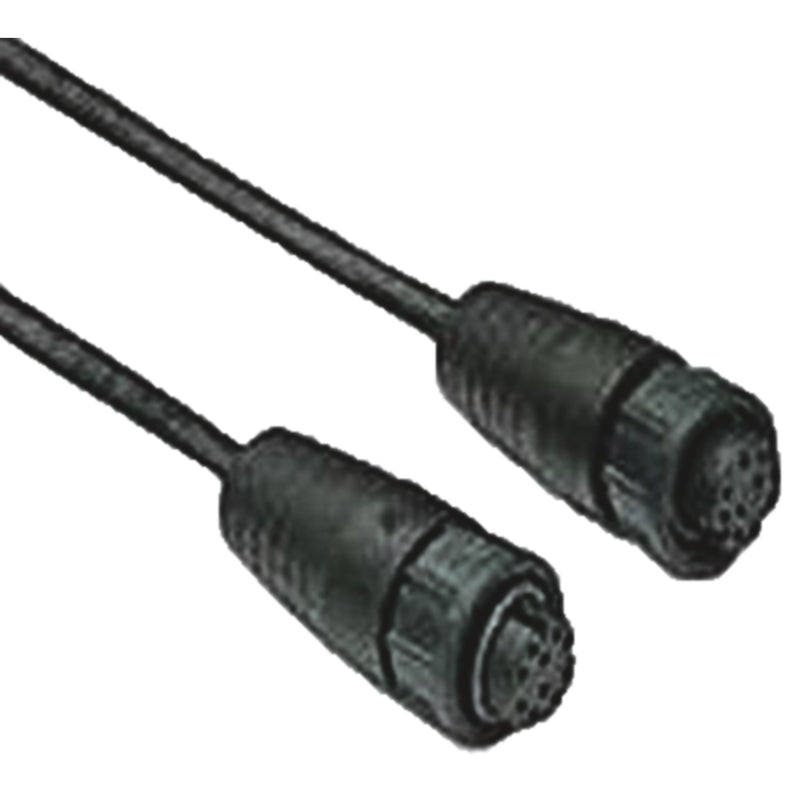

Raymarine A80161 RayNet to RayNet Cable – Waterproof | 400mm / 1.3 ft
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Raymarine A80161 RayNet to RayNet Cable – Waterproof | 400mm / 1.3 ft
Part Number: A80161 (distributor SKU: 152-A80161)
Brand: Raymarine
Type: Waterproof RayNet female-to-female marine Ethernet cable
Length: 400mm / 1.3 ft
Connectors: RayNet female – RayNet female (both ends)
Product Overview
Short waterproof RayNet-to-RayNet Ethernet interconnect cable for connecting two RayNet-equipped Raymarine marine electronics. The RayNet connector system replaces standard RJ45 Ethernet connectors with a waterproof, vibration-tolerant twist-lock design built for the marine environment. The 400mm / 1.3 ft length is ideal for tight routing between devices mounted close together at the helm or within an electronics enclosure.
- RayNet female connector on both ends
- Waterproof, vibration-tolerant twist-lock RayNet connector design
- Length: 400mm / 1.3 ft
- Marine-grade construction throughout
- Suitable for helm, console, and enclosed electronics bay installations
Compatible Applications
- Raymarine AXIOM and AXIOM Pro multifunction displays with RayNet networking ports
- Raymarine chartplotters, fishfinders, and displays equipped with RayNet ports
- Connecting Raymarine network modules, sonar modules, and accessories via RayNet
- Any Raymarine RayNet-to-RayNet short interconnect or patch cable application
Connector Note: RayNet is Raymarine’s proprietary waterproof marine Ethernet connector. This cable has RayNet female connectors on both ends — verify the port gender on your devices before ordering. For connecting RayNet to a standard RJ45 Ethernet port, see the Raymarine A80513 RayNet Male to RJ45 Male Adaptor Cable.
Part Number Reference
- Raymarine: A80161
- Distributor SKU: 152-A80161
Installation Notes
- Align the RayNet connector with the port and twist to lock — do not force or over-tighten
- Route the cable away from sharp edges, pinch points, and high-heat areas
- Avoid tight bends near the connector ends to protect the cable and maintain waterproof integrity
- Cap unused RayNet ports with appropriate dust/weather caps when not connected
- Confirm network connection is established in the device setup menu after installation
Technical FAQ
What is RayNet? RayNet is Raymarine’s waterproof marine Ethernet connector system. It provides the same high-speed data transfer as standard Ethernet but with a twist-lock, waterproof connector designed to withstand vibration, moisture, and salt exposure in the marine environment.
Can I use this to connect a RayNet device to a router or PC? No — this cable has RayNet female connectors on both ends and is designed for RayNet-to-RayNet connections only. To connect a RayNet port to a standard RJ45 Ethernet device, use the A80513 RayNet Male to RJ45 adaptor.
Is there a longer RayNet cable available? Yes — Raymarine offers RayNet cables in multiple lengths. Contact us if you need a different length for your installation.
Related Products
- Raymarine A80513 RayNet Male to RJ45 Male Adaptor Cable – 100mm
- Raymarine A80262 RayNet Male to Female Right Angle Adaptor
- Raymarine Axiom 2 Pro 12 S Multifunction Navigation Display
- Raymarine Axiom 2 Pro 9 S Multifunction Navigation Display
- Raymarine Axiom 2 Pro 9" S HybridTouch MFD
- Raymarine Raystar RS150 External GPS/GNSS Sensor
Parts Desk Insights
The A80161 is the go-to short patch cable for RayNet-equipped installations where two Raymarine network devices need to be linked within the same helm panel or electronics enclosure. The most common ordering issue is connector gender confusion — this cable is female-to-female, meaning both devices it connects must have male RayNet ports. Customers also occasionally need the right angle adaptor (A80262) for tight-clearance installations where a straight cable won’t fit. Always confirm the device port gender and available routing clearance before recommending cable length or adaptor type.
