Raymarine EV-200 Hydraulic Autopilot — p70Rs — T70157
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

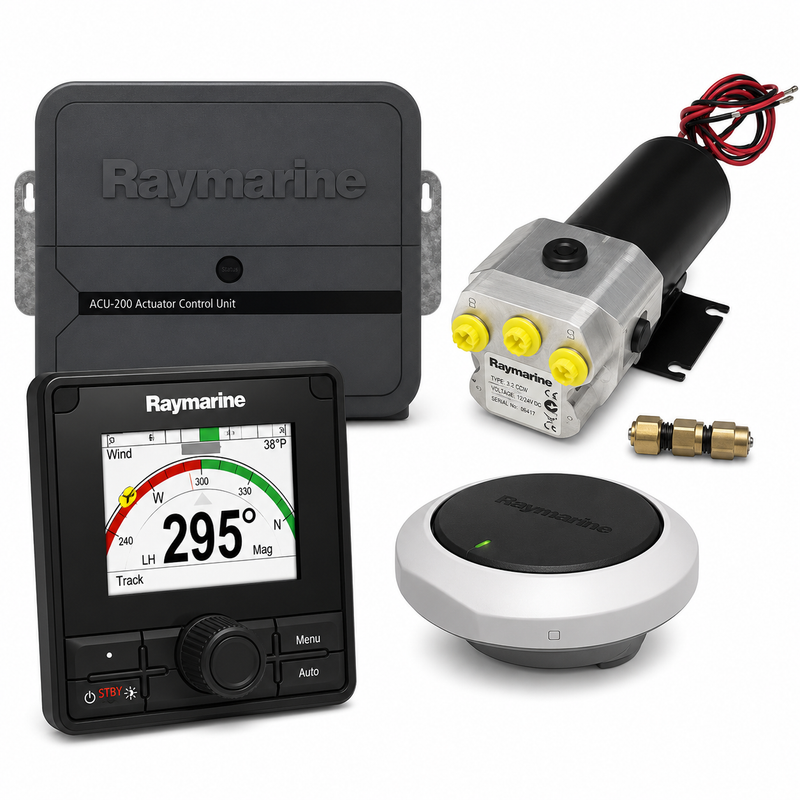

The Raymarine EV-200 Hydraulic Autopilot (T70157) is a complete Evolution autopilot system for power boats and motor yachts with hydraulic steering. The kit includes every component needed for a full installation: the EV1 Sensor Core, ACU-200 Actuator Control Unit, p70Rs control head, Type 1 Hydraulic Pump, rudder indicator, and the EV1 cabling kit.
The EV1 Sensor Core uses a 9-axis solid-state sensor to monitor pitch, roll, yaw and heading simultaneously. It requires no compass calibration and can be mounted above or below deck in virtually any orientation — upside-down or off the vessel’s centreline — making installation straightforward even in confined engine rooms.
The included p70Rs control head features a rotary knob interface and a bright optically bonded display, well suited to power-boat operation. The Type 1 Hydraulic Pump connects to the vessel’s existing hydraulic steering circuit, and the rudder indicator provides the system with real-time rudder position feedback for more precise steering.
What’s in the Box
- EV1 Sensor Core (9-axis, pitch / roll / yaw / heading)
- ACU-200 Actuator Control Unit
- p70Rs Control Head
- Type 1 Hydraulic Pump
- Rudder Indicator
- EV1 Cabling Kit
Key Features
- Complete autopilot system for hydraulic steering — no additional components required for basic installation
- EV1 9-axis Sensor Core — no compass calibration required
- Flexible sensor placement — above or below deck, any orientation
- Type 1 Hydraulic Pump integrates with existing hydraulic steering circuits
- Rudder indicator included for precise closed-loop steering feedback
- p70Rs rotary control head with optically bonded sunlight-readable display
- LightHouse user interface with automatic 3-step setup
- SeaTalkng networking — compatible with NMEA 2000
- Autopilot modes: Auto, Standby, Pattern, Track, Power Steer, Jog Steer
- Raymarine part number: T70157
Related Autopilot Systems
- Raymarine EV-200 Mechanical Linear Drive Autopilot — p70Rs — T70158 — for mechanical steering
- Raymarine EV-100 Wheel Pilot with p70s — T70152 — for sailing yachts
- Raymarine EV-100 Power Pilot with p70Rs — T70154
- Raymarine EV-100 Power Pilot with p70Rs & 1.0L Hydraulic Pump — T70330
- Raymarine EV-100 Cockpit Autopilot — Sail
- Raymarine p70s Control Head — Sail — E70328
Parts Desk Insight
Staff Choice*****
The EV-200 Hydraulic is the correct system for power boats that already have hydraulic steering — the Type 1 pump integrates directly into the existing hydraulic circuit without replacing it. The rudder indicator included in this kit gives the autopilot closed-loop feedback, which improves steering accuracy compared to systems without one. If your vessel has mechanical (cable or rack-and-pinion) steering rather than hydraulic, the EV-200 Mechanical Linear Drive (T70158) is the correct choice. For smaller vessels or those where the EV-200 drive capacity exceeds requirements, the EV-100 Power Pilot family is worth considering first.
