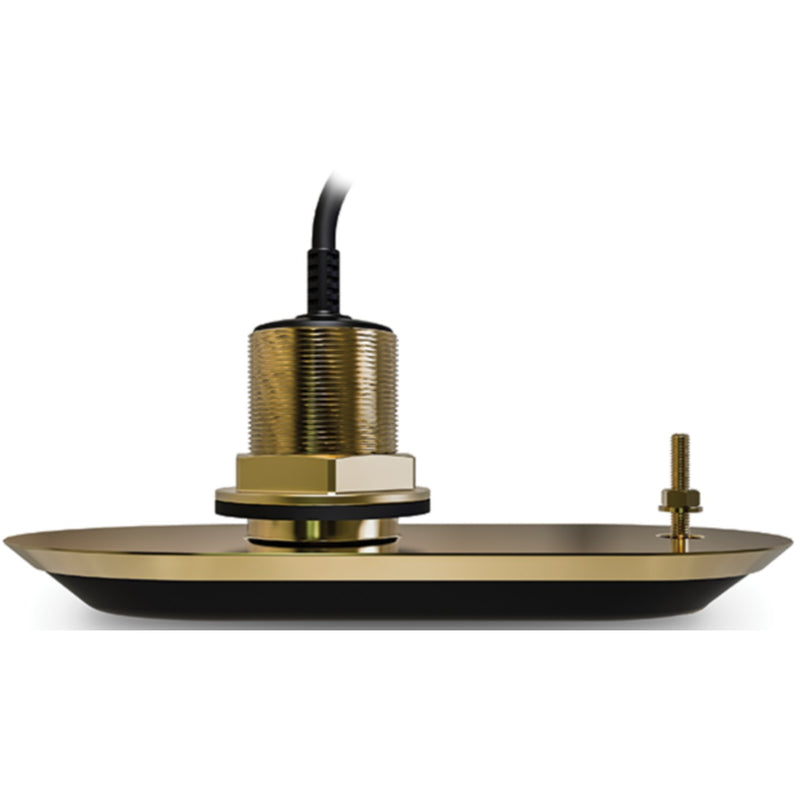

Raymarine RV-200 Bronze All-In-One Thru-Hull Transducer (A80465)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Four Sonar Channels. One Bronze Thru-Hull. Complete Underwater Awareness.
The Raymarine RV-200 is a premium all-in-one bronze thru-hull transducer that packs four sonar technologies into a single, low-profile installation. RealVision 3D, DownVision, SideVision, and high-frequency CHIRP fish targeting all operate from one transducer body — giving you a complete, three-dimensional picture of the water column, bottom structure, and fish around your boat.
Four Sonar Technologies in One Transducer
- RealVision 3D Sonar — Produces life-like, three-dimensional sonar imagery of the bottom and surrounding structure, giving you spatial context that traditional 2D sonar can't provide
- DownVision — High-resolution scanning sonar directly beneath the hull for detailed images of fish, structure, and bottom composition
- SideVision — Scans to both sides of the vessel, covering more water and revealing structure and fish away from your direct path
- High-Frequency CHIRP — Precision fish targeting with excellent target separation and fish arch definition for traditional sonar performance
Built-In AHRS Stabilization
- Attitude & Heading Reference System (AHRS) — Built-in motion compensation automatically stabilizes sonar imagery as the vessel pitches and rolls, delivering clear, consistent images in waves, swells, and while maneuvering
Construction & Installation
- Cast Bronze Thru-Hull Body — Rugged, corrosion-resistant bronze construction suited for fiberglass and wooden hulls on inboard and outboard powerboats
- 0° Offset Element Arrangement — Transducer elements are optimized for flat-bottom hull designs
- Low-Profile, Near-Flush Design — Minimal drag and no cavitation; no fairing block required, simplifying installation and making it suitable for trailered boats
- Built-In Water Temperature Sensor — Fast-response sensor provides accurate real-time surface water temperature readings
Compatible Chartplotters
Designed for use with Raymarine Axiom and Axiom+ series chartplotters with RealVision 3D capability, including the Axiom+ 9" RV, Axiom+ 12" RV, and Axiom 2 Pro 9" RVM. Verify your chartplotter's RealVision 3D compatibility before ordering.
Parts Desk Insights
Best Use Case: The RV-200 is the right choice for serious offshore and inshore anglers who want the most complete sonar picture available from a single thru-hull installation. The built-in AHRS stabilization makes it particularly valuable on larger powerboats that encounter significant wave action — where unstabilized sonar imagery becomes difficult to read. It's also an excellent fit for sportfishing and cruising vessels where a clean, low-drag thru-hull installation is preferred over transom-mount options. The bronze construction makes it suitable for both fiberglass and wooden hull applications.
Extension & Accessories: If your installation requires additional cable length, the Raymarine RealVision 3D Transducer Extension Cable, 5m is available. For dual-display setups, see the Raymarine RealVision 3D Y-Cable Adapter.
Installation Note: Thru-hull installation requires cutting a hole in the hull. Professional installation is strongly recommended. Confirm hull thickness and deadrise angle compatibility with the RV-200 specifications before purchasing.
Part Number: A80465 | SKU: 152-A80465
