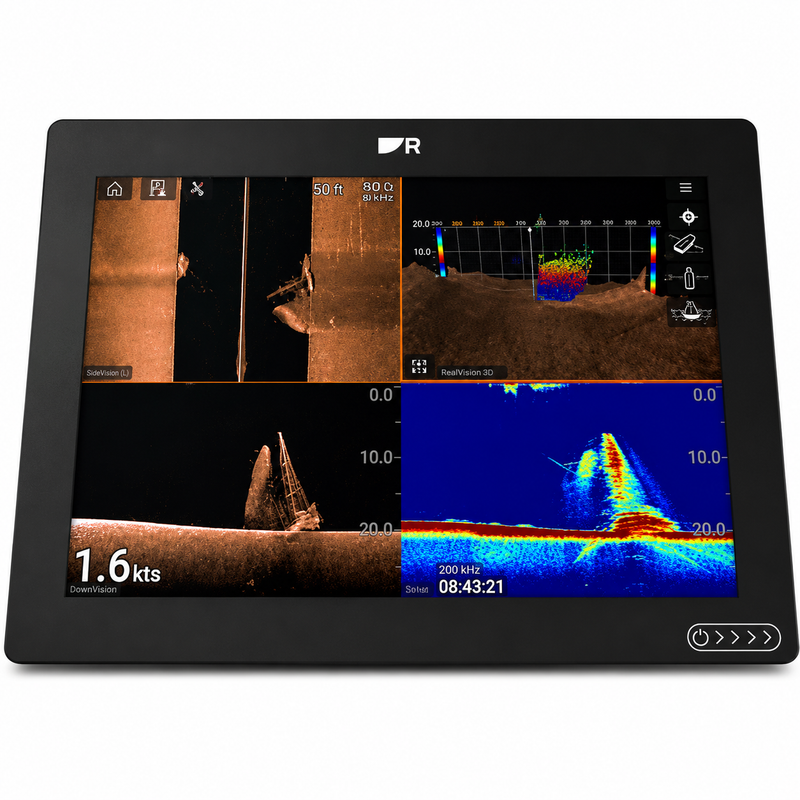

Raymarine Axiom+ 12" RV – Multitouch Chartplotter with Built-In RealVision 3D Sonar
The Axiom+ 12" RV is the top of the Axiom+ lineup — combining the largest screen in the family with built-in RealVision 3D sonar. Unlike the display-only Axiom+ 12", this model has the 600W RealVision 3D sonar module integrated directly into the unit, so you get DownVision, SideVision, and full 3D underwater imaging without a separate sonar module or black box. Add a compatible transducer and you’re ready to fish.
A brilliant 12-inch multitouch display, LightHouse North America charts included, and full Raymarine network compatibility make this a powerful all-in-one navigation and fishfinding solution for larger boats.
Display
- 12" HD IPS multitouch display
- 1280 x 800 WXGA resolution
- Intuitive multitouch interface
- Power consumption: approx. 15–20W
Built-In Sonar
- Integrated RealVision 3D sonar — 600W output
- DownVision, SideVision, and RealVision 3D imaging
- Transducer sold separately — see compatible options below
Connectivity & Integration
- LightHouse North America charts included
- Compatible with Raymarine radar, autopilot, AIS, cameras, and VHF
- SeaTalkng / NMEA 2000 network integration
- Built for permanent marine installation
Compatible Transducers
A RealVision 3D transducer is required and sold separately. Choose from: RV-212 Bronze Thru-Hull Pair (12"), RV-312 Plastic Thru-Hull Pair (12"), or RV-320 Plastic Thru-Hull Pair (20"). Contact us to confirm the right match for your hull type and installation depth.
Also Consider
- Axiom+ 12" (RAY-E70638) — display-only version; RealVision 3D ready but sonar module not built in
- Axiom+ 9" RealVision 3D — same built-in 600W sonar in a more compact 9" display
- Axiom 2 Pro 12" RVM — next-generation 12" HybridTouch with RealVision MAX and dual 1kW CHIRP sonar ports for serious offshore fishing
Parts Desk Insights
The Axiom+ 12" RV is the right call for customers who want the largest Axiom+ screen with sonar built in — no separate module required. It’s a strong fit for larger cruisers and fishing boats where helm space allows a 12" display and the operator wants imaging sonar without the complexity of a multi-box setup. If the customer is comparing this to the Axiom+ 12" display-only, the RV version is almost always the better buy when sonar is part of the plan — the integrated module saves cost and installation complexity. If they want significantly more sonar power or a physical keypad, point them toward the Axiom 2 Pro 12" RVM. Key pre-sale checks: confirm the chart region is North America, verify transducer compatibility for the hull, and note this is a touchscreen-only display with no physical keypad.
