Seachoice 50-15553 Reed Switch Fuel Sender – 11 in. (270mm)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Seachoice 50-15553 Reed Switch Fuel Sender – 11 in. (270mm)

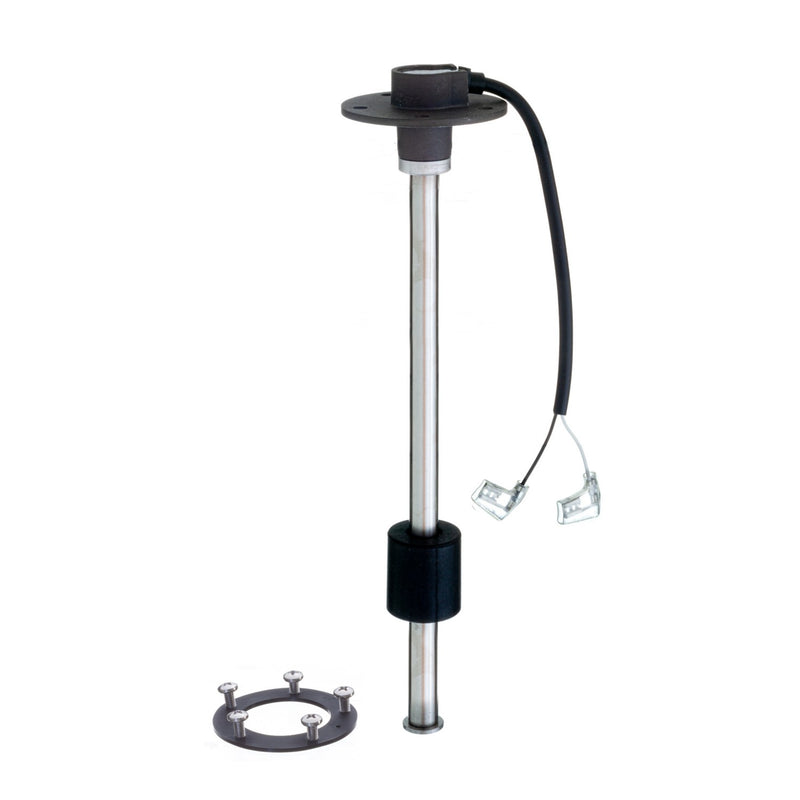

Get accurate, reliable fuel level readings without the headaches of mechanical failure. The Seachoice 50-15553 is an 11-inch (270mm) reed switch fuel sender designed for marine fuel tanks, compatible with the most common gauge resistance range on the market — 33 ohms at full, 240 ohms at empty.
Unlike float-arm senders, this reed switch design has no moving mechanical parts, which means fewer points of failure and longer service life in the demanding marine environment. The stainless steel immersion tubes resist corrosion, and the included gasket with SAE 5-hole bolt pattern makes installation straightforward on most standard tank openings.
Key Features
- 11 in. (270mm) sender length — suited for shallow to mid-depth fuel tanks
- Reed switch design: no moving parts for maximum durability and reliability
- Compatible with 33 (full) / 240 (empty) ohm fuel gauges — the most common marine standard
- Stainless steel immersion tubes for corrosion resistance
- Corrosion-resistant plated mounting flange
- Includes gasket with SAE 5-hole bolt pattern
- 0.250 in. insulated spade connectors
- Part Number: 50-15553 | Barcode: 719249155530
Best Use Case
Best suited for replacing a worn or inaccurate fuel sender in a shallow to mid-depth marine fuel tank (approximately 11 inches deep). If your fuel gauge is reading incorrectly or erratically and the gauge itself checks out, the sender is the most likely culprit. This unit is a direct drop-in for most OEM sender configurations using the SAE 5-hole pattern.
Parts Desk Insights
This sender is compatible with standard 33/240 ohm marine fuel gauges. If you also need a replacement gauge, the Seachoice 15441 Fuel Gauge with Black Bezel is a popular match. Need a different sender length for your tank depth? The full Seachoice reed switch sender range includes the 13.2 in. (330mm), 16 in. (400mm), 26.4 in. (660mm), 32 in. (800mm), and 36 in. (900mm) senders. Always measure your tank depth before ordering to ensure the correct sender length.
