Seachoice 50-15574 Reed Switch Fuel Sender – 26.4 in. (660mm)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Seachoice 50-15574 Reed Switch Fuel Sender – 26.4 in. (660mm)
Accurate fuel level monitoring for deep marine fuel tanks. The Seachoice 50-15574 is a 26.4-inch (660mm) reed switch fuel sender built for large-capacity marine fuel tanks, compatible with the standard 33 ohm (full) / 240 ohm (empty) gauge resistance range used across most marine fuel gauge systems.
The reed switch design has no moving mechanical parts — eliminating the most common failure point in traditional float-arm senders and delivering consistent, accurate readings over the long term. Stainless steel immersion tubes resist corrosion in fuel environments, and the included SAE 5-hole gasket ensures a clean, leak-free fit on standard tank openings.
Key Features
- 26.4 in. (660mm) sender length — designed for deep marine fuel tanks on larger vessels
- Reed switch design: no moving parts for maximum durability and long service life
- Compatible with 33 (full) / 240 (empty) ohm fuel gauges — the most common marine standard
- Stainless steel immersion tubes for corrosion resistance
- Corrosion-resistant plated mounting flange
- Includes gasket with SAE 5-hole bolt pattern

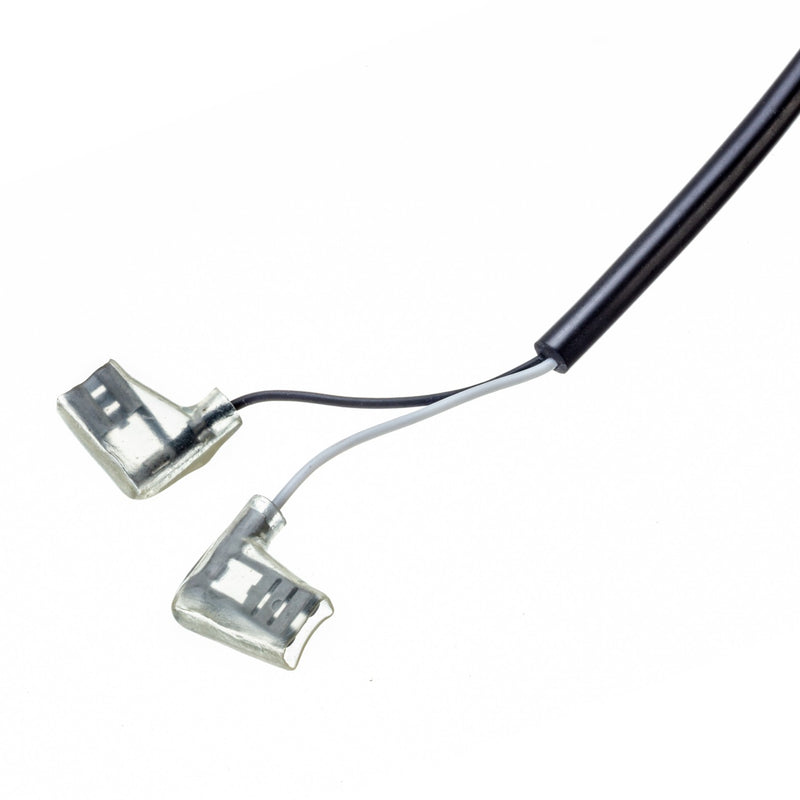

- 0.250 in. insulated spade connectors
- Part Number: 50-15574 | Barcode: 719249155745
Best Use Case
Best suited for replacing a worn or inaccurate fuel sender in a deep marine fuel tank (approximately 26 inches deep), typically found on mid-to-large inboard vessels and cruisers with high-capacity fuel tanks. If your fuel gauge is reading erratically and the gauge itself tests correctly, the sender is the most likely cause. Always measure your tank depth before ordering — using a sender that is too long will result in inaccurate readings.
Parts Desk Insights
This sender works with any standard 33/240 ohm marine fuel gauge. If you also need a replacement gauge, the Seachoice 15441 Fuel Gauge with Black Bezel is a compatible option. Need a different sender length? The full Seachoice reed switch sender range includes the 6 in. (150mm), 7 in. (180mm), 8 in. (200mm), 9.2 in. (230mm), 10 in. (250mm), 11 in. (270mm), 13.2 in. (330mm), 16 in. (400mm), 32 in. (800mm), and 36 in. (900mm) models. Always measure your tank depth before ordering to confirm the correct sender length.
