Sherwood 27000K Impeller Kit – P270 Raw Water Pump Service Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

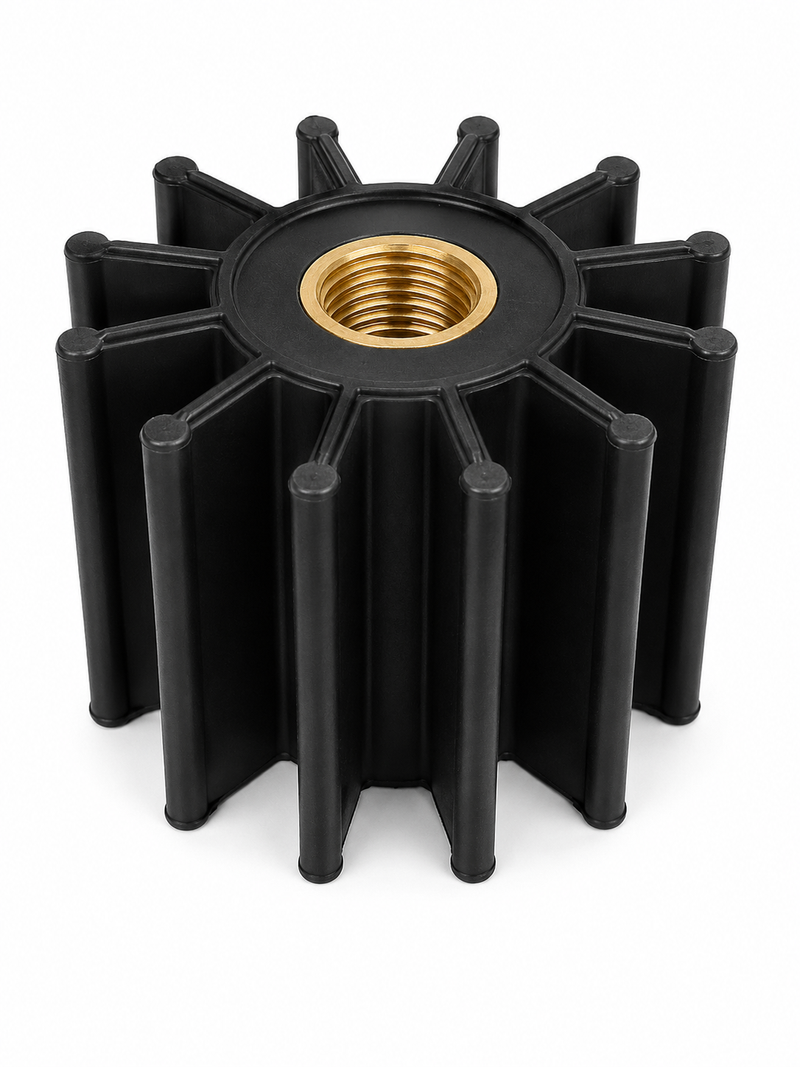

The Sherwood 27000K is a large, heavy-duty flexible impeller service kit for compatible Sherwood P270-series raw-water pumps. Its 12-blade neoprene impeller uses an 11-tooth splined hub and is designed for high-volume engine-cooling applications, including selected Cummins marine diesel installations. Sherwood kits ending in “K” include the impeller, required gasket and O-ring, plus service instructions.
Key Features
- Sherwood manufacturer part number: 27000K
- Distributor SKU: 762-27000K
- Neoprene flexible impeller
- 12 flexible blades
- Outside diameter: 3-5/16 inches / approximately 84 mm
- Width: 2-7/8 inches / approximately 73 mm
- Shaft diameter: approximately 20 mm
- Drive connection: 11-tooth spline
- Maximum published neoprene temperature: 130°F
- Includes impeller, gasket, O-ring and technical service instructions
- UPC: 734943239257
Pump Compatibility
Confirmed Sherwood pump applications include:
- Sherwood P2701X (obsolete, replaced by P2708X)
- Sherwood P2708X
- Other P270-series pumps specifically calling for impeller kit 27000K
Engine Compatibility
The strongest documented engine association is with selected Cummins marine diesel applications using Cummins impeller number 3974456. Current cross-reference information also places this impeller in certain Cummins QSB raw-water pump installations. Exact engine compatibility should be confirmed through the installed Sherwood pump number or the engine cooling-system parts diagram.
Fitment Notice
Do not select this impeller by engine make alone. Confirm that the installed pump requires:
- Sherwood 27000K
- Approximately 84 mm outside diameter
- Approximately 73 mm width
- Approximately 20 mm shaft diameter
- 11-tooth splined hub
- 12-blade neoprene construction
The 27000K is similar in overall size to Sherwood 17000K, but the 17000K uses a keyed 5/8-inch hub rather than the 11-tooth spline used on 27000K.
When This Part Needs Replacement
Replace the impeller when:
- Raw-water discharge becomes weak or intermittent
- Engine operating temperature begins increasing
- Cooling-system or exhaust-temperature alarms activate
- Impeller blades are cracked, torn, hardened or permanently bent
- Pieces are missing from the impeller
- The splined hub is worn or slipping
- The pump has operated without an adequate water supply
- The pump has ingested sand, silt or debris
- The scheduled cooling-system service interval has been reached
A partially damaged impeller may continue turning while delivering substantially reduced cooling-water flow.
Installation Notes
Before installation:
- Shut down the engine and isolate the starting system
- Close the raw-water seacock
- Remove the pump cover and existing gasket
- Use Sherwood impeller puller 25106 (designed specifically for the 27000K series) or the Sherwood insert/puller system
- Recover all broken impeller fragments from the pump and downstream cooling system
- Inspect the pump cover, cam, housing and shaft splines
- Lubricate the new impeller with glycerine, soapy water or an approved rubber-safe lubricant
- Align the 11-tooth splines carefully
- Install the supplied gasket and O-ring
- Reassemble the pump according to the Sherwood service guide
- Reopen the seacock and confirm strong water flow before operating under load
Never operate the flexible impeller pump dry.
Alternate / Cross-Reference Part Numbers
- Sherwood: 27000K
- Distributor SKU: 762-27000K
- Sherwood impeller-only reference: 27000
- Sherwood alternate format: 27000K-SHW
- Cummins: 3974456
- JMP Marine kit: 7608-01K
- JMP Marine impeller: 7608-01
- CEF reference: 500181G
- Alternate reference: 08-35-1201
- UPC: 734943239257
Parts Desk Insight
The defining feature of the 27000K is its 11-tooth, approximately 20 mm splined hub. Several Sherwood impellers share similar diameters and widths, so the spline count and installed pump model are the most reliable identifiers. The most common mix-up is with the 17000K, which looks nearly identical but uses a keyed 5/8-inch hub — not a spline. Always confirm the hub type before ordering. Sherwood impeller puller 25106 is the correct removal tool for this series and should be on hand before beginning service.
