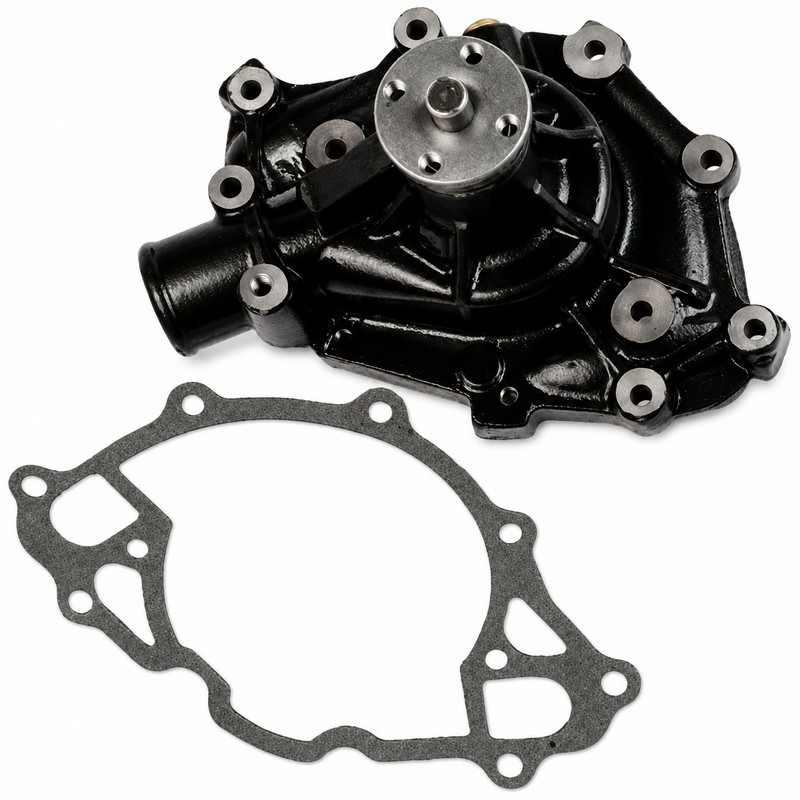

Sierra 18-3584-1 Ford Small-Block Marine Circulating Water Pump
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Product Description
The Sierra 18-3584-1 is a complete marine engine circulating-water pump for Ford small-block V8 engines. It fits compatible Ford 289, 302 and 351 CID marine applications, including 5.0L and 5.8L engines used by MerCruiser, OMC, Pleasurecraft, Volvo Penta and other marine-engine manufacturers. This is the engine-mounted circulation pump that moves coolant through the block and cylinder heads; it is not the flexible-impeller raw-water pump.
Key Features
- Sierra part number: 18-3584-1
- Marine circulating-water pump
- Fits Ford small-block 289, 302 and 351 CID V8 engines
- Suitable for conventional and reverse-rotation marine engines
- Brass bi-directional impeller
- Corrosion-resistant stainless-steel backing plate
- Powder-coated marine-duty housing
- Manufactured from a new casting—not remanufactured
- Mounting gasket included
- UPC references: 808282377939 and 808282258795
Engine Compatibility
Confirmed applications include compatible Ford small-block marine engines:
- Ford 289 CID V8
- Ford 302 CID / 5.0L V8
- Ford 351 CID / 5.8L V8
- MerCruiser Ford-powered marine engines
- OMC Ford-powered marine engines
- Pleasurecraft Marine / PCM Ford applications
- Volvo Penta Ford-powered applications
- MerCruiser models 215, 255 and 888, where the original pump number matches
Serial Number Fitment Notice
Do not select this pump solely because the engine is described as a Ford 302 or 351. Ford-based marine engines can use different front covers, pulley arrangements, hose connections and accessory-drive configurations.
Confirm the original pump number, engine model and mounting arrangement against one of the supported cross references before ordering. This pump is bi-directional and can support conventional- or reverse-rotation engines, but the physical pump configuration must still match the installation.
When This Part Needs Replacement
Replace the circulating pump when:
- Coolant leaks from the shaft seal or housing
- The pump bearing becomes noisy or rough
- The pulley develops wobble or excessive movement
- The engine overheats despite proper coolant level and raw-water flow
- Coolant circulation becomes weak or inconsistent
- The housing or backing plate is badly corroded
- The shaft binds or becomes difficult to rotate
- Belt alignment cannot be maintained because of bearing wear
A leaking seal or loose pump shaft generally indicates that the complete circulating-pump assembly should be replaced.
Installation Notes
- Allow the engine to cool completely before service.
- Disconnect the battery.
- Drain the closed-cooling system below the pump level.
- Record the original belt routing and pulley position.
- Confirm that the new pump matches the original hose outlets and mounting pattern.
- Clean the engine mounting surface thoroughly.
- Install the supplied mounting gasket.
- Tighten the mounting bolts evenly to the engine manufacturer's specification.
- Verify pulley alignment before setting belt tension.
- Inspect the drive belt, thermostat, hoses and clamps during service.
- Refill the system with the specified marine coolant mixture.
- Bleed trapped air according to the engine service procedure.
- Check for leaks and stable operating temperature after installation.
Alternate / Cross-Reference Part Numbers
- Sierra: 18-3584-1
- Sierra: 18-3584
- Sierra related replacement: 18-3598
- Mercury MerCruiser: 56879
- Mercury MerCruiser: 58086
- Mercury MerCruiser: 71683
- Mercury MerCruiser: 71683A1
- Mercury MerCruiser: 883885
- OMC / BRP: 982515
- OMC / BRP: 982517
- OMC / BRP: 3853796
- Volvo Penta: 3853796
- Pleasurecraft / PCM: RA057004
- Indmar: 592026
- GLM: 15400
- Mallory Marine: 9-42607
- MES: WP520M
Compatible & Related Parts
When servicing the Ford small-block marine cooling system, consider these related parts:
- Sierra Marine Engine Circulating Water Pump 18-3575 – related Sierra marine circulating pump
- ARCO WP002 Volvo Penta / Indmar Ford 302 Replacement Water Pump – alternative pump for Indmar Ford 302 / Volvo Penta applications
- PCM Thermostat Kit 143°F – RP026002E – thermostat service kit for PCM / Pleasurecraft Ford engines
- PCM Pump-to-Thermostat Housing Elbow – R024002 – cooling system elbow for PCM / Pleasurecraft Ford engines
Parts Desk Insight
This is the engine circulating pump, not the belt-driven or crank-driven raw-water impeller pump. The strongest identification method is to match the original pump number—especially 71683A1, 3853796 or RA057004—and confirm the Ford small-block mounting and pulley arrangement.
