Sierra Gimbal Bearing 18-2100 | MerCruiser / OMC / Volvo Penta
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Sierra Gimbal Bearing 18-2100
Part Number: 18-2100 (Sierra) Ā |Ā UPC: 030-999-310262

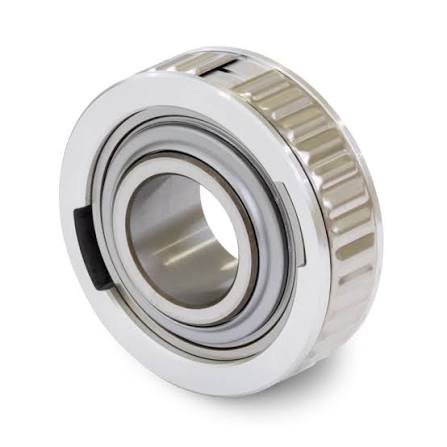

The Sierra 18-2100 is a heavy-duty, greaseable Link-Belt gimbal bearing designed for the transom assemblies of MerCruiser, OMC Cobra / King Cobra, and Volvo Penta sterndrive systems. It supports and aligns the engine-to-sterndrive input shaft as it passes through the transom housing, while allowing controlled angular movement of the drive.
Bearing Specifications
- Construction: Link-Belt
- Service type: Greaseable
- Outside diameter: 3.46 in. / 88 mm
- Inside diameter: 1.38 in. / 35 mm
- Width: 1.30 in. / 33 mm
Dimensions are reference fitment values based on the OEM cross-reference bearing family.
Compatible Applications
MerCruiser
- 120 / 140 HP Ā (Serial: 2791957ā6225576)
- 165 HP Ā (Serial: 2763442 and up)
- 225-S Ā (Serial: 3856268ā4200499)
- 228 HP Ā (Serial: 4782330 and up)
- 233 HP Ā (Serial: 4200500 and up)
- 250 HP Ā (Serial: 4791300 and up)
- R / MR
- Alpha One
- Alpha One Gen II
- Bravo One
- Bravo Two
- Bravo Three
- Blackhawk
OMC
- OMC Cobra
- OMC King Cobra
- Selected 1980sā1990s Cobra-family sterndrive applications
Volvo Penta
- DP-S / DP-S1
- SX-C
- Selected SX-M transom shield / drive configurations
- Associated 3.0 L, 4.3 L, 5.0 L, 5.7 L, 5.8 L, 7.4 L, and 8.2 L engine applications
Fitment Notice
This bearing spans several generations of MerCruiser, OMC, and Volvo Penta drives. Not every transom assembly uses the same bearing. Before ordering, confirm:
- Drive model and generation
- Engine or drive serial number
- Existing OEM bearing number
- Transom assembly type
- Bearing bore dimensions
OEM & Cross-Reference Part Numbers
Mercury / MerCruiser
- 30-60794A2
- 30-60794A4 ā superseded by 30-879194A02
- 30-60794B4
- 30-879194A02
See also: Mercury MerCruiser Gimbal Bearing Kit 879194A01 | Mercury MerCruiser Gimbal Bearing Kit 879194A02
OMC
- 983937
- 3853807
Volvo Penta
- 3853807
- 21752712
Other Aftermarket
- GLM 21900
- Mallory 9-72410
When to Replace the Gimbal Bearing
- Growling or rumbling noise from the transom area, especially when turning under power
- Bearing feels rough or catches when rotated by hand
- Excessive radial play in the input shaft
- Visible corrosion, water intrusion, or grease contamination
- Engine-to-drive alignment cannot be maintained due to bearing wear
Installation Notes
Gimbal bearing replacement requires sterndrive removal. During service:
- Inspect bellows for cracking or water intrusion ā see U-Joint Bellows and MerCruiser Bellows Assembly 8M0062406
- Inspect input shaft and U-joints
- Check bearing bore and retaining components
- Install bearing squarely into the transom housing
- Align grease passage correctly on greaseable installations
- Lubricate with specified marine grease
- Verify engine alignment with the correct alignment tool before reinstalling the drive
Incorrect engine alignment after installation accelerates wear on both the gimbal bearing and drive coupler.
Related Parts
- Sierra 18-21006 Gimbal Bearing ā MerCruiser Bravo & Gen II Sterndrive
- Mercury MerCruiser Gimbal Bearing Kit 879194A01 | Alpha One
- Mercury MerCruiser Gimbal Bearing Kit 879194A02 | Alpha One
- Sierra Transom Seal Kit ā 47-8205
- Sierra Transom Seal Kit ā 47-27721
- Sierra Transom Seal Kit ā 47-82061
- OMC Bellows Kit
- Volvo Drive Bellows Kit
- OMC Sterndrive/Cobra Exhaust Bellows
- Volvo Penta Bellows Kit 876294
- Mercury Quicksilver Gimbal Housing Lock Nut 11-34087
- Quicksilver 94996Q2 Bell Housing Gasket Kit ā MerCruiser R, MR & Alpha One Gen II
- Sierra Cobra Outdrive Mounting Gasket Set (47-2613)
Parts Desk Insights
The Sierra 18-2100 covers one of the most common transom bearing interchange families across three major sterndrive brands. Customers most often need this bearing after noticing a growling or grinding noise from the back of the boat at low RPM or during tight turns ā classic gimbal bearing wear symptoms that worsen over time if ignored.
The most reliable way to confirm this is the right bearing: check whether the existing bearing or OEM number cross-references to MerCruiser 30-879194A02, OMC 3853807, or Volvo Penta 21752712. If it does, 18-2100 is in the correct interchange family. Always double-check the transom assembly and drive serial before finalizing the order, particularly on Volvo Penta SX-M configurations, which can use different bearings depending on the transom shield version.
