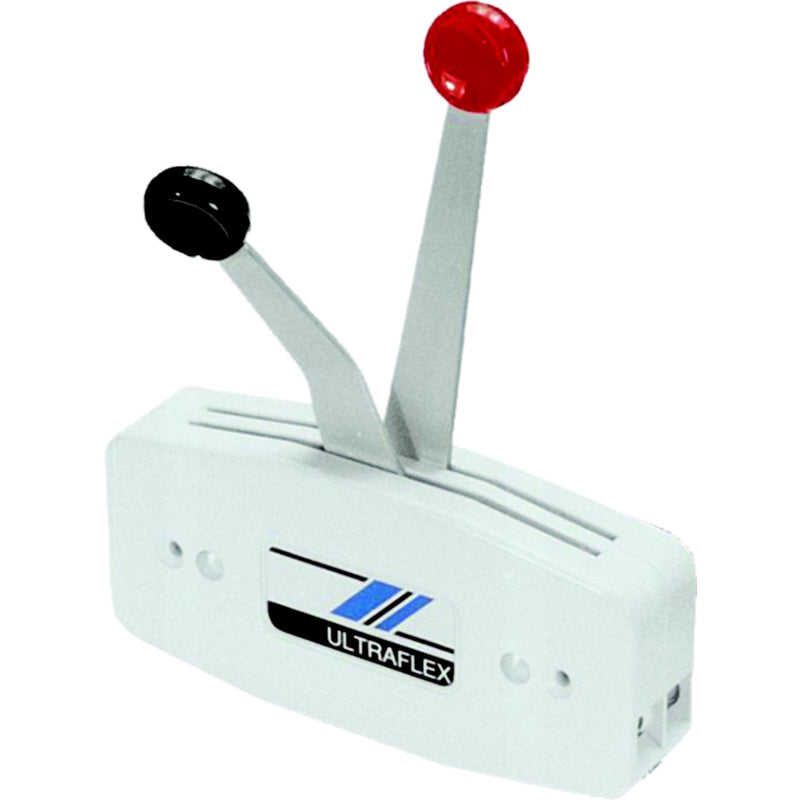

Single Function Dual Lever Side Mount Control, White | 216-B47

Single Function Dual Lever Side Mount Control — White | 216-B47

Overview

The 216-B47 is a single function dual lever side mount control designed for outboard-powered boats. The dual lever arrangement puts throttle and shift within easy reach from the side of the helm, and the unit installs on either the port or starboard side to suit your console layout. The nylon fiberglass body and anodized aluminum levers are built to handle the salt and UV exposure of a marine environment. Cables are not included — connection kit requirements depend on your cable type.

Compatible Applications

• Single-engine outboard installations requiring side mount throttle and shift control
• Mercury Gen I cable systems — direct connection, no adapter required
• OMC-style cable systems (post-1979) — K23 connection kit required
• OMC-style cable systems (pre-1979) — K24 connection kit required
• 33C / C2 / C8 / MACHzero cable systems — K25 connection kit required
• Left or right side helm positions

Dimensions & Weight

• Weight: approx. 907 g (2 lb)
• Mounting: side mount — confirm cutout dimensions against your helm panel before installation

Kit Contents

• 1 × 216-B47 dual lever side mount control assembly, white
• Mounting hardware included
• Control cables not included — order separately based on your engine and cable type
• OMC and 33C-style connection kits (K23, K24, K25) not included — order separately if required

Installation Notes

• Determine cable type before ordering — connection kit requirements vary by cable generation
• Mercury Gen I cables connect directly; no adapter needed
• OMC post-1979 cables require K23 kit; pre-1979 OMC cables require K24 kit
• 33C, C2, C8, and MACHzero cables require K25 kit
• Unit mounts on left or right side — confirm orientation for your helm layout before cutting
• Check all cable routing for clearance and correct travel after installation
• Adjust lever friction and detents per the installation instructions before launching

Related Parts & Cables

• Dual Raked Lever Side Mount Throttle Control — 216-B46T
• Mercury Gen I Throttle/Shift Cable — 9 ft (8M0082482)
• Mercury Gen I Throttle/Shift Cable — 13 ft (8M0082486)
• Mercury Gen I Throttle/Shift Cable — 15 ft (8M0082488)
• Uflex MACHZero 8 ft 33C Engine Control Cable (for K25 cable users)
• Dometic SeaStar Xtreme Control Cable 11 ft OMC (for K23/K24 OMC cable users)

Technical FAQ

Do I need a connection kit?

Only if you are not using Mercury Gen I cables. Mercury Gen I cables connect directly to this control. OMC-style and 33C-style cables require a K23, K24, or K25 adapter kit depending on the cable generation — see the compatibility table above.

Can this control be mounted on either side of the helm?

Yes. The 216-B47 is designed for left or right side mount installation. Confirm the orientation for your console before cutting the mounting hole.

Is this control suitable for twin-engine installations?

This is a single function control designed for single-engine outboard applications. Twin-engine setups typically require dual station or twin-engine specific controls — contact us if you are configuring a twin-engine helm.

What cable length do I need?

Cable length depends on the distance from the helm to the engine. Measure the full routing path — not just straight-line distance — and add slack for turns and service access. See the cable options linked in the Related Parts section.

Are cables included?

No. Control cables are sold separately. Select the correct cable type and length for your engine and helm configuration, and add the appropriate connection kit if your cables are OMC or 33C-style.

What does "single function" mean?

Single function means the control operates one engine station — throttle and shift are combined in the dual lever setup, but the unit controls one engine from one helm position. It is not a dual-station or remote control unit.

Parts Desk Insights

Best use case: The 216-B47 is a solid choice for single-engine outboard boats where the helm is configured for side mount controls — particularly center console, bay boat, and walkaround hulls where side mount placement suits the station layout. It handles Mercury Gen I cable connections natively, making it straightforward to install on Mercury-powered boats without additional adapters. The white finish suits lighter helm panels and console tops common on fiberglass production boats.

Common customer questions: The most frequent issue is cable compatibility — customers often don’t know which cable generation they have and order without the correct connection kit, leading to a return or a second order. Ask for the engine brand, year, and cable end type before completing the order. The second common question is mount side — the unit works on either side, but customers sometimes assume it is handed. Confirm they have measured the routing distance before selecting a cable length, as underestimating the run is a common installation problem.
