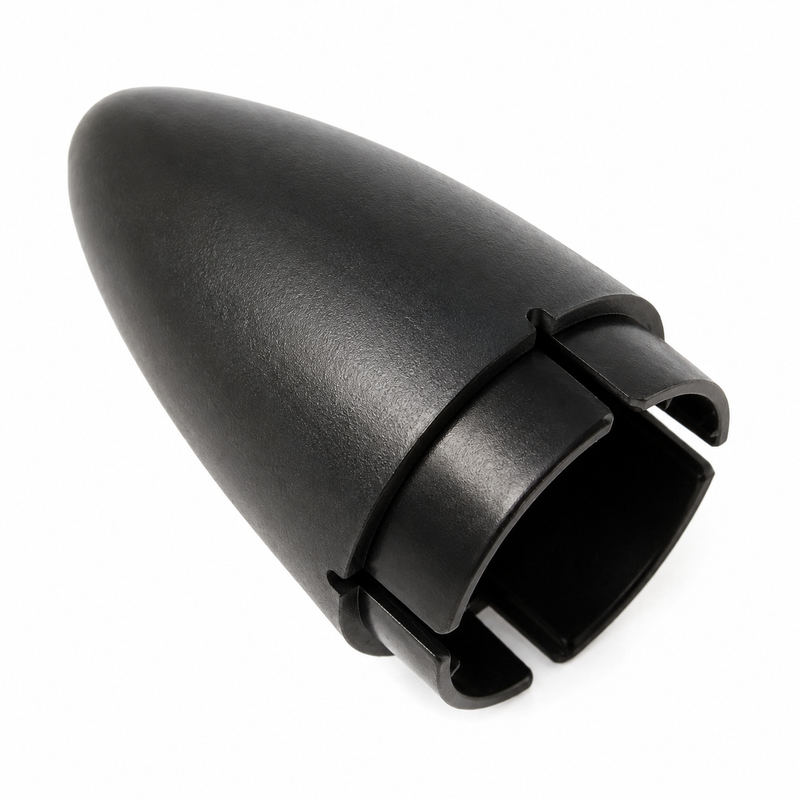

Volvo Penta Propeller Cone 22072153 – IPS Type T/TS
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Number: 22072153
Brand: Volvo Penta
Official Product Type: Propeller Cone / Spinner
System: IPS Propulsion – Propeller Assembly
Diagram Position: Position 2 in Volvo Penta IPS T/TS propeller-hardware diagram
Supersedes: 21293493
Overview
The Volvo Penta 22072153 is the genuine OEM propeller cone (spinner) for Volvo Penta IPS Type T and TS propeller systems on IPS 1 and IPS 10 installations. It forms the streamlined outer end of the forward-facing IPS propeller assembly, protecting the propeller hub hardware and contributing to hydrodynamic efficiency. This is the cone only — not the complete mounting hardware kit. The full kit is available as Volvo Penta Propeller Cone Kit 23779449.
Compatible Applications
- Volvo Penta IPS 1 installations – Type T/TS propeller system
- Volvo Penta IPS 10 installations – Type T/TS propeller system
- IPS Type T propellers: T2, T3, T4, T5, T6, T7, T8
- IPS Type TS propellers: TS3, TS4, TS5, TS6
- D4 and D6 engine-powered IPS installations using Type T/TS Nibral propellers
Confirm that your vessel uses a Volvo Penta IPS Type T or TS propeller arrangement before ordering. This cone is not compatible with IPS Type B, C, or other non-T/TS propeller families.
Serial Number & Fitment Notice
Verify your IPS installation type and propeller series before ordering. IPS propeller hardware varies by drive generation and propeller family. If you are unsure which cone applies to your installation, reference the Volvo Penta propeller guide for your IPS drive or contact us with your drive serial number.
Superseded Part Numbers
- 21293493 — previous Volvo Penta propeller cone number, superseded by 22072153
- 22659020 — earlier cone kit reference in previous Type T/TS documentation
- 22072153 — current OEM part number
Dimensions & Weight
Approximate weight: 0.3 kg. Exact cone dimensions are not published in current Volvo Penta accessory literature. Confirm fitment by part number and IPS propeller series.
Kit Contents Note
This listing is for the propeller cone only. The complete Volvo Penta Propeller Cone Kit 23779449 includes the cone, required mounting hardware, propeller retaining components, grease, and installation tool. If the surrounding propeller hardware is also worn or being updated from an earlier configuration, the complete kit is the recommended service solution.
When to Replace
Inspect the propeller cone whenever removing the propellers for service, line removal, anode service, or shaft inspection. Replace if the cone is cracked, heavily damaged, distorted, excessively corroded, or no longer mounts securely to the propeller assembly.
Installation Notes
22072153 installs at position 2 in the Volvo Penta IPS T/TS propeller-hardware diagram. It is secured using Volvo Penta hex socket screws (963699). Inspect the mounting screws and surrounding propeller hardware before reinstalling the cone. Follow the applicable Volvo Penta IPS service procedure for torque specifications and installation sequence.
Related Parts
- Volvo Penta Propeller Cone Kit 23779449 — complete cone kit including 22072153, mounting hardware, grease, and installation tool
- Volvo Penta Zinc Anode Kit IPS Pod Drive 21174476 — recommended service item when removing IPS propellers
- Volvo Penta Zinc Anode Kit IPS Drive 3593981 — alternate IPS anode kit; verify fitment by drive generation
Technical FAQ
Q: What is the difference between 22072153 and cone kit 23779449?
A: 22072153 is the cone only. Kit 23779449 includes the cone plus all required mounting hardware, retaining components, grease, and installation tool. If only the cone needs replacing and all hardware is in good condition, 22072153 is sufficient. If hardware is worn or missing, order the complete kit.
Q: Does 22072153 replace 21293493?
A: Yes. 22072153 is the current Volvo Penta OEM part number that supersedes 21293493.
Q: Is this compatible with IPS Type B or C propellers?
A: No. 22072153 is specified for IPS Type T and TS propeller systems only. Type B and C propellers use different cone hardware.
Q: What screws are used to secure this cone?
A: Volvo Penta hex socket screws 963699 are used to secure the cone. Inspect and replace the screws if worn or corroded.
Parts Desk Insights
The most common question on this part is whether to order the cone alone or the complete kit 23779449. If the customer is doing a routine cone replacement and the mounting hardware is in good condition, the cone only (22072153) is the right call. If they are servicing an older IPS installation, updating from a previous configuration, or the hardware is corroded or missing, the complete kit is the better choice. Also note that 22072153 supersedes 21293493 — customers referencing the older number should be updated to the current part.
