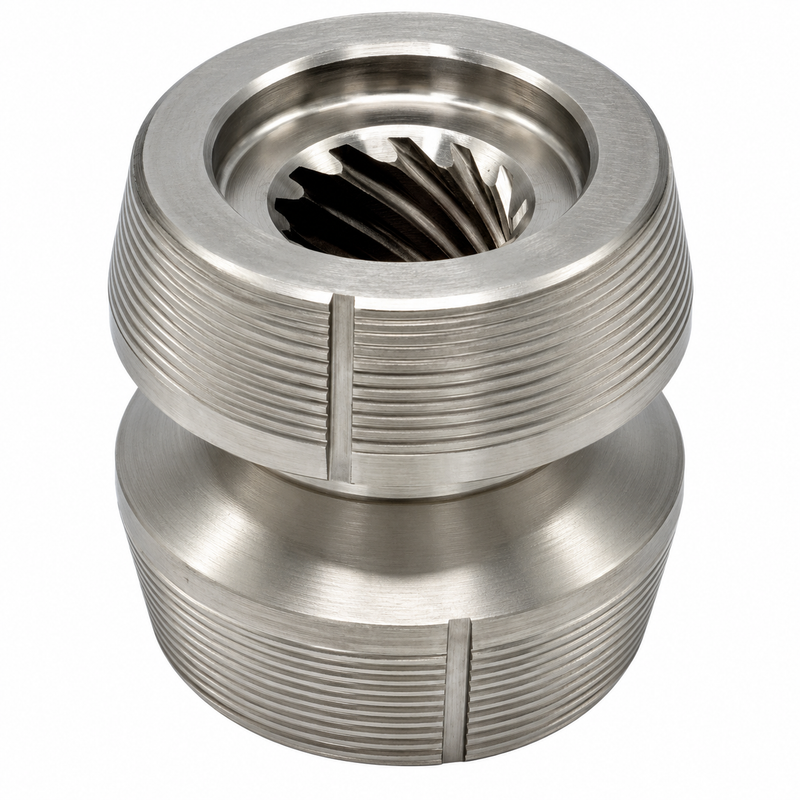

Volvo Penta 3849006 – Sliding Sleeve / Cone Clutch
Part Number: 3849006
Brand: Volvo Penta (Genuine OEM)
Type: Sliding Sleeve / Cone Clutch
System: Sterndrive Upper Unit – Upper Vertical Shaft Assembly
Quantity: 1 per applicable drive assembly
What This Part Does
The Volvo Penta 3849006 is the sliding sleeve and cone clutch installed on the upper vertical shaft of DPH and DPR sterndrives, between the drive gears and associated bearings, washers, and spacers. It slides on the shaft to engage forward or reverse gear, forming part of the drive-engagement mechanism inside the upper unit. This is a precision internal component — correct identification by exact drive model and serial number is essential before ordering.
Supersession / Part Number History
- Current Part: 3849006
- Supersedes: 3862369
- Aftermarket Reference: REC3849006
- Aftermarket Reference: SS-006
Compatible Drive Families
Volvo Penta parts documentation lists 3849006 for the following DPH and DPR sterndrive generations:
Compatible Applications
- DPH-A
- DPH-B / TSK DPH-B
- DPH-C
- DPH-D
- DPH-D1
- DPH-E
- DPR-A
- DPR-B
- DPR-C
- DPR-D
Serial Number Fitment Notice
Fitment must be confirmed by exact drive model and serial number. DPH and DPR drives share closely related upper-unit architecture, but internal components can vary by generation and serial-number break. Verify against the complete gearcase parts diagram before ordering any internal transmission part.
When to Replace This Part
Replace the sliding sleeve / cone clutch if inspection reveals worn or damaged engagement surfaces, scoring, deformation, or wear beyond Volvo Penta service limits. Common symptoms pointing to this component include difficult gear engagement, slipping under load, delayed engagement, or failure to stay positively in gear.
Service Interval
No fixed calendar interval. Inspect during scheduled sterndrive service, gearcase oil changes, or whenever shifting problems are reported. Replace on condition based on inspection findings.
Installation Notes
- Replacement requires full disassembly of the sterndrive upper gear unit.
- Inspect the related drive gear set, upper vertical shaft, needle bearings, ball bearings, washers, spacer sleeves, and shims during service.
- Correct shimming and bearing preload are critical to proper gear engagement and drive reliability after reassembly.
- Follow the current Volvo Penta workshop manual for your specific drive model and serial range.
Diagram Position
Located in the upper unit / upper vertical shaft assembly diagram, positioned between the drive gear set, shaft, bearings, spacers, and associated shift components. Reference the Volvo Penta parts diagram for your specific drive serial number to confirm placement and identify adjacent parts required for a complete service.
Related Parts
Parts Desk Insights
This part comes up most often during upper-unit rebuilds and shifting-complaint diagnostics on DPH and DPR drives. When a customer reports that the drive won’t stay in gear or shifts feel sloppy, this cone clutch is one of the first internal components to check.
The most common ordering mistake is selecting by drive family alone without locking in the serial number. DPH and DPR production spans several serial breaks where cone clutch specs can change. When a customer is here for a shift issue, it’s also worth asking whether the shift actuator and dog have been looked at — these components typically wear together and are worth inspecting as a group.
