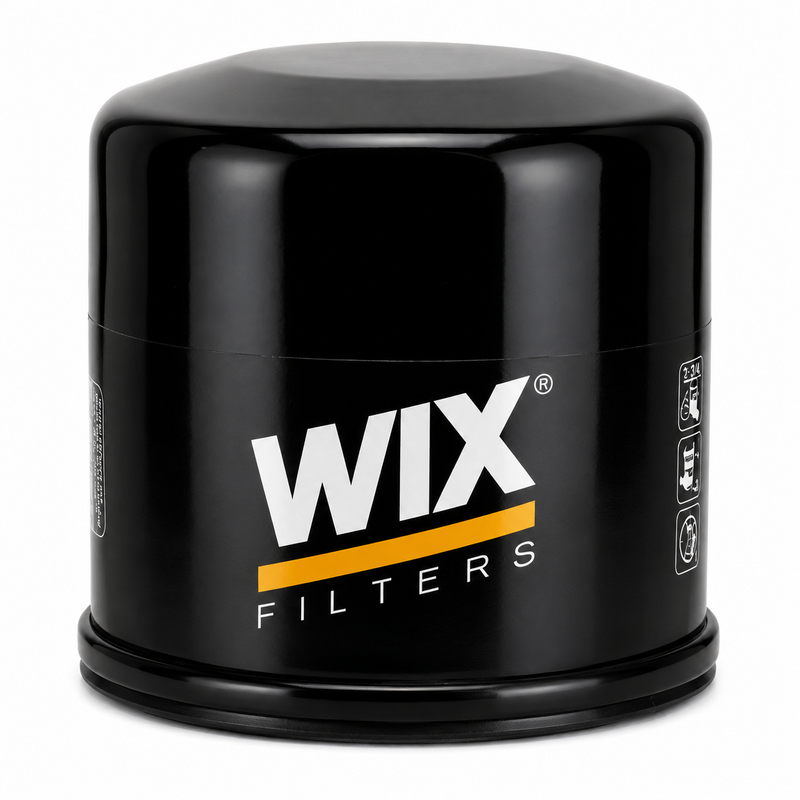

WIX Oil Filter 51365 – Honda Marine, Tohatsu & Yanmar Diesel
The WIX 51365 is a compact, full-flow spin-on lubricating oil filter used in select marine outboards, Yanmar diesel engines, and numerous automotive, industrial, and equipment applications. Its enhanced-cellulose media captures damaging contaminants while maintaining the oil flow needed to protect bearings and other lubricated engine components.
The filter measures approximately 2.58 inches high by 2.69 inches in diameter and uses an M20 × 1.5 mounting thread. It includes an anti-drainback valve and an internal bypass valve to help maintain lubrication during startup and when filter restriction increases.
Key Features
- Full-flow spin-on lubricating oil filter
- Enhanced-cellulose filtration media
- Nominal filtration rating: 21 microns
- Thread size: M20 × 1.5
- Height: approximately 2.58 in / 66 mm
- Outside diameter: approximately 2.69 in / 68 mm
- Rated maximum flow: approximately 9–11 GPM
- Bypass-valve setting: 8–11 psi
- Integrated anti-drainback valve
- Burst-pressure rating: 300 psi
- Attached sealing gasket
- WIX Part Number: 51365
- UPC: 765809513655
Engine Compatibility
WIX catalogue applications associate the 51365 with select marine and industrial engines, including:
- Honda Marine BF20, BF25, BF30, BF35, BF40, BF45, and BF50 outboards
- Tohatsu MFS 9.9, 15, 18, 25, and 30 outboards
- Yanmar Marine Diesel 3JH2E, 3JH2TE, 3JH3E-YEU
- Select Yanmar 2TNE, 3TNE, 3TNV, and related compact diesel engines
- Select Kubota, John Deere, Kawasaki, and industrial equipment applications
Application coverage can vary by engine year, serial number, and installed filter head.
Fitment Notice
Confirm the number printed on the existing filter or verify the engine model and serial number before ordering. Engines within the same horsepower or model family may use different oil filters depending on production year and regional specification. Do not select this filter by its M20 × 1.5 thread alone — filter height, gasket dimensions, bypass pressure, and anti-drainback-valve requirements must also match the engine’s lubrication system.
When to Replace
Replace the oil filter whenever the engine oil is changed or at the service interval specified by the engine manufacturer. More frequent replacement may be appropriate for engines exposed to extended trolling or low-speed operation, frequent short operating cycles, high loads or elevated operating temperatures, fuel dilution, moisture or oil contamination, long periods of seasonal storage, or internal engine repairs. Replace the filter immediately if its housing is dented, heavily corroded, or leaking.
Installation Notes
Remove the old filter and confirm its sealing gasket has not remained on the mounting surface. Clean the filter head and lightly lubricate the new gasket with clean engine oil. Install by hand to the manufacturer’s tightening specification — do not overtighten. After installation: refill with the specified oil, start the engine and verify normal oil pressure, inspect for leakage, shut down and allow oil to settle, then recheck and correct the oil level.
Cross-Reference Numbers
- NAPA Gold 1365 / WIX 51365XP
- Baldwin B1400
- Donaldson P502062
- Fleetguard LF3692
- FRAM PH3593A
- Purolator L14459
- Honda 15400-ZZ3-003
- Tohatsu 3R007-6150M
- Yanmar 119305-35150 / 119305-35151 / 119305-35160 / 119305-35170
- Sierra 18-79111
Cross-reference numbers are comparison aids only. Confirm the exact engine application and filter specifications before substituting brands.
Other WIX Filters
- WIX Oil Filter 51806
- WIX Oil Filter 51629 – Lister/Petter
- WIX Hydraulic Filter 51551 – 10 Micron
- WIX Oil Filter 51515 – Ford Marine
- WIX Oil Filter 51061 – GM Tall
- WIX Oil Filter 51083
- WIX Oil Filter 51361
Parts Desk Insights
The WIX 51365 fits several popular marine applications, but its compact size is shared by many filters with different internal specifications. Matching the old filter number and engine serial number is safer than ordering by thread size or outside appearance. The Yanmar OEM cross-references listed above are particularly useful for confirming fitment on Yanmar marine diesels.
