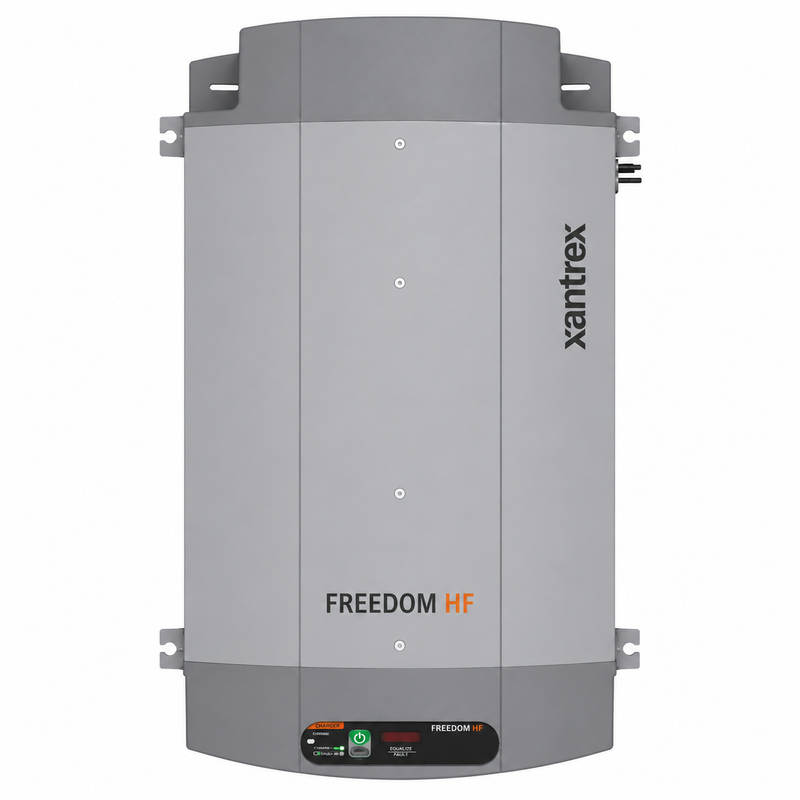

Xantrex 8061020 Freedom HF Inverter/Charger, 1000W, 12V, 20A

The Xantrex Freedom HF 1000 combines a 1,000-watt modified sine wave inverter, a 20-amp three-stage battery charger and a 30-amp automatic AC transfer relay in one compact unit. Designed for nominal 12-volt electrical systems, it supplies 115-volt AC power from the battery bank and automatically switches to shore or generator power when an acceptable external AC source becomes available. Xantrex identifies the Freedom HF for boats, recreational vehicles, commercial trucks and specialty vehicles.

Key Features

• 1,000 watts of continuous modified sine wave AC output
• Up to 2,000 watts of surge output for compatible startup loads
• Integrated 20-amp battery charger
• Built-in 30-amp automatic transfer relay
• Three-stage battery charging
• Selectable flooded, AGM, gel and fixed 13.5-volt charging settings
• Temperature-sensitive charging control
• Dual GFCI-protected AC receptacles
• Supports hardwired AC input and output installations
• Quick-connect AC terminals simplify installation
• Ignition-lockout capability helps prevent unwanted battery drain
• Detachable digital display can be mounted remotely
• AC and DC connections positioned on the same side of the enclosure
• Built-in overload, short-circuit, over-temperature and battery-voltage protection

Application Compatibility

The Freedom HF 1000 is suitable for nominal 12-volt systems in:

• Recreational and commercial boats
• Motorhomes and travel trailers
• Heavy-duty trucks
• Coaches and buses
• Mobile service vehicles
• Work trucks
• Specialty and emergency vehicles

Xantrex lists compatible load examples including refrigerators, blenders, laptops and mobile-device chargers. Total continuous demand and appliance startup requirements must remain within the inverter’s ratings.

Electrical Specifications

• Nominal DC input voltage: 12 volts
• DC operating range: 10.5–15.5 volts
• Continuous inverter output: 1,000 watts
• Surge output: 2,000 watts
• AC output voltage: 115 volts RMS, ±10 volts
• AC output frequency: 60 Hz
• Output waveform: Modified sine wave
• Full-load efficiency: Greater than 80%
• Peak efficiency: Greater than 87%
• No-load input power while producing AC: Less than 10 watts
• Off-mode current draw with display off: Less than 1 mA
• Battery-charger output: 20 amps
• Selectable charger-current settings: 2, 5, 10 or 20 amps
• AC charger input range: 90–130 volts
• Maximum AC input while charging: 5 amps
• Automatic transfer-relay rating: 30 amps
• Low-battery cut-out range: 10.5–11.8 volts
• Default bulk-charge voltage: 14.2 volts DC
• Default float-charge voltage: 13.5 volts DC
• Battery-charge outputs: One
• Charge control: Three-stage
• Equalisation function: Not included

Battery Compatibility

The Freedom HF 1000 includes selectable charging settings for:

• Flooded lead-acid batteries
• AGM batteries
• Gel batteries
• Fixed 13.5-volt applications

This model does not include a dedicated lithium charging profile. Battery voltage, charging requirements and battery-management-system compatibility must be confirmed before use with a lithium battery bank.

Dimensions and Weight

• Height: 4.2 inches / 106 mm
• Width: 9.5 inches / 241 mm
• Length: 15.5 inches / 393 mm
• Net weight: 10 lb / 4.5 kg
• Recommended operating-temperature range: 0°C to 40°C
• Warranty: Two years

Certification and Marine Installation Notice

The Freedom HF is ETL certified to CSA C22.2 No. 107.1 and UL 458. Compliance with the UL 458 Marine Supplement requires Xantrex drip shield part number 808-1050.

Marine installation must follow the Xantrex installation guide and applicable requirements for conductor sizing, battery overcurrent protection, grounding, AC wiring, ventilation and equipment location.

Fitment Notice

The Freedom HF 1000 is designed for a nominal 12-volt battery bank and must not be connected to a 24-volt system.

This unit produces modified sine wave power rather than true sine wave power. Some variable-speed tools, electronically controlled appliances, small battery chargers, lighting equipment and sensitive electronics may not operate correctly and could be damaged. Confirm modified sine wave compatibility with the equipment manufacturer before connection.

At full output, the inverter can draw approximately 90 amps or more from the 12-volt battery bank after conversion losses are considered. Battery capacity, conductor size, cable length, terminal hardware, fuse rating and disconnect capacity must be selected for the actual installation.

When This Product Needs Replacement

Inspect or replace the inverter/charger if it:

• Repeatedly shuts down under loads it previously supported
• Fails to transfer correctly between external AC and inverter power
• No longer charges a verified serviceable battery bank
• Produces recurring overload, low-voltage or over-temperature faults
• Has damaged AC receptacles, DC terminals or communication connections
• Shows evidence of overheating, moisture intrusion or internal corrosion
• Has an unreadable or unresponsive display

Before replacing the unit, test the battery bank, incoming AC supply, DC cable voltage drop, external fuses, circuit breakers and terminal connections. Weak batteries or undersized conductors can produce symptoms similar to inverter failure.

Installation Notes

Install the Freedom HF in a dry, ventilated location protected from water, battery gases, excessive heat and fuel vapours. Use correctly sized marine-grade DC conductors, properly rated overcurrent protection and an accessible battery disconnect.

The unit may supply loads through its dual GFCI receptacle or be integrated into a hardwired AC system. Follow the Xantrex installation guide for mounting orientation, AC input and output wiring, chassis grounding, battery protection and ventilation clearance.

The detachable display can be moved to a more accessible location using a compatible communication cable. Install marine drip shield 808-1050 when required for UL 458 Marine Supplement compliance.

Compatible Accessories

• Xantrex Freedom HF Remote Control Panel – 808-1840
• Xantrex 25-foot six-conductor remote cable – 31-6257-00
• Xantrex 50-foot six-conductor remote cable – 31-6262-00
• Xantrex Marine Drip Shield – 808-1050

Alternate Part Numbers

• Xantrex manufacturer part number: 806-1020
• Unhyphenated catalogue reference: 8061020
• Distributor catalogue reference: 262-8061020
• Product model: Freedom HF 1000
• UPC: 715535890414
