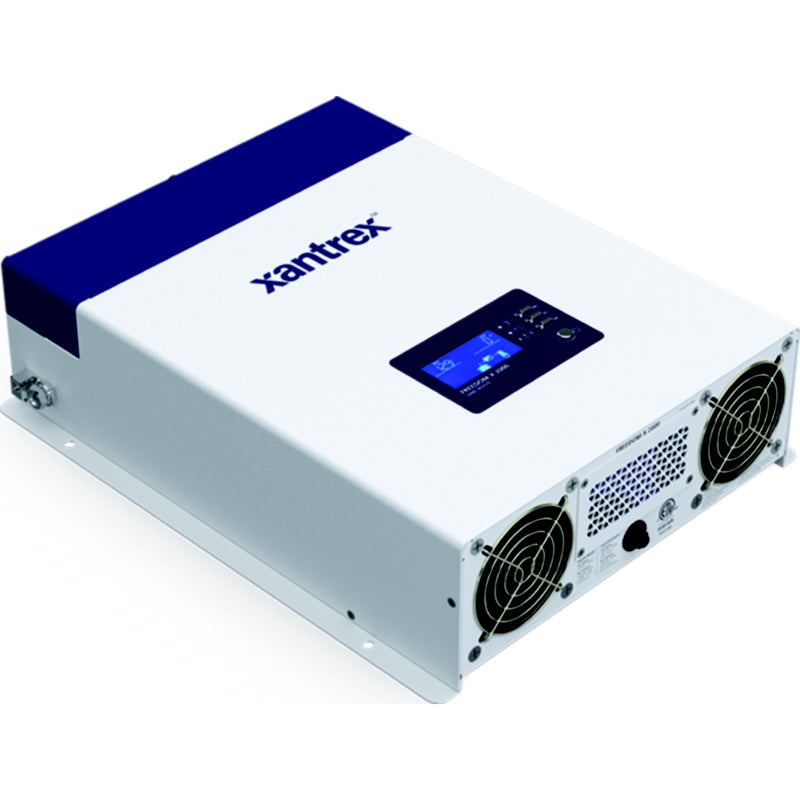

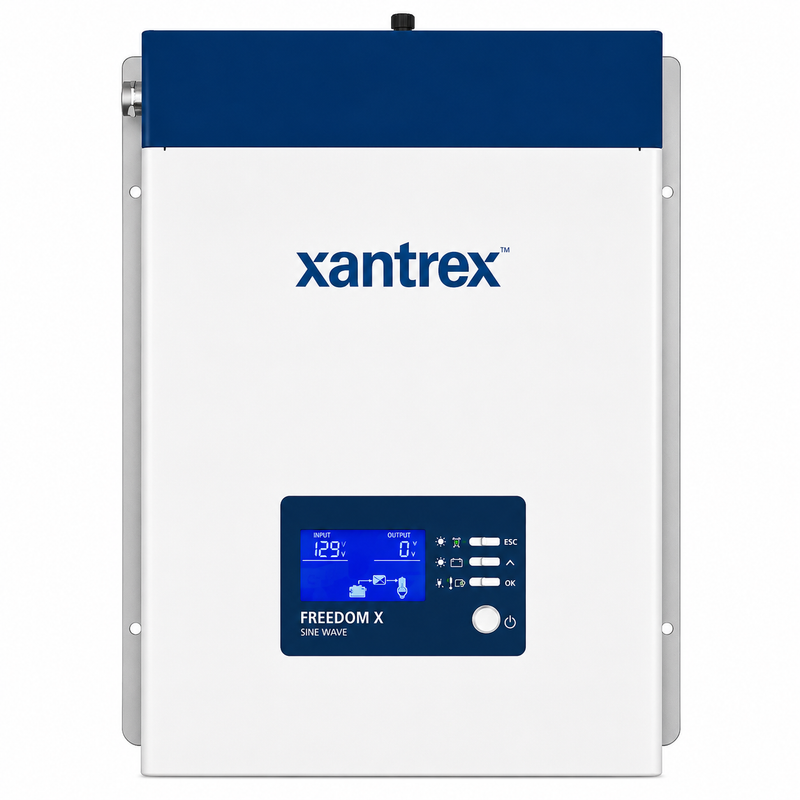

Xantrex 8171000 Freedom X Power Inverter, 1000W, 12V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Xantrex Freedom X 1000 is a compact 12-volt true sine wave inverter designed to supply clean 120-volt AC power aboard boats, recreational vehicles, commercial trucks and specialty vehicles. It produces 1,000 watts of continuous output at temperatures up to 40°C, delivers up to 2,000 watts of surge power and includes an automatic 30-amp AC transfer relay for hardwired systems connected to shore power or another external AC source.
Key Features
- Produces 1,000 watts of continuous true sine wave AC power
- Delivers up to 2,000 watts of surge power for starting compatible loads
- Designed for nominal 12-volt battery systems
- Selectable 108, 110 or 120-volt AC output
- Configurable 50 or 60 Hz output frequency
- Integrated 30-amp automatic AC transfer relay
- Ignition-control input can turn the inverter off when the vehicle ignition is switched off
- Supports optional Bluetooth, wired remote and system-integration accessories
Application Compatibility
Designed for 12-volt electrical systems requiring dependable onboard AC power, including:
- Recreational and commercial marine electrical systems
- Motorhomes, travel trailers and camper vans
- Heavy-duty and commercial trucks
- Mobile service and work vehicles
- Specialty and emergency vehicles
- Off-grid systems using a 12-volt battery bank
Xantrex identifies laptops, televisions and blenders as typical loads for the Freedom X 1000. This is a standalone inverter and does not include an integrated battery charger.
Electrical Specifications
- Nominal DC input voltage: 12 volts
- Continuous inverter output: 1,000 watts at 40°C
- Continuous AC output current: 8.4 amps
- Surge output: 2,000 watts
- Output waveform: True sine wave
- Selectable AC output voltage: 108, 110 or 120 volts
- Selectable frequency: 50 or 60 Hz
- AC operating input range: 85–140 volts
- Maximum safe non-operating AC voltage: 240 volts
- Maximum non-operating DC voltage: 25.2 volts
- Nominal DC current at full load: 100 amps
- Peak inverter efficiency: 91%
- Full-load efficiency: 87.5% or greater
- Transfer relay rating: 30 amps
Dimensions and Weight
- Dimensions without mounting flanges: 13.4 × 9.1 × 3.7 inches
- Dimensions with mounting flanges: 13.4 × 10.3 × 3.7 inches
- Metric dimensions without flanges: 340 × 232 × 95 mm
- Metric dimensions with flanges: 340 × 262 × 95 mm
- Net weight: 11.5 lb / 5.2 kg
- Operating temperature: -20°C to 60°C
- Full rated output through 40°C, with output derated above 40°C
- Operating humidity: 5–95% non-condensing
Certification and Marine Installation Notice
The Freedom X 1000 is ETL listed to CSA 107.1, UL 458 and the UL 458 Marine Supplement. Xantrex specifies drip shield part number 808-1050 when UL 458 Marine Supplement compliance is required. Marine installations must also follow applicable ABYC E-11 and A-31 requirements for conductor sizing, grounding, overcurrent protection, ventilation and equipment placement.
Fitment Notice
Confirm that the installation uses a nominal 12-volt battery bank and that the connected AC loads remain within the inverter’s 1,000-watt continuous and 2,000-watt surge ratings. At full output, the inverter draws approximately 100 amps from the DC system before allowing for cable and installation losses, so battery capacity, conductor size, fuse protection and cable length must be considered before installation.
When This Product Needs Replacement
Inspect or replace the inverter if it repeatedly shuts down under loads it previously supported, fails to transfer correctly between external AC and inverter power, produces recurring low-voltage, overload or over-temperature faults, or shows evidence of overheated terminals, corrosion or internal electrical failure.
Test the battery bank, DC cable voltage drop, AC input and external circuit protection before replacing the inverter. Weak batteries, loose connections and undersized conductors can produce symptoms similar to inverter failure.
Installation Notes
Install the inverter in a dry, ventilated location protected from water, excessive heat and fuel vapours. Use appropriately sized marine-grade DC conductors, a correctly rated battery fuse and an accessible battery disconnect. Keep DC cable runs as short as practical and follow the Xantrex installation instructions for mounting orientation, grounding, ventilation and AC wiring.
Xantrex offers compatible cable kits with flexible copper-stranded conductors and an appropriately sized inline fuse assembly for supported Freedom X installations.
Compatible Accessories
- Xantrex Freedom X Bluetooth Remote Panel – 808-0817-02
- Xantrex Freedom X/XC Wired Remote Panel with 25-foot cable – 808-0817-01
- Xantrex GFCI Option – 808-9817
- Xantrex Marine Drip Shield – 808-1050
- Xantrex 25-foot communication cable – 31-6257-00
- Xantrex 50-foot communication cable – 31-6262-00
- Xantrex Freedom X Marine Combox – 808-0822-01
Alternate Part Numbers
- Standard hardwired 12-volt model: 817-1000
- Model with built-in GFCI: 817-1000-11
- Unhyphenated catalogue reference: 8171000
Parts Desk Insight
The Freedom X 1000 is an inverter-only model. If the installation also requires battery charging, the Freedom XC 1000 (817-1050) adds a 50-amp multistage charger in a similar form factor. If higher AC output is needed, the Freedom X 2000 (817-2000) doubles the continuous wattage. Confirm whether the installation requires AC inversion alone or a combined inverter/charger before ordering.
