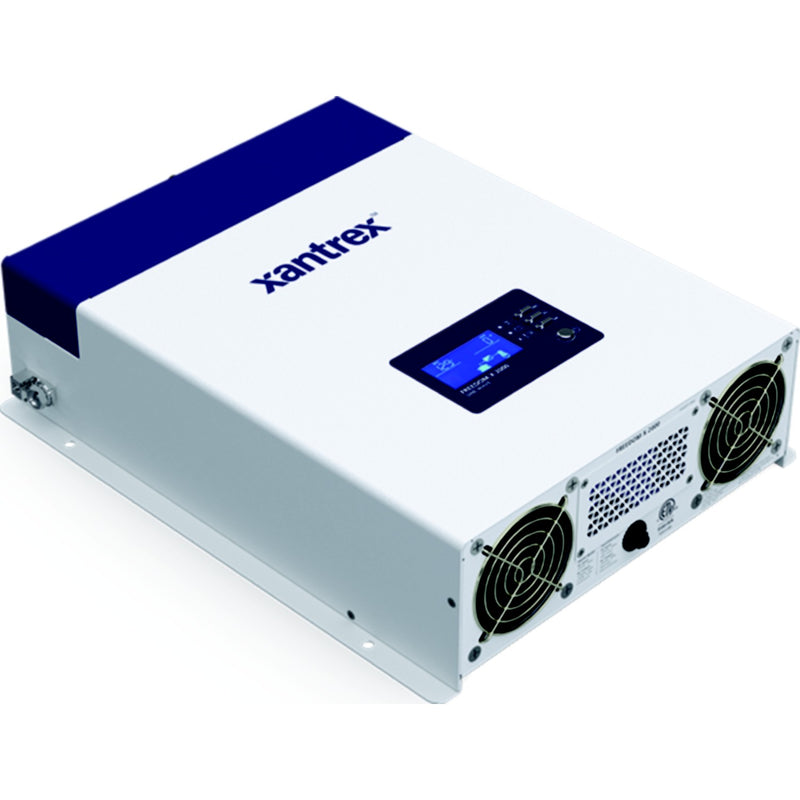

Xantrex 8172000 Freedom X Power Inverter, 2000W, 12V

The Xantrex Freedom X 2000 is a compact 12-volt true sine wave inverter designed to supply clean 120-volt AC power aboard boats, recreational vehicles, commercial trucks and specialty vehicles. It produces 2,000 watts of continuous output at temperatures up to 40°C, delivers up to 4,000 watts of surge power for five seconds and includes an automatic 30-amp AC transfer relay for systems connected to shore power or another external AC source.

Key Features

• Produces 2,000 watts of continuous true sine wave AC power
• Delivers up to 4,000 watts of surge power for five seconds
• Designed for nominal 12-volt DC battery systems
• True sine wave output supports sensitive electronics and motor-driven appliances
• Selectable 108, 110 or 120-volt AC output
• Configurable 50 or 60 Hz output frequency
• Integrated 30-amp automatic AC transfer relay
• Quick-connect AC input and output terminals simplify hardwired installation
• Ignition-control input can turn the inverter off with the vehicle ignition
• Supports optional Bluetooth, wired remote and network-integration accessories

Application Compatibility

Designed for 12-volt electrical systems requiring dependable onboard AC power, including:

• Recreational and commercial marine electrical systems
• Motorhomes, travel trailers and camper vans
• Heavy-duty and commercial trucks
• Mobile service and work vehicles
• Specialty and emergency vehicles
• Off-grid systems using a 12-volt battery bank

The Freedom X 2000 can operate compatible refrigerators, microwaves, televisions, laptops, blenders, coffee makers and other appliances within its continuous and surge ratings. This is a standalone inverter and does not include an integrated battery charger.

Electrical Specifications

• Nominal DC input voltage: 12 volts
• Continuous inverter output: 2,000 watts at 40°C
• Continuous AC output current: 16.7 amps
• Surge output: 4,000 watts for five seconds
• Output waveform: True sine wave
• Selectable AC output voltage: 108, 110 or 120 volts
• Selectable output frequency: 50 or 60 Hz
• AC operating input range: 85–140 volts
• Maximum safe non-operating AC voltage: 240 volts
• Maximum non-operating DC voltage: 25.2 volts
• Nominal DC current at full load: 192 amps
• Peak inverter efficiency: 91%
• Full-load efficiency: 87.5% or greater
• Transfer relay rating: 30 amps

Dimensions and Weight

• Dimensions without mounting flanges: 14.6 × 10.8 × 3.9 inches
• Dimensions with mounting flanges: 14.6 × 12 × 3.9 inches
• Metric dimensions without flanges: 370 × 275 × 100 mm
• Metric dimensions with flanges: 370 × 305 × 100 mm
• Net weight: 14.7 lb / 6.7 kg
• Operating temperature: -20°C to 60°C
• Full rated output through 40°C, with output derated above 40°C

Certification and Marine Installation Notice

The Freedom X 2000 is ETL listed to CSA 107.1, UL 458 and the UL 458 Marine Supplement. Xantrex specifies drip shield part number 808-1050 for installations requiring compliance with the UL 458 Marine Supplement. Marine installations must also follow applicable ABYC electrical requirements for conductor sizing, grounding, circuit protection, ventilation and equipment placement.

Fitment Notice

Confirm that the vessel or vehicle uses a nominal 12-volt battery bank. This model must not be confused with the 24-volt Freedom X 2000 (817-2000-21), because the two versions are not electrically interchangeable.

At full inverter output, the 817-2000 draws approximately 192 amps from the 12-volt battery system before allowing for installation losses. Confirm that the battery bank, DC cables, fuse, disconnect and charging system can support the expected continuous and surge loads.

When This Product Needs Replacement

Inspect or replace the inverter if it repeatedly shuts down under loads it previously supported, fails to transfer correctly between external AC and inverter power, produces recurring low-voltage, overload or over-temperature faults, or shows evidence of corrosion, overheated terminals or internal electrical failure.

Test the battery bank, DC cable voltage drop, shore-power input and external circuit protection before replacing the inverter. Weak batteries, loose connections and undersized conductors can produce symptoms similar to inverter failure.

Installation Notes

Install the inverter in a dry, ventilated location protected from water, excessive heat and fuel vapours. Use appropriately sized marine-grade DC conductors, a correctly rated battery fuse and an accessible battery disconnect. Keep DC cable runs as short as practical and follow the Xantrex installation guide for mounting orientation, ventilation, grounding and AC wiring.

A 2,000-watt inverter places a substantial demand on a 12-volt battery bank. Cable sizing and overcurrent protection must be based on the inverter’s DC current requirement rather than AC output current alone.

Compatible Accessories

• Xantrex Freedom X Bluetooth Remote Panel – 808-0817-02
• Xantrex Freedom X/XC Wired Remote Panel with 25-foot cable – 808-0817-01
• Xantrex GFCI Option – 808-9817
• Xantrex Marine Drip Shield – 808-1050
• Xantrex 25-foot communication cable – 31-6257-00
• Xantrex 50-foot communication cable – 31-6262-00
• Xantrex Freedom X Marine Combox for NMEA 2000 integration – 808-0822-01

Alternate Part Numbers

• Standard 12-volt hardwired model: 817-2000
• 12-volt model with built-in GFCI: 817-2000-11
• Unhyphenated catalogue reference: 8172000
• Similar 24-volt model: 817-2000-21 — not interchangeable

Parts Desk Insight

The Freedom X 2000 is an inverter only. If the installation also requires battery charging, the Freedom XC 2000 (817-2080) adds an integrated 80-amp charger in the same form factor. Also verify battery-bank voltage carefully: Xantrex offers both 12- and 24-volt Freedom X 2000 models, and the 24-volt version (817-2000-21) is not interchangeable with this unit.
