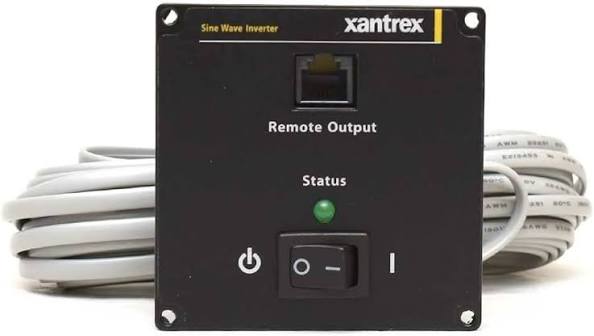

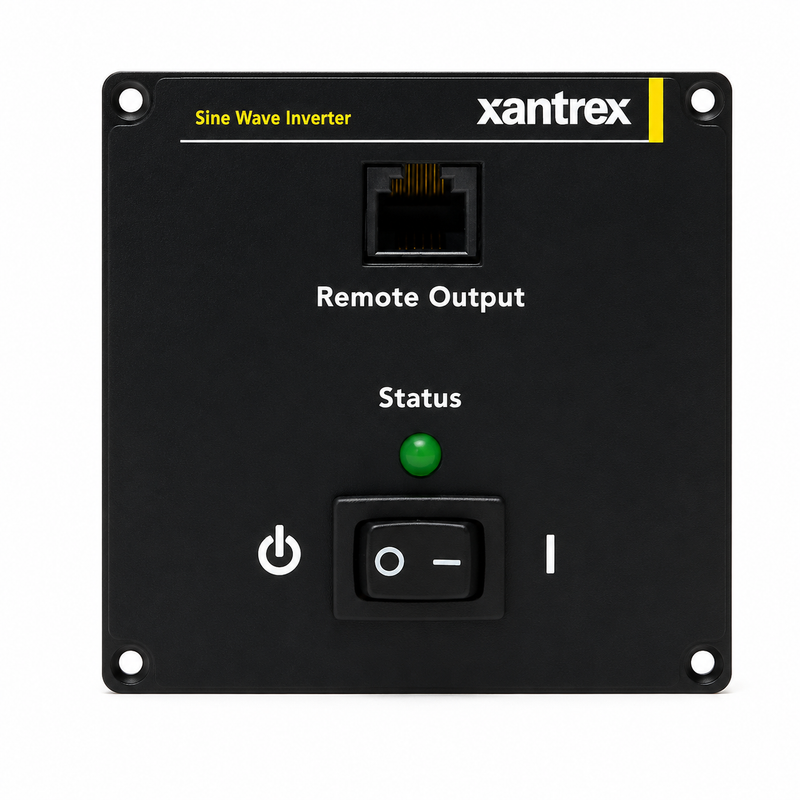

Xantrex PROsine Remote Interface Kit 808-1800
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Xantrex PROsine Remote Interface Kit – 808-1800
Product Description
The Xantrex PROsine Remote Interface Kit allows the removable LCD display supplied with a compatible PROsine inverter to be installed in a more convenient monitoring and control location. Designed for PROsine 1000 and PROsine 1800 inverters, the kit lets the existing display be moved away from the inverter enclosure while retaining access to inverter controls, operating status and electrical information.
Key Features
- Genuine Xantrex PROsine accessory
- Manufacturer part number 808-1800
- Compatible with PROsine 1000 and 1800 inverters
- Allows the inverter's removable LCD panel to be mounted remotely
- Uses the display originally supplied with the inverter
- Provides convenient access to inverter control and operating information
- Suitable for marine, RV, commercial-vehicle and specialty-vehicle installations
- Supports installations where the inverter is mounted in a protected or difficult-to-access compartment
Product Compatibility
Designed for use with compatible Xantrex PROsine models, including:
- PROsine 1000 – 12V, part number 806-1000
- PROsine 1800 – 12V GFCI, part number 806-1800
- PROsine 1800 – 12V hardwire with transfer relay, part number 806-1802
- PROsine 1800 – 24V GFCI, part number 806-1850
- PROsine 1800 – 24V hardwire, part number 806-1851
- PROsine 1800 – 24V hardwire with transfer relay, part number 806-1852
Xantrex also lists the 808-1800 remote interface kit for compatible international PROsine 1000i and 1800i inverter models.
Display Functions
When connected to the inverter's original LCD display, the remote installation provides access to information such as:
- DC input voltage
- DC current
- AC output power
- Inverter operating status
- Fault and warning information
- Inverter control settings
Available information depends on the connected PROsine inverter and its original display module.
Fitment Notice
This is a remote-interface mounting kit, not a complete replacement LCD display. It is intended to relocate the removable display supplied with the compatible PROsine inverter.
Verify the inverter model and part number before ordering. It is not designed for Freedom, PROwatt, XPower or other Xantrex inverter families unless specifically listed by Xantrex.
Do not confuse this kit with the Xantrex 808-1802 Remote LCD Panel, which is listed as a separate PROsine accessory.
Installation Notes
Remove the existing LCD display from the inverter and install it in the desired remote location using the interface kit. Select a mounting position that is:
- Dry and protected from spray
- Easily visible and accessible
- Away from excessive heat
- Protected from physical damage
- Within the permitted communication-cable distance
Disconnect inverter and battery power before removing the display or connecting the remote-interface wiring. Follow the Xantrex installation instructions for cable routing, mounting dimensions and connector orientation.
When This Product Needs Replacement
Inspect or replace the interface kit if:
- The remote display operates intermittently
- Display information becomes unavailable despite a functioning inverter
- The communication cable or connectors are damaged
- Connector contacts show corrosion or moisture intrusion
- The mounting enclosure is cracked or no longer secures the display
- Controls respond inconsistently from the remote location
Before replacing the kit, inspect the display module, cable connections and inverter communication port.
Included Components
The kit is intended to provide the interface components required to remotely mount the inverter's existing LCD display. The original removable PROsine display is normally supplied with the inverter and is not identified as a separate included display in this kit.
Alternate Part Numbers
- Xantrex part number: 808-1800
- Unhyphenated reference: 8081800
- Product name: PROsine Remote Interface Kit
- Alternate description: PROsine Remote Interface Panel
- UPC: 715535818005
Related Accessories
- Xantrex 808-1802 Remote LCD Panel – Separate remote panel accessory for compatible PROsine inverters
- Xantrex Remote Panel with 25 ft Cable (808-0817-01) – Remote panel with extended cable
Parts Desk Insight
This kit is useful when the inverter must be installed in a ventilated machinery space, electrical compartment or other protected area where its built-in display would be difficult to reach. It relocates the original display rather than adding a second independent control panel, so confirm that the inverter's removable LCD module is present and operational before ordering.
