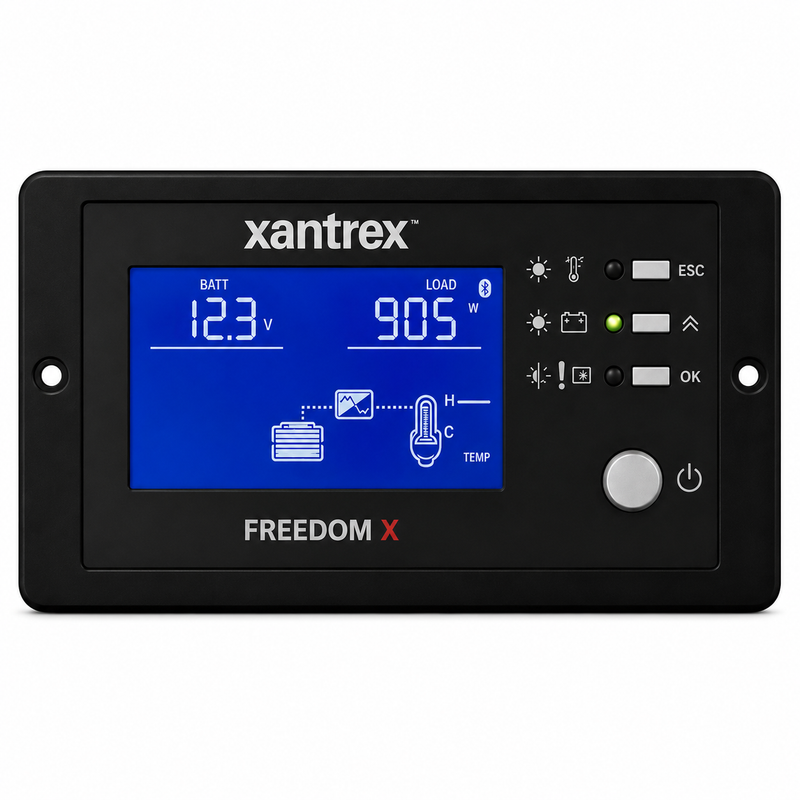

Xantrex 808081702 Freedom X Bluetooth Remote Panel
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

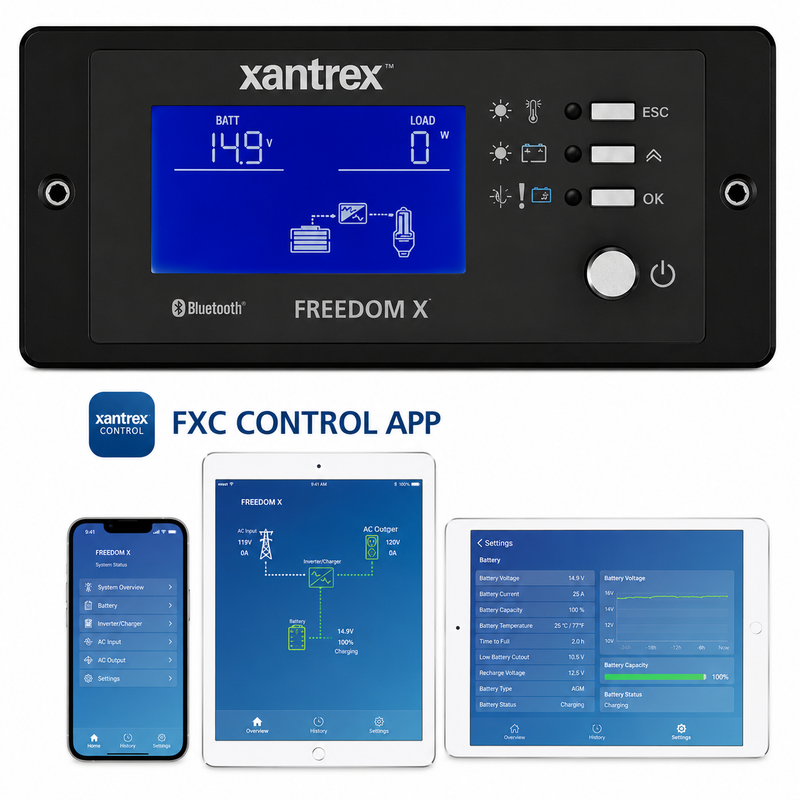

The Xantrex Freedom X Bluetooth Remote Panel provides convenient remote control and wireless monitoring for compatible Freedom X inverters and Freedom XC and XC Pro inverter/chargers. Once connected to the inverter and paired with the Xantrex FXC Control app, it allows users to review operating information, adjust supported settings and read system fault codes from a compatible smartphone or tablet.
Key Features
- Provides remote inverter or inverter/charger control from an accessible location
- Adds Bluetooth communication for use with the Xantrex FXC Control app
- Displays key input and output operating information
- Allows supported operating parameters and configuration settings to be adjusted
- Displays active fault and error codes for easier troubleshooting
- Suitable for marine, RV, heavy-truck, work-truck and specialty-vehicle systems
- Compatible with existing supported Freedom X and Freedom XC installations
- Uses Xantrex communication cabling rather than a Xanbus network connection
Product Compatibility
Xantrex lists part number 808-0817-02 as compatible with the following North American models:
Freedom X Inverters
- Freedom X 1000 – 817-1000
- Freedom X 2000 – 817-2000
- Freedom X 2000 24V – 817-2000-21
- Freedom X 3000 – 817-3000
Freedom XC Inverter/Chargers
Freedom XC Pro Inverter/Chargers
The panel also supports compatible 230-volt, 50 Hz Freedom X, XC and XC Pro models where specified by Xantrex.
FXC Control App Functions
When paired with the Bluetooth remote panel, the FXC Control app can display or manage supported information such as:
- AC input and output voltage
- AC input and output current
- Input and output frequency
- Inverter operating status
- Battery and charging information on compatible inverter/charger models
- Connected-load information
- Configuration parameters
- Fault and error codes
- Low-battery and AC-overload conditions
Available settings and displayed information depend on the connected Freedom X, XC or XC Pro model.
Fitment Notice
Confirm the exact Xantrex inverter or inverter/charger model before ordering. This panel is designed for supported Freedom X-family products and is not a universal Bluetooth remote for Freedom SW, Freedom 458, PROwatt SW or unrelated Xantrex equipment.
The panel requires a physical communication connection to the supported inverter. Bluetooth provides the wireless connection between the remote panel and the mobile device; it does not eliminate the communication cable between the panel and inverter.
When This Product Needs Replacement
Inspect or replace the Bluetooth remote panel if:
- The display or control buttons no longer operate
- The panel repeatedly loses communication with a known-good inverter
- A compatible phone or tablet can no longer detect the panel through Bluetooth
- The FXC Control app cannot retrieve supported system information
- The communication connector or housing is physically damaged
- Moisture intrusion or terminal corrosion is visible
- Firmware updates repeatedly fail despite using the correct procedure
- See Video: Here
Before replacing the panel, inspect the communication cable, connectors, mobile-device Bluetooth settings, app permissions and inverter firmware.
Installation Notes
Mount the panel in a dry, accessible location where its display and controls can be reached easily. Route the communication cable away from sharp edges, high-temperature surfaces, ignition wiring and areas where it could be crushed or exposed to water.
After installation, pair the remote panel with a compatible smartphone or tablet through the Xantrex FXC Control app. Follow the current Xantrex owner's guide when updating remote-panel firmware or changing inverter and charger parameters.
Related Accessories
- Freedom X/XC wired remote panel with 25-foot cable – 808-0817-01
- Xantrex 25-foot communication cable – 31-6257-00
- Xantrex 50-foot communication cable – 31-6262-00
- Freedom X Marine Combox – 808-0822-01
Alternate Part Numbers
- Xantrex manufacturer part number: 808-0817-02
- Unhyphenated catalogue reference: 808081702
- Product name: Freedom X Bluetooth Remote Panel
Parts Desk Insight
This Bluetooth panel is the appropriate option when a compatible Freedom X-family system needs both a physical remote control and mobile-device monitoring. The standard 808-0817-01 wired remote provides local control but does not provide the same Bluetooth app functionality.
