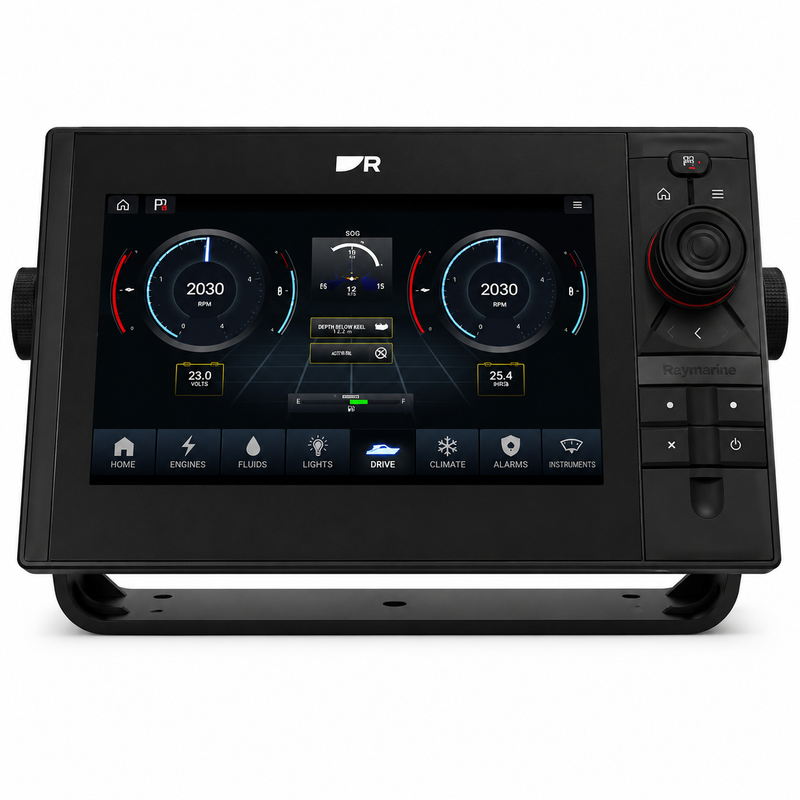

Raymarine Axiom 2 Pro 9" RVM – HybridTouch Chartplotter & Fishfinder
The Axiom 2 Pro 9" RVM packs serious dual-sonar capability into a compact 9-inch HybridTouch display — making it one of the most capable mid-size multifunction displays available for coastal and offshore fishing. Operate it by touch or physical keypad, and run two independent sonar channels simultaneously: RealVision MAX imaging sonar and a dedicated 1kW CHIRP channel for deep-water bottom fishing.
Built on Raymarine’s 6-core LightHouse platform with LightHouse North America charts included, it integrates seamlessly with radar, autopilot, AIS, cameras, and your full onboard network.
Display & Performance
- 9" HD IPS optically bonded display — touchscreen and physical keypad (HybridTouch)
- 1280 x 720 resolution
- 6-core processor
- Built-in Wi-Fi and Bluetooth
- IPX6 / IPX7 waterproof rating
- Operating voltage: 12/24V (8–32 Vdc), 30W power consumption
Sonar Capability
- RealVision MAX port (25-pin): High CHIRP, DownVision, SideVision & RealVision 3D — 600W RMS output
- 1kW CHIRP port (11-pin): Dual-channel broadband CHIRP for deep-water performance — 1kW RMS output
- Both sonar channels operate simultaneously
Connectivity & Integration
- NMEA 2000 / SeaTalkng via DeviceNet connector
- Two RayNet Ethernet ports for network expansion
- Compatible with Raymarine radar, autopilot, AIS, cameras, and VHF
- LightHouse North America charts included
Dimensions
- 11.78" W x 6.84" H x 9.25" D (depth includes rear cables)
Compatible Transducers
A transducer is required and sold separately. For RealVision MAX imaging sonar, pair with the RV-212 Bronze Thru-Hull Pair, RV-312 Plastic Thru-Hull Pair (12"), or RV-320 Plastic Thru-Hull Pair (20"). For the 1kW CHIRP port, a compatible 1kW transducer is required — contact us to confirm the right match for your hull and target depth.
Also Consider
- Axiom 2 Pro 12" RVM — same dual-sonar capability on a larger 12" screen
- Axiom 2 Pro 9" S — 9" display with High CHIRP conical sonar, no RealVision MAX port
- Axiom 2 Pro 12" S — 12" display with High CHIRP conical sonar
Parts Desk Insights
The 9" RVM is the sweet spot for customers who want full RealVision 3D imaging sonar and a 1kW deep-water CHIRP channel but are working with a smaller helm or a tighter budget than the 12" RVM. It’s especially popular on center consoles, walkarounds, and mid-size sportfishing boats where helm space is at a premium. Key pre-sale checks: confirm the chart region is North America, verify the transducer plan for both sonar ports (the 25-pin RealVision MAX port and the 11-pin 1kW port are separate connections), and ensure the helm has adequate depth for rear cable clearance (~9.25" including cables).
