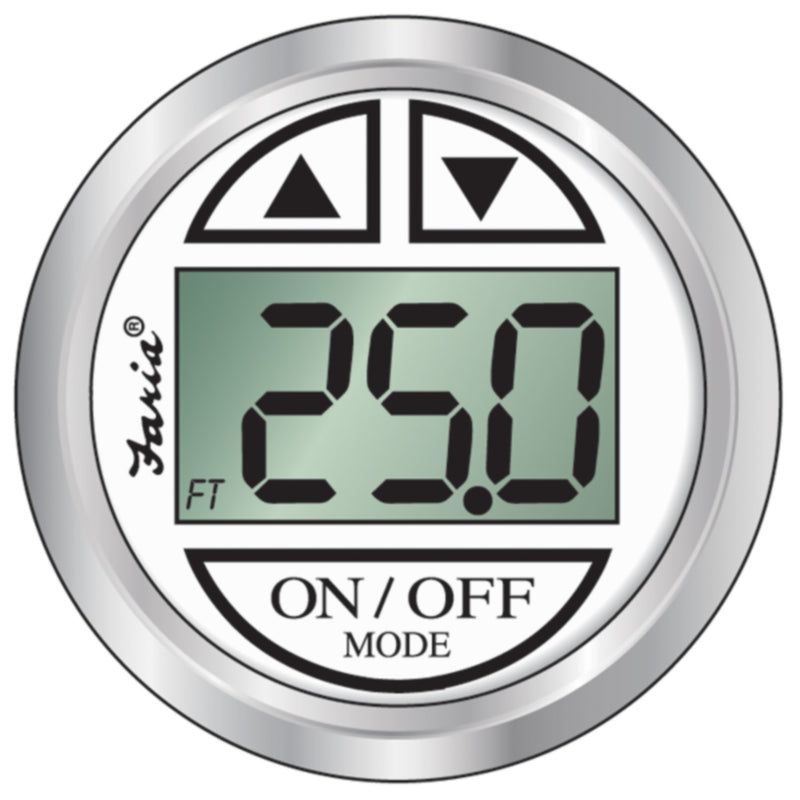

Faria Chesapeake SS White Digital Depth Sounder – Transom Mount Transducer Included (FAR 13850)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Reliable In-Dash Depth — Classic Chesapeake SS White Style
The Faria Chesapeake SS White FAR 13850 is a complete in-dash digital depth sounder with a transom-mount transducer, 20 feet of cable, and all mounting hardware included. It delivers clear, accurate depth readings to 199 feet in a standard 2-1/16" gauge format — with an oversized backlit display that's easy to read in any lighting condition, from bright sun to night operation.
The Chesapeake SS White face and stainless steel bezel give it a clean, classic look that integrates naturally into most powerboat, cruiser, and center console instrument panels.
Key Features
- Transom-Mount Transducer Included — Complete kit with transducer, 20 ft of cable, and mounting hardware; ready to install straight out of the box
- 199 ft Depth Range — Covers the full range of coastal, lake, and river recreational boating applications
- Oversized Backlit Display — Large, easy-to-read digits with backlighting for clear visibility in all conditions including direct sunlight and low-light night operation
- Deep and Shallow Water Alarms — Audible and visual alerts for both ends of the depth range; programmable to your preferred thresholds
- Programmable Keel Offset — Adjust the depth reading at the display to reflect true depth below the keel rather than below the transducer
- Automatic Gain Control — Automatically adjusts signal sensitivity for consistent depth readings across varying bottom types and water conditions
- Selectable Imperial or Metric Readout — Switch between feet and meters to suit your preference
- Standard 2-1/16" Gauge Hole — Drops into any standard instrument panel cutout; no custom fabrication required
- Chesapeake SS White Styling — Stainless steel bezel with white face; matches the full Faria Chesapeake SS gauge family for a cohesive dash appearance
Best Use Case
The FAR 13850 is the go-to depth sounder for powerboat, cruiser, and center console owners who want a clean, reliable in-dash depth gauge with a straightforward transom-mount installation. It's the most versatile installation option — compatible with any hull material including fiberglass, aluminum, and composite — making it the right choice when an in-hull transducer isn't suitable for your hull construction.
It's also the natural anchor piece for a Faria Chesapeake SS White instrument panel. Pair it with other gauges from the Faria Chesapeake SS 6-Gauge Inboard Set or the Faria Chesapeake SS 4-Gauge Outboard Set for a fully matched panel.
Prefer an in-hull installation to keep the transom clean? See the Faria Chesapeake SS White Depth Sounder – In-Hull (FAR 13851). Want depth plus dual temperature in one gauge? See the Faria Chesapeake SS Dual Temperature Depth Sounder (FAR 13852). For the Chesapeake Black style, see the Faria Chesapeake Black Depth Sounder – Transom Mount (FAR 13750). For the Euro Black style, see the Faria Euro Black Depth Sounder – Transom Mount (FAR 12850).
Parts Desk Insights
Best for: Boaters who want the simplest, most universally compatible depth sounder installation. The transom-mount transducer works on any hull material and doesn't require the hull compatibility testing that in-hull transducers demand. If you're unsure which transducer type is right for your boat, start here — it's the lowest-risk installation option in the Faria depth sounder lineup.
Transom placement: Mount the transducer on a flat, vertical section of the transom below the waterline, clear of strakes, the keel, and any exhaust outlets. Avoid areas with turbulence at speed. Most installations use the supplied bracket with stainless hardware — seal the mounting holes with marine-grade sealant to prevent water intrusion.
Keel offset setup: After installation, measure the distance from the transducer face to the bottom of the keel and program this value into the keel offset. This calibrates depth readings to reflect true clearance below the boat — an important step for accurate shallow-water navigation.
Cable routing: The included 20 ft of cable is sufficient for most single-engine powerboats. Plan your cable route from the transom to the dash before installation to confirm length and avoid routing near ignition wiring, which can cause interference.
Panel matching: The FAR 13850 uses the same Chesapeake SS White bezel and face as the rest of the Faria Chesapeake SS 2" gauge lineup — straightforward to integrate into an existing panel without mismatched styles.
