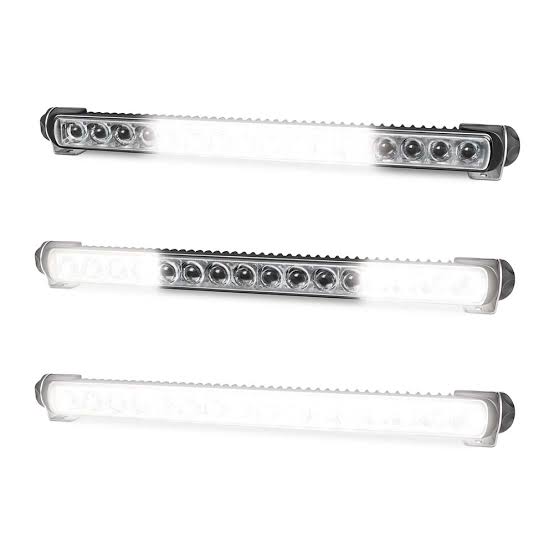

Hella Seahawk 470 LED Light Bar — Spread Lens, 30°×60° Beam, 20.86"
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Hella Seahawk 470 — Spread Lens LED Light Bar, 30°×60° Beam
The Hella Seahawk 470 Spread Lens trades center-punch reach for dramatically wider side coverage — its 30°×60° beam maintains the same 30° vertical height as the Spot, but doubles the horizontal width to 60°. The result is a broad, even wash of light that's highly effective for close-range situational awareness, particularly in confined or busy waterways where seeing what's to the sides matters as much as what's directly ahead.
Built on the same Seahawk 470 platform, it features a corrosion-proof housing, Grilamid® UV-resistant lens, and a polished 316 stainless steel bracket with an adjustable mounting system for upright or pendant installation. Pre-wired with 2.5m of bare-wire cable. IP67-rated and backed by a 5-year warranty.
Specifications
- Model: Seahawk 470
- Lens type: Spread
- Beam angle: 30° × 60° (H × W)
- Connector: Standard (bare wire, 2.5m cable included)
- Dimensions: 20.86" L × 1.73" H
- Power draw: 36W (high beam), 18W (Combi mode)
- Bracket: Polished 316 stainless steel
- Lens material: Grilamid® (UV resistant)
- Housing: Corrosion-proof
- Waterproof rating: IP67
- Mount options: Upright or pendant
- Warranty: 5 years
- SKU: 265-958130611
Best Use Case
The Spread Lens is the right choice when wide lateral visibility matters more than long-range throw — maneuvering through tight marina berths, docking in low-light conditions, or illuminating a broad deck or cockpit area. It's particularly effective mounted at the bow or helm when navigating confined waterways at slow speed. If you need both reach and width from a single bar, the Combi (Spot + Spread) is worth considering. For maximum long-range illumination in a narrow beam, the Spot Lens is the better fit.
Also Consider
- Hella Seahawk 470 — Wide Spread Diffused — even broader diffused coverage for deck and cockpit flood lighting
- Hella Seahawk 470 — Combi (Spread & Spot) — dual-beam: reach and width in one bar
- Hella Seahawk 470 — Spot Lens (30°×30°) — tighter beam for longer-range illumination
- Hella Seahawk 470 — Spot Lens, Deutsch Connector
- Browse all Marine Lighting
Parts Desk Insights
The Spread Lens (958130611) is the standard-width spread model; the Wide Spread Diffused (958130501) goes even broader with a diffused output — recommend the Wide Spread Diffused for pure flood/deck applications and the Spread for directional wide-angle work. The 30°×60° beam spec is the key differentiator to communicate to customers comparing this against the Spot (30°×30°): same vertical height, double the horizontal width, less center-punch intensity. As with all Seahawk 470 models, this is not a COLREGS-compliant navigation light. The 5-year warranty and IP67 rating are strong selling points vs. competing brands.
