Lenco Pro Control Assist 12V Trim Tab System – 12" × 12" Standard Kit
Take full command of your boat’s running attitude with the Lenco Pro Control Assist trim tab system. This complete 12" × 12" standard mount kit includes everything needed to install a professional-grade, digitally controlled trim tab system from scratch — blades, actuators, controller keypad, and all required cabling.

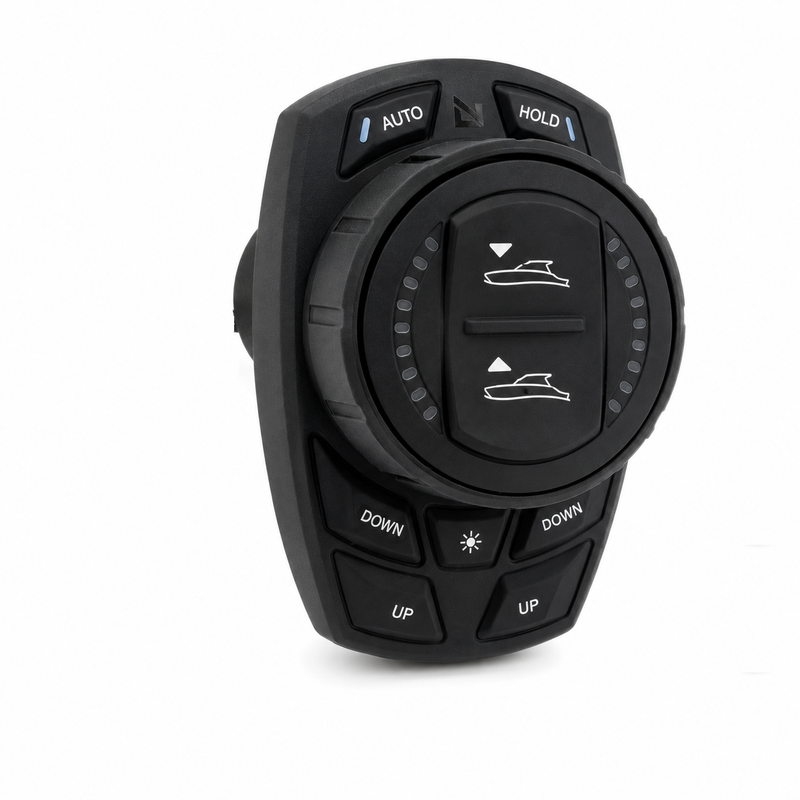

The Pro Control Assist uses a sleek flush-mount keypad with programmable memory position recall, letting you dial in your preferred running angle and return to it instantly at the push of a button. Day and Night display modes keep the interface readable in any conditions, and CAN bus communication keeps wiring clean and installation straightforward.
The 12" × 12" standard blade size is well suited to larger center consoles, express cruisers, and similar hulls in the 22–28 ft range. Standard mount blades feature a 5/8" flared trailing edge and are fabricated from 12-gauge 304 stainless steel for long-term corrosion resistance.
Key Features
- Complete system — blades, actuators, keypad, and all cabling included
- Programmable memory position recall for repeatable trim settings
- Day and Night display modes for all-condition readability
- CAN bus architecture — clean, expandable wiring with simple daisy-chain connections
- 12-gauge 304 stainless steel blades with 5/8" flared trailing edge
- 2.25" stroke SD Pro actuators, 10" pin-to-pin (15187-001)
- Compatible with Mercury and non-Mercury engine systems (Wake Signal Adapters included)
What’s in the Box
- (1) Pro Control Assist Helm Keypad (15175-106)
- (2) 12-gauge 304 stainless steel standard mount blades, 12" × 12" with 1/8" hinge pin
- (2) 2.25" Stroke SD Pro Actuators, 10" pin-to-pin (15187-001)
- (5) Micro C Tee Connectors (30267-001)
- (1) Micro C Power Cable with fuse and ground (30281-001)
- (2) Micro C Drop Cables, 6 ft (30269-002)
- (1) Micro C Drop Cable, 25 ft (30269-004)
- (2) 6-Pin Deutsch to Micro C Actuator Network Adapter Cables (30377-001)
- (2) Pro Control Actuator Power Pigtails, 3 ft (30378-001)
- (2) Wake Signal Adapters for Non-Mercury Systems (30376-001)
Blade Size Guide
The 12" × 12" standard blade is the mid-size option in the Pro Control Assist lineup, best suited to hulls in the 22–28 ft range. For smaller vessels, see the 9" × 12" kit. If transom space is limited or a lower actuator profile is needed, consider the edge mount version:
- Lenco Pro Control Assist 12V Trim Tab System – 9" × 12" Standard Kit (15181-106)
- Lenco Pro Control Assist 12V Trim Tab System – 12" × 12" Edge Mount Kit (15185-106)
Prefer Auto-Levelling?
If you’d like the system to automatically level the boat without manual input, see the Pro Control Auto series equivalent:
Add a Flybridge Station
Extend control to a second helm with the Lenco Pro Control Assist Flybridge Keypad Kit (15177-106).
Parts Desk Insights
Best Use Case: This is the right kit for a customer doing a full trim tab installation on a larger center console, express cruiser, or similar hull in the 22–28 ft range who wants manual memory-position control without the added cost of auto-levelling. Everything needed for a complete single-station helm installation is included. For smaller hulls (17–22 ft), direct customers to the Pro Control Assist 9" × 12" Kit (15181-106).
Standard vs. Edge Mount: Standard mount is the most common installation. Edge mount (15185-106) is preferred when the transom has limited vertical space or the customer wants a lower actuator profile — the actuator mounts at the trailing edge of the blade, giving a 3" lower mounting height. Both use the same 12" × 12" blade footprint. See the Pro Control Assist 12" × 12" Edge Mount Kit (15185-106).
Assist vs. Auto: The Pro Control Assist uses manual memory-position control. If the customer wants the system to automatically level the boat based on real-time pitch and roll, direct them to the Pro Control Auto 12" × 12" Standard Kit (15184-107).
Non-Mercury Engines: Two Wake Signal Adapters are included, covering both actuators. No additional adapter purchase is needed for non-Mercury installations.
Flybridge Upsell: If the customer has a dual-station vessel, add the Pro Control Assist Flybridge Keypad Kit (15177-106). It connects directly to the CAN bus network included in this kit.
