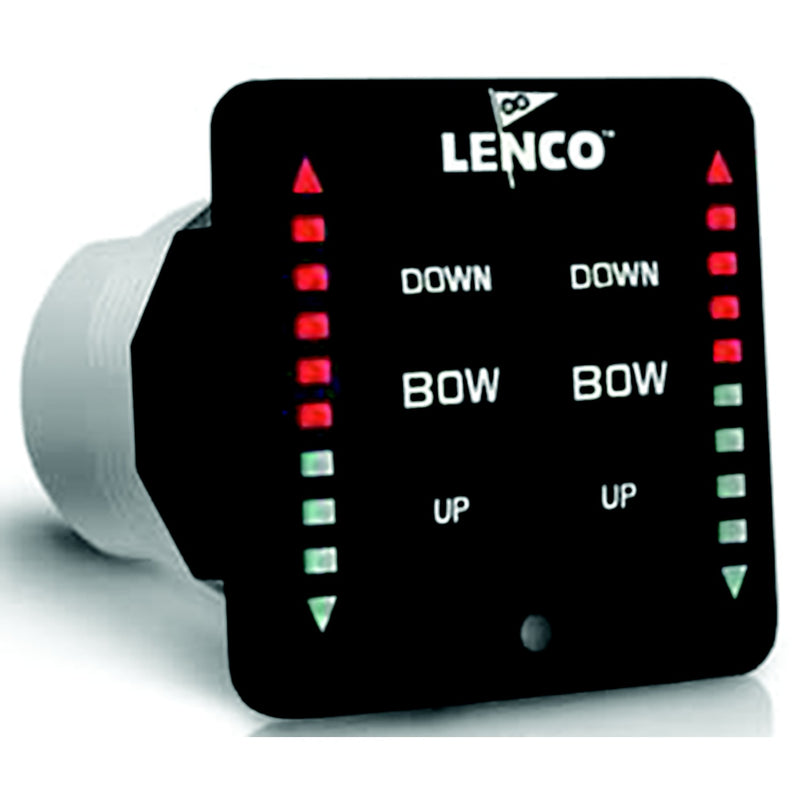

Lenco LED Indicator Two-Piece Switch Kit – Single Actuator (15270-001)
The Lenco 15270-001 is a two-piece LED indicator switch kit designed for single-actuator electric trim tab systems on 12V or 24V boats. By separating the helm keypad from the solid-state control box, this kit significantly reduces the mounting depth required behind the dashboard — making it the right choice for consoles where space is tight.
Two high-intensity LED displays give you a clear, real-time read on tab position at all times. A built-in photo eye automatically adjusts display brightness to match ambient light conditions, and the backlit keypad keeps everything readable after dark.
Compatible Applications
- Single-actuator Lenco electric trim tab systems
- 12V and 24V electrical systems
- Helm consoles requiring shallow keypad mounting depth (2.33" clearance behind panel)
- Replacement or upgrade of older Lenco single-actuator switch systems (2017 and newer connector generation)
Key Features
- SKU: 622-15270001 | Lenco P/N: 15270-001
- Two-piece design: separate keypad and remote-mounted solid-state control box
- 2 high-intensity LED displays show real-time trim tab position
- Photo eye automatically optimizes display brightness in all lighting conditions
- Backlit keypad for nighttime operation
- Automatic built-in retractor
- Self-Check feature
- Waterproof Plug & Play Deutsch connectors
- 36" (91.4 cm) power pigtail
- Keypad footprint: approx. 2.75" x 2.75" | Cut-out: approx. 2-1/16"
- Requires 2.33" clearance behind mounting surface
- Compatible with 12V and 24V systems
- 3-year warranty
- UPC: 874847007597
Related Components
- Lenco Pro Control Actuator Power Pigtail, 3' (15206-101)
- Lenco 6-Pin Deutsch to Micro C Actuator Network Adapter Cable (15205-101)
- Lenco Pro Control Assist 12V Trim Tab System – 9" x 12" Standard Kit
- Lenco Pro Control Auto 12V Trim Tab System – 9" x 12" Standard Kit
Parts Desk Insights
The 15270-001 is the right call when the helm console doesn’t have enough depth behind the panel for a standard integrated switch — the two-piece design moves the control box to a remote location, leaving only the slim keypad at the helm. It’s also a clean upgrade path for boats with a failed older Lenco switch, provided the existing system is 2017 or newer generation; pre-2017 Lenco keypads and control boxes use different connectors and are not compatible with this kit. Confirm actuator count before ordering — this is the single-actuator version. If your installation uses two actuators (one per tab), a different switch kit is required.
