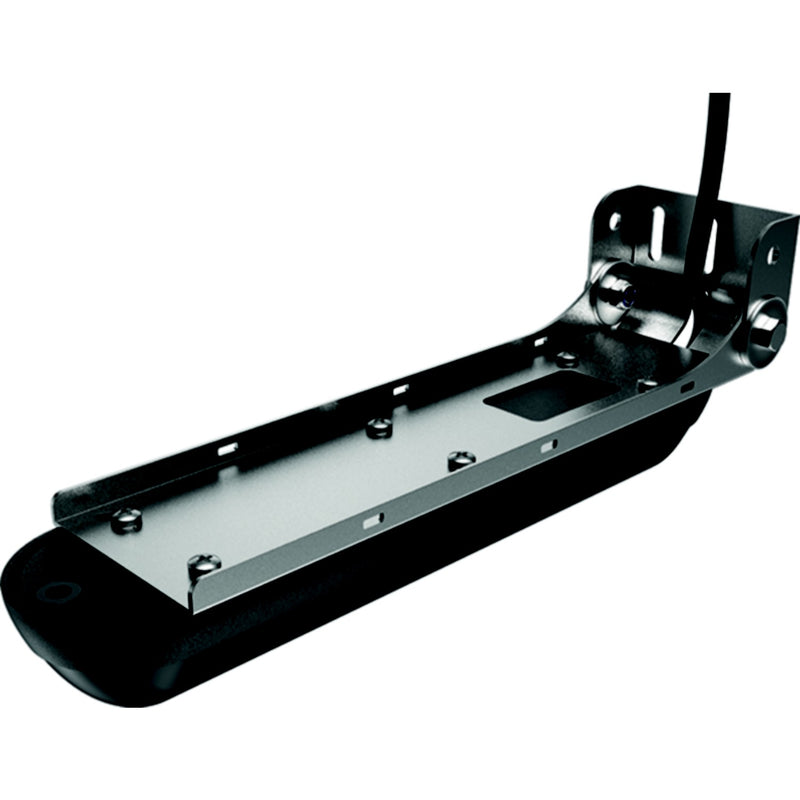

Lowrance Active Imaging™ 3-in-1 Transducer (000-14489-001)

Lowrance Active Imaging™ 3-in-1 Transducer

The Lowrance Active Imaging™ 3-in-1 Transducer combines CHIRP traditional sonar, SideScan, and DownScan Imaging® into a single transom-mount unit — giving you a complete underwater picture from one transducer. Whether you're marking fish in the water column, scanning structure to the sides, or reading bottom detail directly below, this transducer handles all three in one clean install.

FishReveal™ Smart Target View overlays CHIRP fish arches onto your DownScan images, making it easier to distinguish fish from structure at a glance. With dual-frequency imaging at 455/800 kHz and medium/high CHIRP at 83/200 kHz, you get both the range and the resolution to fish confidently in a wide range of conditions.

Key Features

• 3-in-1 design: CHIRP Traditional Sonar + SideScan + DownScan Imaging® in one transducer
• FishReveal™ Smart Target View — overlays fish arches on DownScan images for easier identification
• Medium and High CHIRP frequencies: 83/200 kHz
• SideScan and DownScan at 455/800 kHz for high-resolution imaging
• Superior clarity and longer range than standard structure imaging
• Compatible with Lowrance HDS LIVE, HDS Carbon, and Elite Ti2 series displays

Best Use Cases

• All-in-one sonar setup — Ideal for anglers who want CHIRP, SideScan, and DownScan without running multiple transducers
• Structure and cover fishing — Locate rockpiles, timber, weedbeds, and drop-offs with precision imaging
• Fish identification — FishReveal™ makes it easier to separate fish from bottom clutter on DownScan views
• Freshwater and inshore applications — Versatile frequency range suits a wide variety of water depths and conditions

Related Transducers

• Active Imaging™ 2-in-1 Transducer (000-14490-001) — SideScan + DownScan only, pairs with a separate traditional sonar transducer
• ActiveImaging HD™ 3-in-1 FishReveal Med/High Transducer (000-16060-001) — upgraded HD imaging version
• ActiveImaging HD™ 3-in-1 FishReveal High/Wide Transducer (000-16061-001) — high/wide frequency variant
• ActiveImaging HD™ 3-in-1 Transducer (000-16062-001) — HD imaging without FishReveal

Parts Desk Insights

Best use case: This is the right transducer for customers who want a complete single-transducer sonar solution — CHIRP, SideScan, and DownScan — on a compatible Lowrance display. It’s a strong choice for anglers upgrading from a basic sonar-only setup. If a customer already has a working traditional sonar transducer and only needs imaging, recommend the Active Imaging 2-in-1 (000-14490-001) as a more cost-effective option. For customers wanting the latest HD imaging performance, point them toward the ActiveImaging HD™ 3-in-1 series instead. Always confirm display compatibility — requires HDS LIVE, HDS Carbon, or Elite Ti2.
