Lowrance ActiveImaging HD™ 3-in-1 Transducer, Transom Mount (000-16062-001)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

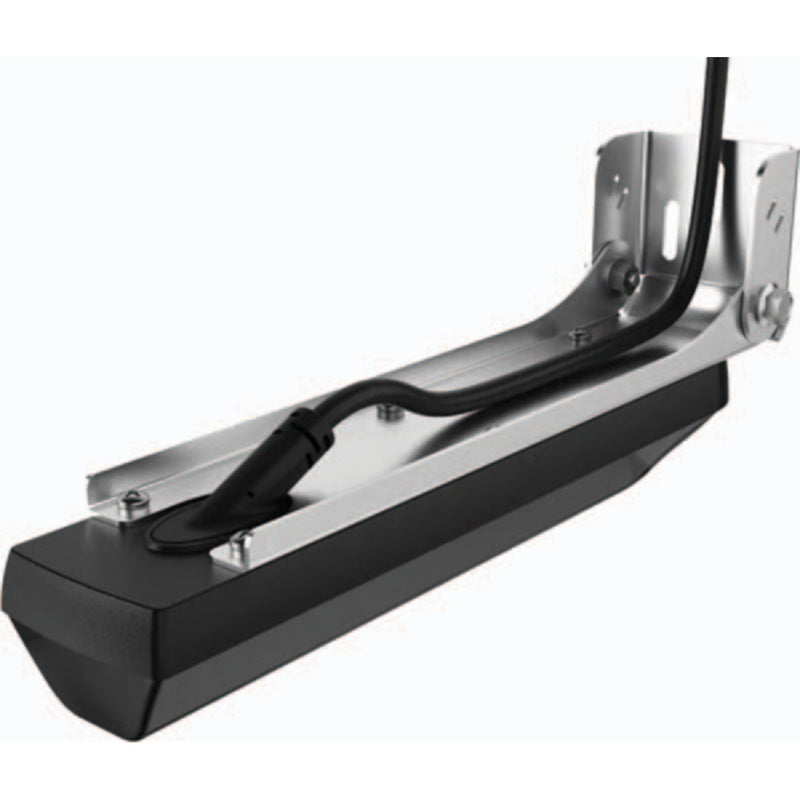

Lowrance ActiveImaging HD™ 3-in-1 Transducer — Transom Mount
The Lowrance ActiveImaging HD™ 3-in-1 Transducer brings high-definition sonar imaging to your transom-mount setup, combining CHIRP traditional sonar, high-frequency SideScan, and DownScan Imaging® in a single unit. With imaging frequencies reaching up to 1.2 MHz, this transducer delivers noticeably sharper, more detailed views of fish and structure than standard Active Imaging — making it easier to read what's below and beside your boat with confidence.
FishReveal™ overlays CHIRP fish arches directly onto your DownScan view, helping you distinguish fish from bottom clutter without switching between sonar modes.
Key Features
- 3-in-1 design: CHIRP Traditional Sonar + SideScan + DownScan Imaging® in one transducer
- High-definition imaging up to 1.2 MHz for superior clarity and detail
- FishReveal™ DownScan view — overlays fish arches on DownScan for easier target identification
- Transom-mount installation
- Significant image quality upgrade over standard Active Imaging
Display Compatibility
- HDS PRO — natively compatible, no additional module required
- HDS LIVE, HDS Carbon, Elite FS — requires the Lowrance S3100 Sonar Module (sold separately)
Best Use Cases
- Anglers upgrading from standard Active Imaging — The HD series delivers a clear step up in image resolution and detail
- Structure and cover fishing — High-frequency imaging reveals fine bottom detail, timber, and weed edges with precision
- Fish identification — FishReveal™ makes it easier to spot fish on DownScan without toggling views
- HDS PRO users — Plug-and-play compatibility with no additional hardware needed
Related Transducers
- ActiveImaging HD™ 3-in-1 FishReveal Med/High Transducer (000-16060-001) — medium/high CHIRP frequency variant with FishReveal
- ActiveImaging HD™ 3-in-1 FishReveal High/Wide Transducer (000-16061-001) — high/wide frequency variant with FishReveal
- Active Imaging™ 3-in-1 Transducer (000-14489-001) — standard Active Imaging 3-in-1 at a lower price point
Parts Desk Insights
Best use case: Recommend this transducer to customers with an HDS PRO display who want a complete, high-definition 3-in-1 sonar solution in a single transom-mount unit. It’s also a strong upgrade path for HDS LIVE, HDS Carbon, or Elite FS owners — but always confirm they have or are purchasing the S3100 Sonar Module, as it is required for those displays and sold separately. If a customer is on a tighter budget or has an older compatible display, the standard Active Imaging 3-in-1 (000-14489-001) is the more accessible option. For customers who need a specific frequency pairing, compare with the Med/High (000-16060-001) and High/Wide (000-16061-001) variants.
