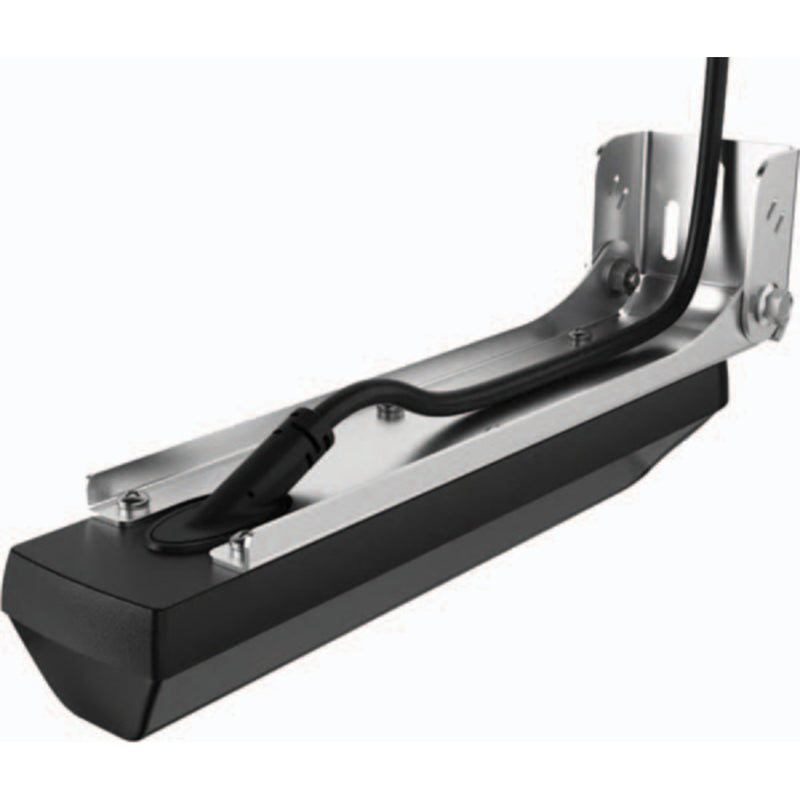

Lowrance ActiveImaging HD™ 3-in-1 FishReveal Med/High Transducer, Transom Mount (000-16060-001)

Lowrance ActiveImaging HD™ 3-in-1 FishReveal Med/High Transducer — Transom Mount

The Lowrance ActiveImaging HD™ 3-in-1 FishReveal Med/High Transducer combines high-definition CHIRP sonar, SideScan, and DownScan Imaging® in a single transom-mount unit — with imaging frequencies up to 1.2 MHz for exceptional underwater clarity. The Med/High frequency pairing is optimized for deeper water performance, giving you stronger sonar penetration and reliable bottom tracking in deeper lakes, reservoirs, and coastal environments.

Like the rest of the ActiveImaging HD FishReveal lineup, this transducer includes FishReveal™ on both DownScan and SideScan views, overlaying CHIRP fish arches onto your imaging screens so you can identify fish alongside structure without switching modes.

Key Features

• 3-in-1 design: CHIRP Traditional Sonar + SideScan + DownScan Imaging® in one transducer
• High-definition imaging up to 1.2 MHz for superior clarity and detail
• FishReveal™ DownScan — overlays CHIRP fish arches on DownScan view
• FishReveal™ SideScan — identifies fish in SideScan view for expanded target awareness
• Med/High frequency pairing — optimized for deeper water penetration and bottom tracking
• Transom-mount installation

Display Compatibility

• HDS PRO — natively compatible, no additional module required
• HDS LIVE, HDS Carbon, Elite FS — requires the Lowrance S3100 Sonar Module (sold separately)

Best Use Cases

• Deep lake and reservoir fishing — Med/High frequencies maintain sonar performance at greater depths where high-frequency signals lose penetration
• Walleye, lake trout, and open-water species — Ideal for anglers targeting fish in deeper, open-water environments
• Full fish identification coverage — FishReveal on both DownScan and SideScan gives you the most complete picture of what’s around the boat
• HDS PRO users wanting top-tier deep-water imaging — Plug-and-play with no additional hardware needed

Related Transducers

• ActiveImaging HD™ 3-in-1 FishReveal High/Wide Transducer (000-16061-001) — High/Wide frequency variant, better suited for shallower, structure-rich water
• ActiveImaging HD™ 3-in-1 Transducer (000-16062-001) — HD imaging without FishReveal SideScan, at a lower price point
• Active Imaging™ 3-in-1 Transducer (000-14489-001) — standard Active Imaging 3-in-1 for compatible displays

Parts Desk Insights

Best use case: Recommend this transducer to customers who fish deeper water — lakes, reservoirs, or coastal environments where Med/High frequencies outperform the High/Wide pairing. It’s the right choice when a customer wants FishReveal on both DownScan and SideScan and primarily fishes at depth. Always confirm display compatibility: HDS PRO is plug-and-play, but HDS LIVE, HDS Carbon, and Elite FS all require the S3100 Sonar Module (sold separately). If the customer fishes shallower, structure-heavy water, compare with the High/Wide variant (000-16061-001) instead. For customers who don’t need FishReveal SideScan or are budget-conscious, the ActiveImaging HD™ 3-in-1 (000-16062-001) is the step-down option.
