OceanLED X16 Xtreme Underwater LED Light — Midnight Blue with White Bezel | 012309BI
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

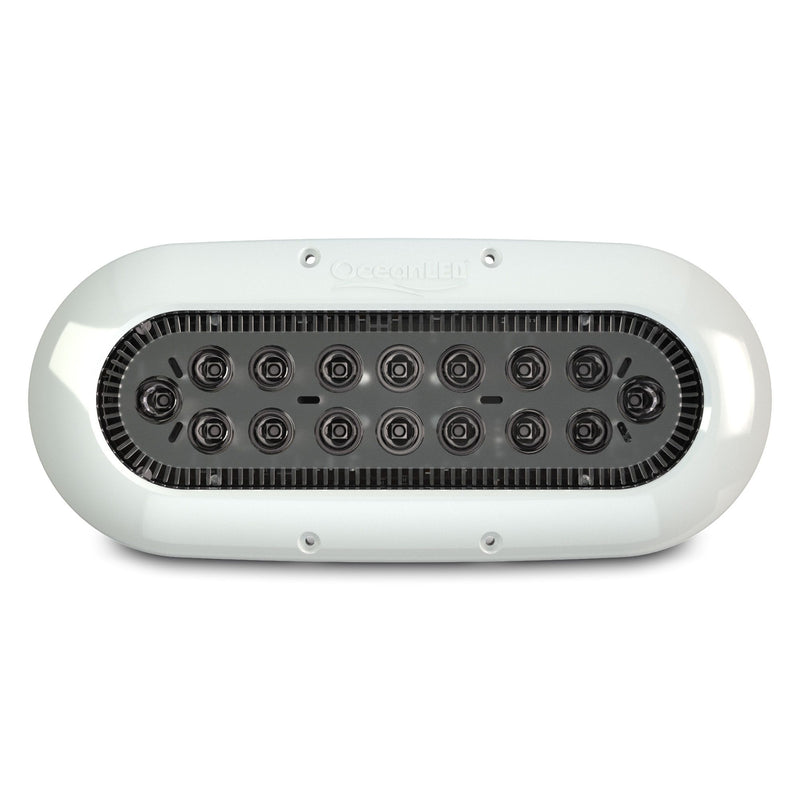

The OceanLED X16 Xtreme is a surface-mount underwater LED light from the X-Series range, designed for boats where a flush or through-hull installation is not practical. Built from chemically resistant optical polymer with a built-in driver, the X16 delivers a wide 60° circular beam that works across a variety of mounting positions — hull sides, transoms, swim platforms and exterior deck or cockpit surfaces. This variant is finished in Midnight Blue with a white bezel, combining a distinctive colour output with a clean, low-profile appearance. IP69K certified and equipped with active thermal control, the X16 is built for permanent marine installation in demanding conditions.
Key Features
- 60° circular beam angle — consistent light spread across multiple mounting orientations
- Midnight Blue colour output with white bezel
- Built-in driver — no separate driver unit required
- Ultra-low power draw with no start-up current surge
- Reverse polarity protection
- IP69K certified — highest achievable water ingress protection rating
- Active thermal control for long-term reliability
- Fish strobe mode for attracting baitfish and game fish
- Suitable for underwater, cockpit, deck and trailer use
- Chemically resistant optical polymer housing
- Weight: 857 g / 1.9 lb
Intended Use

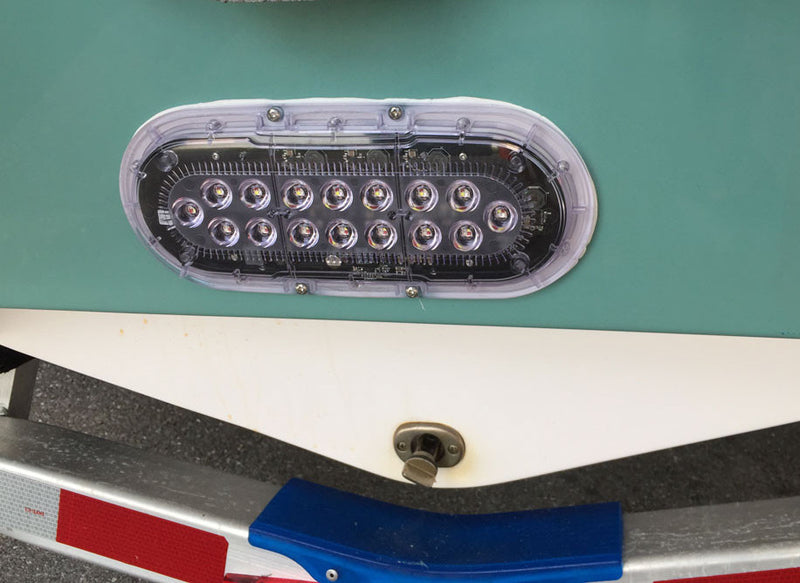

Designed for surface mounting on hulls, transoms, swim platforms and exterior deck surfaces where a through-hull or flush-mount installation is not possible or preferred. The X16 is well suited to recreational powerboats, centre consoles and sportfishers where underwater lighting for fish attraction, night swimming or dock presence is desired without major hull modification.
Fitment Notice
This is a surface-mount light — it does not require a hull penetration. Confirm that the mounting surface is flat enough to achieve a watertight seal with the supplied gasket. The white bezel is fixed on this variant; for a black bezel option, see the OceanLED X16 Xtreme — Midnight Blue (Black Bezel). For a matching X16 bezel replacement, see the X-Series Bezel for X16.
Installation and Use Notes
Mount to a clean, flat surface using the supplied hardware and gasket. Connect to a dedicated circuit with appropriate fusing. The built-in driver eliminates the need for a separate driver enclosure. Activate fish strobe mode via the control switch according to the instructions supplied with the light. Rinse with fresh water after salt-water exposure and inspect the mounting seal periodically.
Alternate/Superseded Part Numbers
- Part number: 812-012309BI
- OceanLED model: 012309BI
- Brand: OceanLED
- Series: X-Series / X16 Xtreme
- Colour: Midnight Blue
- Bezel: White
- Beam angle: 60° circular
- IP rating: IP69K
- Weight: 857 g / 1.9 lb
Compatible & Related Products
- OceanLED X16 Xtreme Underwater Light — Midnight Blue (Black Bezel)
- OceanLED X-Series Replacement Bezel for X16 — Black
- OceanLED X-Series Replacement Bezel for X8 — Black
- OceanLED Explore E6 Thru-Hull Underwater Light — 6,000 Lumen RGBW DMX
- OceanLED Explore E6 Thru-Hull Underwater Light — 11,000 Lumen Dual Blue/White
Parts Desk Insight
The X16 is the best surface-mount option in the OceanLED range for customers who want a significant light output without drilling a thru-hull. The Midnight Blue colour is the most popular choice for fish attraction and underwater ambience — the white bezel variant suits vessels with lighter-coloured hulls or transoms where a black bezel would stand out. If the customer wants the same light with a black bezel, the 012309B is the direct alternative. For customers with larger vessels (65 ft and above) or who need thru-hull installation, recommend the Explore E6 thru-hull range instead.
