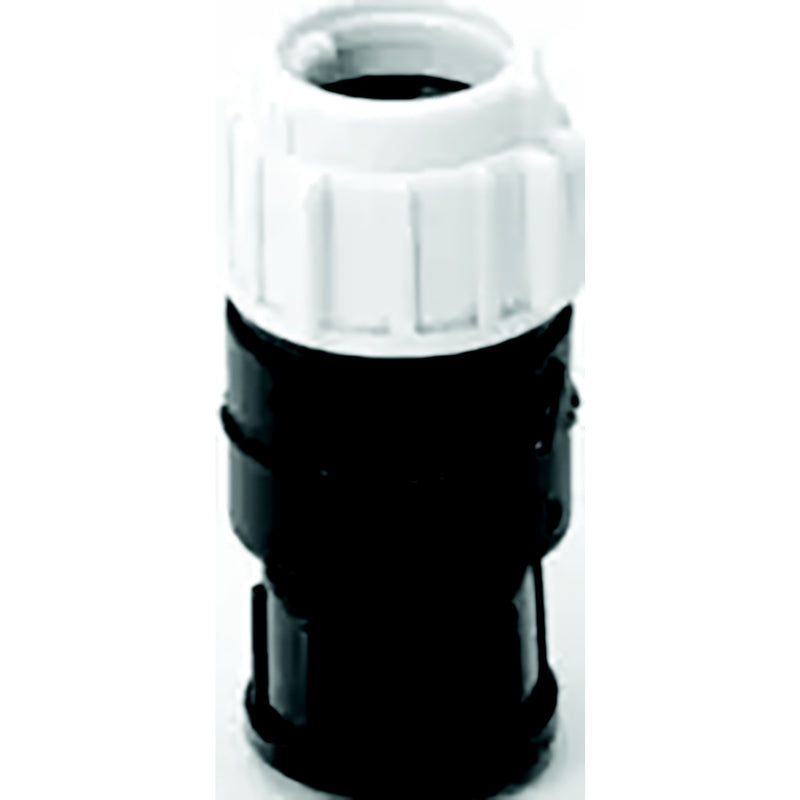

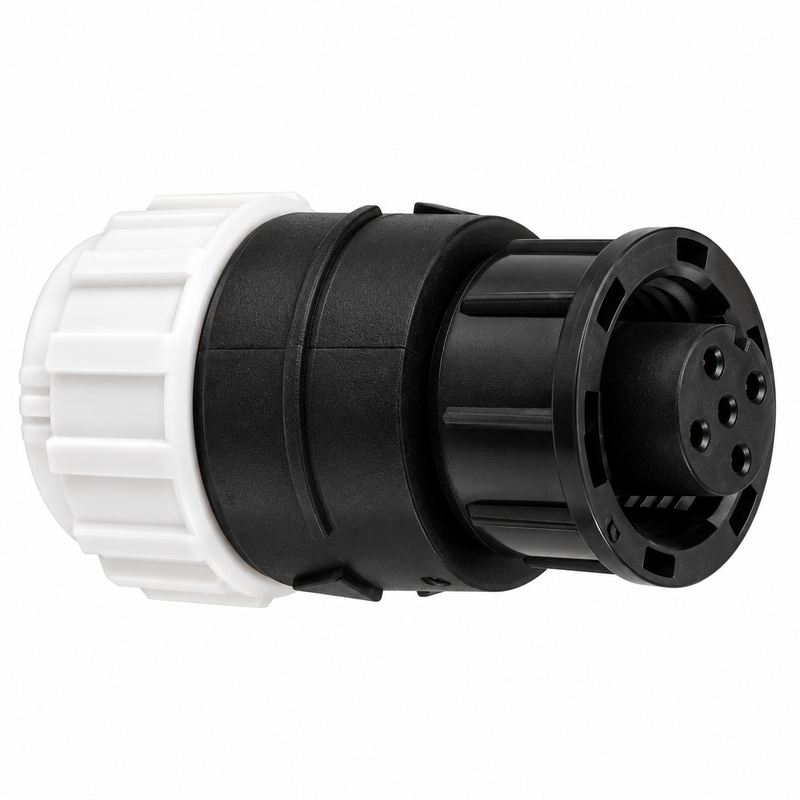

Raymarine A06082 NMEA 2000 (DeviceNet) Female to SeaTalk NG Male Straight Adaptor

Part Information

• Part Number: A06082
• SKU: 152-A06082
• Brand: Raymarine
• Official Product Type: Marine Network Adaptor — Straight
• System: SeaTalk NG / NMEA 2000 Networking
• Connection A: NMEA 2000 (DeviceNet) Female
• Connection B: SeaTalk NG Male
• Adaptor Style: Straight (inline, no cable)

What This Part Does

The Raymarine A06082 is a straight inline adaptor that physically bridges an NMEA 2000 (DeviceNet) female connector to a SeaTalk NG male connector. It allows devices with a DeviceNet male plug to connect directly into a SeaTalk NG backbone spur or T-piece without any additional cable.

Compatible Applications

• Adding a DeviceNet-equipped sensor or device to a Raymarine SeaTalk NG backbone
• Connecting NMEA 2000 instruments, transducers, or sensors to a SeaTalk NG spur port
• Chartplotter, autopilot, radar, and fishfinder network integrations where DeviceNet and SeaTalk NG cabling must interface
• Any SeaTalk NG installation requiring a DeviceNet female socket at a spur connection point

Dimensions & Weight

• Style: Straight inline adaptor (no cable length)
• Weight: Approx. 227 g (packaged)
• Connector A: NMEA 2000 / DeviceNet Female (5-pin micro)
• Connector B: SeaTalk NG Male

Parts Desk Insights

Best Use Case: Ideal when you have a DeviceNet-plug device — such as a transducer, sensor, or third-party NMEA 2000 instrument — and need to plug it directly into a SeaTalk NG spur port or T-connector on your Raymarine network backbone. A common scenario is adding a non-Raymarine NMEA 2000 sensor to an existing SeaTalk NG system.

Common Issues: If the device doesn't appear on the network after connecting, verify connector gender and orientation — this adaptor requires a DeviceNet male plug on the device side. Also confirm the backbone has proper termination at both ends and that network power is correctly applied. Devices that are not fully NMEA 2000 certified may have limited compatibility regardless of the adaptor used.

Related Products & Accessories

• Raymarine A06045 DeviceNet (Female) to SeaTalk NG Adaptor Cable (0.4M) — cable version of this adaptor for added reach
• Raymarine A06076 SeaTalkNG to DeviceNet (Male) Adaptor Cable – 1M — male DeviceNet to SeaTalk NG, 1-metre cable
• Raymarine A06079 NMEA 2000 (DeviceNet) Female to SeaTalk NG Spur Female Adapter Cable — spur female variant
• Raymarine A06064 SeaTalk NG 5-Way Connector Block — expand spur connections on your backbone
• Raymarine A06031 SeaTalkng Backbone Terminator — required at each end of an NMEA 2000 backbone
• Raymarine A06033 SeaTalkng Backbone Cable – 400mm / 1.3 ft — short backbone extension cable
• Raymarine E22158 ST NG Backbone Kit — complete SeaTalk NG starter backbone kit

Service Interval

No scheduled service interval. Inspect connector seals and locking rings annually or whenever servicing connected network devices. Replace if corrosion, cracking, or poor seating is observed.

Technical FAQ

• Is this the same as a standard NMEA 2000 micro-C adaptor? The SeaTalk NG connector is Raymarine's branded variant of the NMEA 2000 micro-C connector. They are electrically compatible but use different locking collar styles, which is exactly what this adaptor addresses.
• Does this adaptor carry power as well as data? Yes — NMEA 2000 / SeaTalk NG networks carry both data and 12V DC power over the same cable. This adaptor passes both through.
• Can I use this in a non-Raymarine NMEA 2000 network? Yes, provided the other end of your network uses standard DeviceNet (micro-C) connectors and your backbone is properly terminated and powered.
• Does this require any configuration? No configuration required. It is a passive hardware adaptor with no software component.
