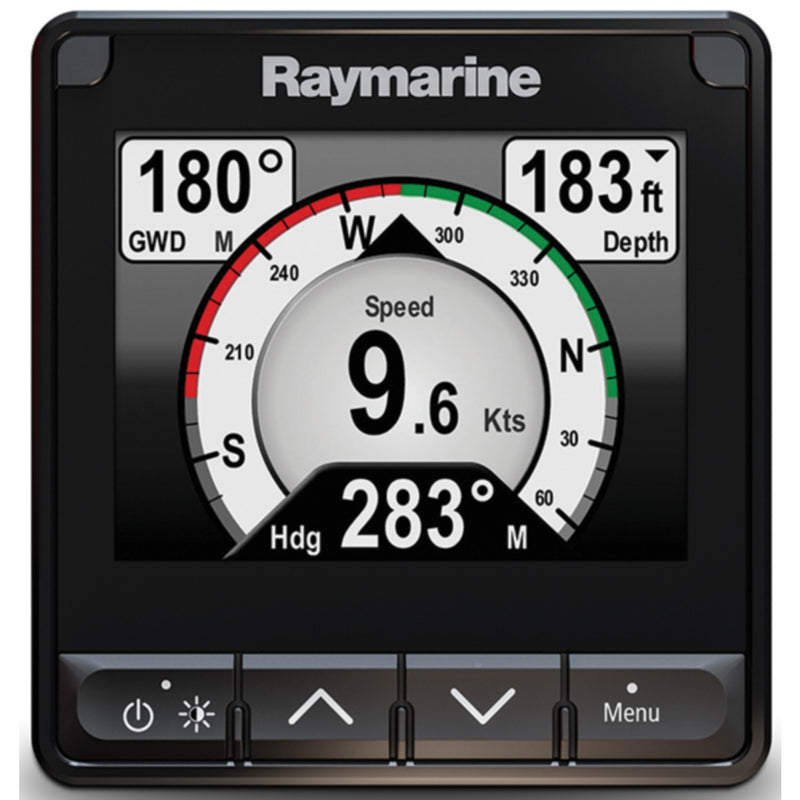

Raymarine E70327 i70s Multifunction Instrument Display

Raymarine i70s Multifunction Instrument Display

Part Number: E70327 (distributor SKU: 152-E70327)
Brand: Raymarine
Model: i70s
UPC: 723193812297
Type: Multifunction marine instrument display — display-only package

Product Overview

The Raymarine i70s is a compact 4.1-inch color multifunction instrument display designed for helm-mounted marine instrumentation. Using a SeaTalkng network connection, it can show data from depth, speed, wind, GPS, navigation, engine, tank level, environmental, AIS, and fuel sources — depending on connected sensors and interfaces. The optically bonded LCD delivers strong contrast and readability in bright sunlight, and pages are fully customizable with digital, analog, and graphical display options.

• Display: 4.1-inch color LCD, optically bonded
• Customizable pages: digital, analog, and graphical data display modes
• Data types: depth, speed, wind, GPS/navigation, engine, tank level, fuel, AIS, environmental
• Network: SeaTalkng (compatible with NMEA 2000 via adapter)
• AIS repeater capability for displaying nearby vessel targets
• Waterproof rating: IPX6 / IPX7
• Operating temperature: −20°C to +55°C
• This is the display-only package — sensors, transducers, and backbone components are not included

Package Contents

• 1 × i70s instrument display with black bezel
• 1 × Panel-seal gasket
• 1 × 400mm SeaTalkng spur cable
• 1 × Sun cover
• 1 × Spare gunmetal bezel
• 4 × Mounting screws

Compatible Applications

• New Raymarine SeaTalkng instrument system installations
• Expanding an existing Raymarine SeaTalkng or NMEA 2000 instrument network with an additional display
• Replacing a failed or damaged helm instrument display
• Vessels adding multifunction instrument data display at a secondary helm position

Network Note: The i70s connects natively to a SeaTalkng backbone. For integration with a standard NMEA 2000 (DeviceNet) backbone, use the Raymarine A06076 SeaTalkng-to-DeviceNet Adaptor Cable. A compatible backbone, terminators, and power connection are required. Sensors and transducers must be connected separately to provide the data displayed on the unit.

Part Number Reference

• Raymarine: E70327 / 152-E70327
• Black bezel: A80353
• Gunmetal bezel: A80354
• Sun cover: A80357
• 400mm SeaTalkng spur cable: A06038
• UPC: 723193812297

When to Replace

• Display develops screen failure, dead pixels, or backlight failure
• Water intrusion into the display housing
• Controls become unresponsive or unreliable
• Persistent network communication errors that cannot be resolved through wiring or network troubleshooting
• Upgrading from an older Raymarine instrument display to the current i70s generation

Installation Notes

• Cut the panel opening to the required dimensions and secure the display using the supplied mounting screws and panel-seal gasket
• Connect the display to the SeaTalkng backbone using the supplied 400mm spur cable and a compatible T-connector or 5-way connector block
• For NMEA 2000 integration, use the SeaTalkng-to-DeviceNet adaptor
• Ensure the backbone has power connected and terminators installed at both ends before powering on
• Configure data pages and sources through the i70s display setup menu after commissioning

Technical FAQ

Does this include transducers or sensors? No — E70327 is the display-only package. Sensors and transducers such as a depth/speed/temperature transducer or wind transducer must be purchased and connected separately, along with the appropriate interface (such as the Raymarine iTC-5 transducer converter for analog transducers).

Is the i70s compatible with NMEA 2000 networks? Yes, with the appropriate SeaTalkng-to-DeviceNet adaptor. The i70s connects natively to SeaTalkng, which is Raymarine’s implementation of NMEA 2000.

Can the i70s display AIS targets? Yes — when connected to a compatible AIS receiver on the network, the i70s can repeat AIS target data.

Can multiple i70s displays be added to the same network? Yes — multiple i70s units can share the same SeaTalkng backbone and display data from the same connected sensors.

Related Products

• Raymarine A06076 SeaTalkng to DeviceNet (Male) Adaptor Cable – 1M
• Raymarine SeaTalkng Starter Kit
• Raymarine A06064 SeaTalkng 5-Way Connector
• Raymarine Axiom 2 Pro 12 S Multifunction Navigation Display
• Raymarine Axiom 2 Pro 9 S Multifunction Navigation Display
• Raymarine Raystar RS150 External GPS/GNSS Sensor
• Raymarine DT800 Smart Depth & Temperature Transducer

Parts Desk Insights

The key distinction for E70327 is that it is the i70s display only — no transducers, iTC-5 converter, or backbone hardware included. The most common customer confusion is expecting a ready-to-install system in the box. When a customer needs a complete first-time installation with sensors and network backbone, direct them to the appropriate i70s instrument system pack instead. For customers adding a second or third display to an existing SeaTalkng network, E70327 is the correct choice and they only need the display, a spur cable, and a T-connector or 5-way connector to add it to an existing backbone.
