Raymarine EV-100 Power Pilot — p70Rs — 1.0L Hydraulic Pump — T70330
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Raymarine EV-100 Power Pilot with 1.0L Hydraulic Pump (T70330) is a complete Evolution autopilot system for power boats with hydraulic steering. This kit includes the 1.0L hydraulic pump alongside the EV1 Sensor Core, ACU-100 Actuator Control Unit, p70Rs control head, and EV1 cabling kit — everything needed for a full installation on vessels with hydraulic steering systems requiring up to 1.0 litre of pump displacement.
The EV1 Sensor Core uses a 9-axis solid-state sensor to monitor pitch, roll, yaw and heading simultaneously, with no compass calibration required. It can be mounted above or below deck in virtually any orientation, including upside-down or off the vessel’s centreline.

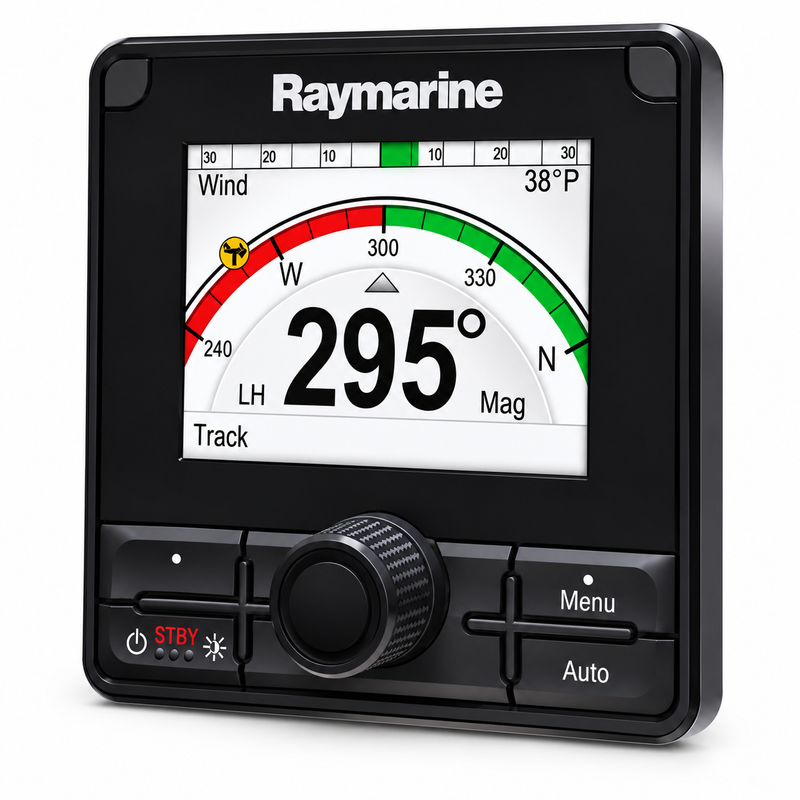

The included p70Rs control head features a rotary knob interface and a bright optically bonded display suited to power-boat operation, with full LightHouse menu navigation and SeaTalkng / NMEA 2000 connectivity.

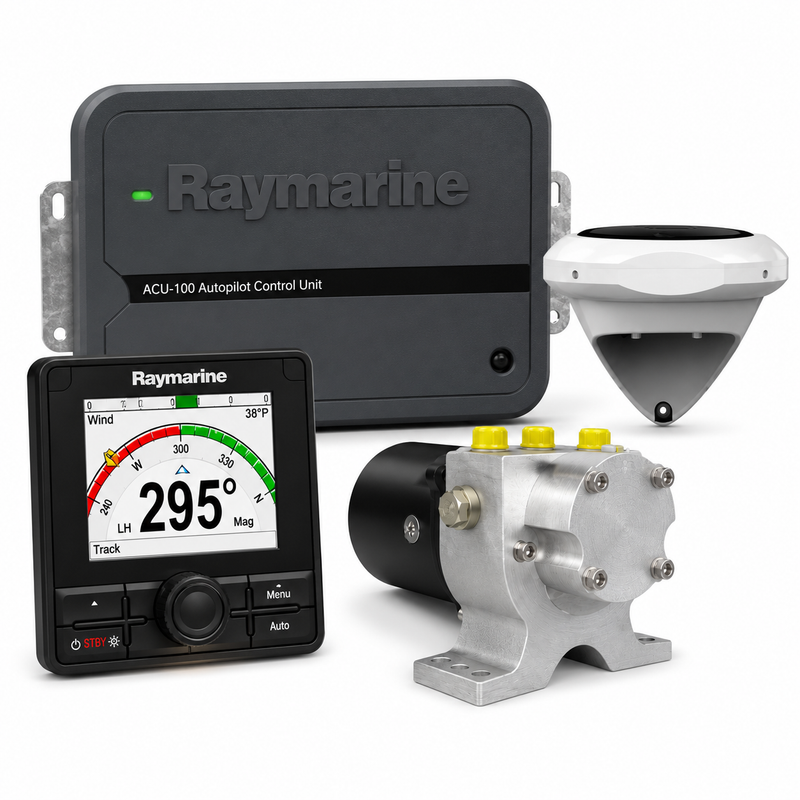

What’s in the Box
- EV1 Sensor Core (9-axis, pitch / roll / yaw / heading)
- ACU-100 Actuator Control Unit
- p70Rs Control Head
- Type 1 Hydraulic Pump — 1.0L displacement
- EV1 Cabling Kit
Key Features
- Complete autopilot system for hydraulic steering — includes 1.0L hydraulic pump
- EV1 9-axis Sensor Core — no compass calibration required
- Flexible sensor placement — above or below deck, any orientation
- ACU-100 Actuator Control Unit
- p70Rs rotary control head with optically bonded sunlight-readable display
- LightHouse user interface with automatic 3-step setup
- SeaTalkng networking — compatible with NMEA 2000
- Autopilot modes: Auto, Standby, Pattern, Track, Power Steer, Jog Steer
- Raymarine part number: T70330
Related Autopilot Systems
- Raymarine EV-100 Power Pilot with p70Rs — T70154 — without hydraulic pump
- Raymarine EV-200 Hydraulic Autopilot — p70Rs — T70157 — higher-capacity hydraulic system
- Raymarine EV-200 Mechanical Linear Drive Autopilot — T70158 — for mechanical steering
- Raymarine EV-100 Wheel Pilot with p70s — T70152 — for sailing yachts
- Raymarine EV-100 Cockpit Autopilot — Sail
- Raymarine p70s Control Head — Sail — E70328
Parts Desk Insight
The T70330 is the right choice when you need an EV-100 system for hydraulic steering and want the hydraulic pump included in a single purchase. If you already have a compatible hydraulic pump installed, the T70154 (without pump) avoids paying for a component you don’t need. For larger vessels or higher-load hydraulic systems, the EV-200 Hydraulic (T70157) provides greater drive capacity and includes a rudder indicator. Confirm your hydraulic system’s pump displacement requirements before selecting between EV-100 and EV-200.
