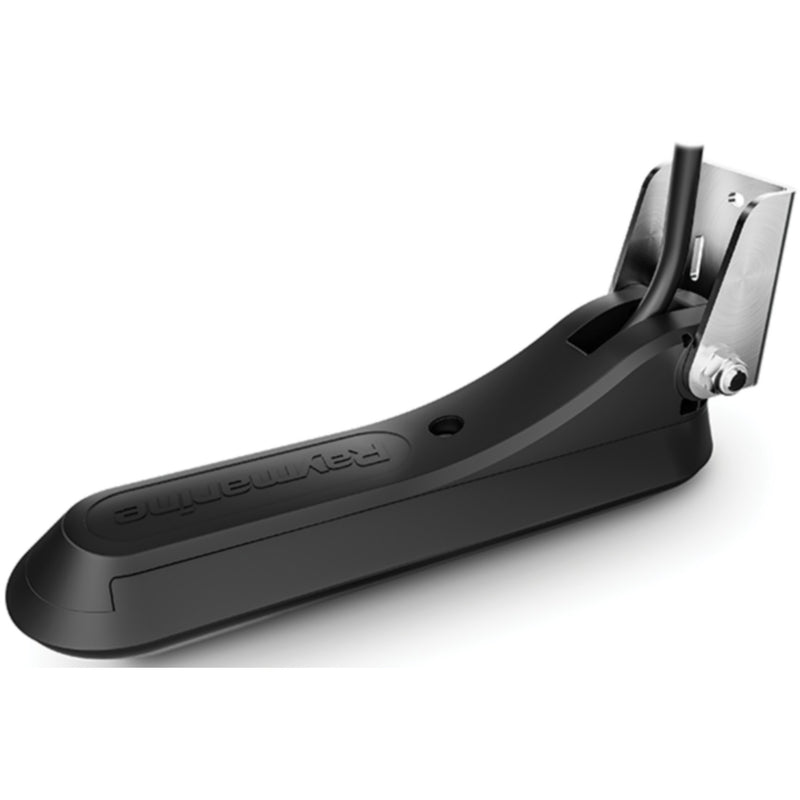

Raymarine RV-100 All-In-One Transom Mount Transducer (A80464)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
RealVision 3D, DownVision, SideVision & CHIRP — All from One Transom Mount
The Raymarine RV-100 delivers four sonar technologies in a single transom-mount transducer designed for outboard-powered motorboats. RealVision 3D, DownVision, SideVision, and high-frequency CHIRP fish targeting all operate from one unit — giving you a complete, three-dimensional picture of the water column and surrounding structure without multiple transducer installations.
Four Sonar Technologies in One Transducer
- RealVision 3D Sonar — Produces life-like, three-dimensional sonar imagery of the bottom and surrounding structure, giving you spatial context that traditional 2D sonar can't provide
- DownVision — High-resolution scanning sonar directly beneath the hull for detailed images of fish, structure, and bottom composition
- SideVision — Scans to both sides of the vessel, covering more water and revealing structure and fish away from your direct path
- High-Frequency CHIRP — Precision fish targeting with excellent target separation and fish arch definition for traditional sonar performance
Built-In AHRS Stabilization
- Attitude & Heading Reference System (AHRS) — Built-in motion compensation automatically stabilizes sonar imagery as the vessel pitches and rolls, delivering clear, consistent images in waves, swells, and while maneuvering
Construction & Mounting
- Transom Mount Design — Engineered for easy installation on the transom of outboard-powered motorboats; no hull penetration required
- Stainless Steel Kick-Up Bracket — Marine-grade stainless steel mounting bracket with integrated kick-up mechanism protects the transducer if it strikes submerged debris, rocks, or stumps
- Built-In Water Temperature Sensor — Fast-response sensor provides accurate real-time surface water temperature readings
Compatible Chartplotters
Designed for use with Raymarine Axiom and Axiom+ series chartplotters with RealVision 3D capability, including the Axiom+ 9" RV, Axiom+ 12" RV, and Axiom 2 Pro 9" RVM. Verify your chartplotter's RealVision 3D compatibility before ordering.
Parts Desk Insights
Best Use Case: The RV-100 is the ideal choice for outboard-powered bass boats, walleye rigs, and inshore fishing boats where a transom mount is preferred and a thru-hull installation isn't practical or desired. The kick-up bracket makes it particularly well-suited for shallow-water fishing environments where contact with stumps, rocks, or debris is a real possibility. It delivers the same four-channel sonar capability as the RV-200 Bronze Thru-Hull in a transom-mount format — making it the more accessible installation option for most outboard boats.
RV-100 vs. RV-200: The RV-100 is a transom-mount unit for outboard boats; the RV-200 is a bronze thru-hull designed for inboard and outboard powerboats where a permanent hull installation is preferred. Both deliver the same four sonar channels and AHRS stabilization.
Extension & Accessories: If your installation requires additional cable length, the Raymarine RealVision 3D Transducer Extension Cable, 5m is available. For dual-display setups, see the Raymarine RealVision 3D Y-Cable Adapter.
Part Number: A80464 | SKU: 152-A80464
