Raymarine RVM-100 RealVision MAX All-In-One Transom Mount Transducer (A80703)

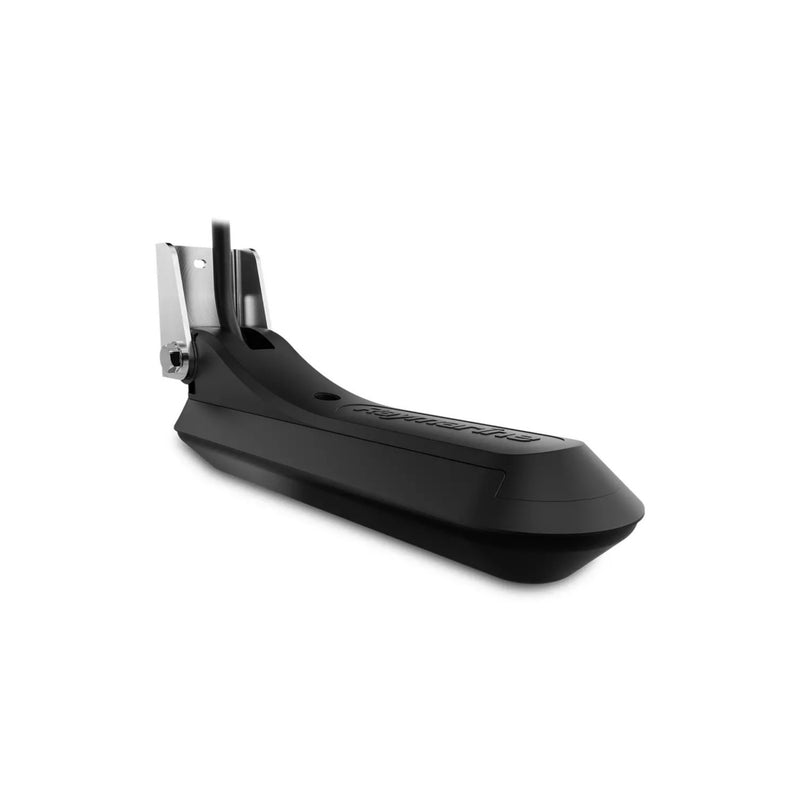

Raymarine RVM-100 RealVision MAX All-In-One Transom Mount Transducer

The RVM-100 is Raymarine’s most capable all-in-one transom mount transducer — a single unit that delivers four sonar technologies simultaneously: DownVision™, SideVision™, high-frequency CHIRP fish targeting, and full 3D sonar. Designed exclusively for RealVision MAX compatible systems, it represents a significant step up from the previous RealVision 3D generation in image clarity, target separation, and 3D stability.

A built-in Attitude and Heading Reference System (AHRS) continuously compensates for vessel pitch and roll, keeping 3D sonar imagery stable and readable even in choppy conditions — a feature that makes a real difference when reading structure and tracking fish in open water.

Designed for transom mounting on outboard-powered boats, the RVM-100 installs on a rugged marine-grade stainless steel bracket with an integrated kick-up mechanism that protects the transducer if it strikes an underwater obstruction.

What’s Included

• RVM-100 RealVision MAX transducer
• Stainless steel transom mount bracket with kick-up protection
• 8-metre extension cable

Sonar Technologies

• DownVision™ — high-resolution sonar imagery directly below the vessel; clearly shows structure, bottom composition, and fish
• SideVision™ — wide-angle sonar scanning to both sides of the boat; ideal for locating structure, wrecks, and fish-holding areas away from your track
• High-frequency CHIRP — precise fish targeting with excellent target separation and depth accuracy
• RealVision MAX 3D — photorealistic 3D sonar rendering of the underwater environment, stabilized by the built-in AHRS for a clear picture regardless of vessel motion

Key Specifications

• Sonar channels: 4 (DownVision, SideVision, CHIRP, 3D)
• Technology: Wide Spectrum CHIRP with RealVision MAX
• AHRS: Built-in attitude and heading reference system
• Mount type: Transom mount (outboard-powered vessels)
• Bracket: Marine-grade stainless steel with kick-up
• Cable included: 8 metres
• Part number: A80703
• Compatible systems: Raymarine Axiom 2 Pro RVM series, RVM-1600 sonar module

Compatible Chartplotters & Sonar Systems

The RVM-100 requires a RealVision MAX compatible display or sonar module. Compatible products include:

• Raymarine Axiom 2 Pro 9” RVM – HybridTouch MFD with RealVision MAX
• Raymarine Axiom 2 Pro 12” RVM – HybridTouch MFD with RealVision MAX

Note: The RVM-100 is not compatible with earlier RealVision 3D displays (Axiom, Axiom Pro, Axiom+). Confirm RealVision MAX compatibility before purchasing.

Accessories & Related Products

• Raymarine RealVision Extension Cable, 5m (A80476) — for additional cable reach
• Raymarine RV-100 All-In-One Transom Mount Transducer (A80464) — previous-generation RealVision 3D transom mount
• Raymarine RV-200 Bronze All-In-One Thru-Hull Transducer (A80465) — thru-hull alternative for displacement hulls

Parts Desk Insights

Best use case is the serious recreational angler or performance boater upgrading to a RealVision MAX system who wants the best available transom-mount sonar in a single unit. The RVM-100 is the correct transducer for any customer purchasing an Axiom 2 Pro RVM chartplotter — always confirm they have a RealVision MAX compatible display before recommending, as it will not work with older Axiom or Axiom Pro units running RealVision 3D. The built-in AHRS is a genuine differentiator worth highlighting — customers who’ve struggled with unstable 3D imagery on earlier systems will notice the improvement immediately. The 8m cable is sufficient for most outboard installations; for larger vessels or unusual rigging, the A80476 extension cable is the add-on to recommend. Confirm hull type is outboard-powered transom mount — customers with inboard or displacement hulls should be directed to the RV-200 thru-hull instead.
