Seachoice 50-15543 Reed Switch Fuel Sender – 9.2 in. (230mm)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Seachoice 50-15543 Reed Switch Fuel Sender – 9.2 in. (230mm)

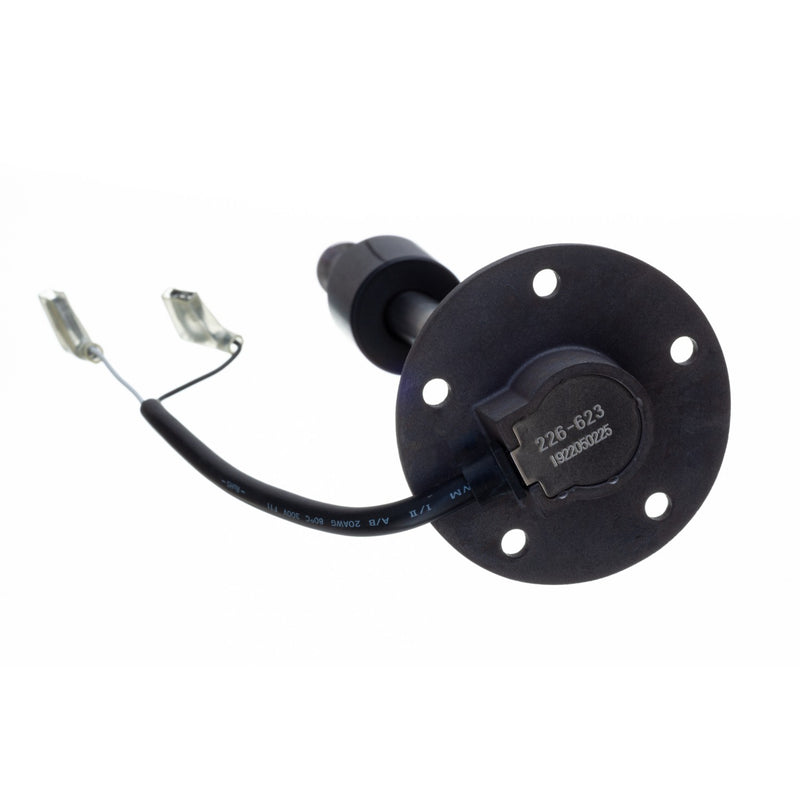

Keep your fuel readings accurate and your sender reliable. The Seachoice 50-15543 is a 9.2-inch (230mm) reed switch fuel sender designed for shallow marine fuel tanks, compatible with the standard 33 ohm (full) / 240 ohm (empty) gauge resistance range used across most marine fuel gauge systems.
The reed switch design has no moving mechanical parts — eliminating the most common failure point in traditional float-arm senders. Stainless steel immersion tubes resist corrosion in fuel environments, and the included SAE 5-hole gasket makes for a clean, straightforward installation on standard tank openings.
Key Features
- 9.2 in. (230mm) sender length — designed for shallow marine fuel tanks
- Reed switch design: no moving parts for maximum durability and long service life
- Compatible with 33 (full) / 240 (empty) ohm fuel gauges — the most common marine standard
- Stainless steel immersion tubes for corrosion resistance
- Corrosion-resistant plated mounting flange
- Includes gasket with SAE 5-hole bolt pattern
- 0.250 in. insulated spade connectors
- Part Number: 50-15543 | Barcode: 719249155431
Best Use Case
Best suited for replacing a worn or inaccurate fuel sender in a shallow marine fuel tank (approximately 9 inches deep). If your fuel gauge is reading erratically and the gauge itself tests correctly, the sender is the most likely cause. This unit is a direct drop-in for most OEM tank configurations using the SAE 5-hole mounting pattern.
Parts Desk Insights
This sender works with any standard 33/240 ohm marine fuel gauge. If you also need a replacement gauge, the Seachoice 15441 Fuel Gauge with Black Bezel is a compatible option. Need a different sender length to match your tank depth? The full Seachoice reed switch sender range includes the 10 in. (250mm), 11 in. (270mm), 13.2 in. (330mm), 16 in. (400mm), 26.4 in. (660mm), 32 in. (800mm), and 36 in. (900mm) models. Always measure your tank depth before ordering to confirm the correct sender length.
