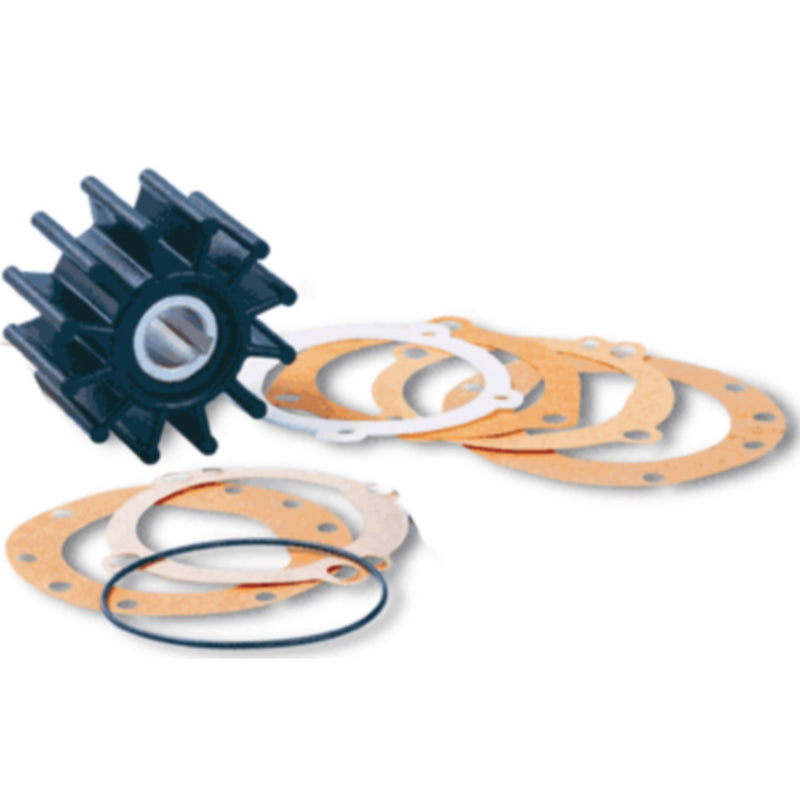

The Sherwood 26000K is a heavy-duty flexible impeller service kit for compatible Sherwood 26000-series raw-water pumps. Its large 12-blade neoprene impeller uses a 10-tooth splined hub and is designed to maintain high-volume cooling-water flow in large marine engine installations. The kit includes the replacement impeller, gaskets, O-rings and service instructions.
Key Features
- Sherwood manufacturer part number: 26000K
- Distributor SKU: 762-26000K
- Neoprene flexible impeller
- 12 flexible vanes
- Outside diameter: 3-3/4 inches / 95 mm
- Width: 3-1/8 inches / 80 mm
- Drive connection: 10-tooth spline
- Approximate shaft size: 25 mm
- Maximum published neoprene operating temperature: 130°F
- Kit includes impeller, gasket, O-ring and technical service guide
- UPC: 734943239240
Pump Compatibility
Confirmed Sherwood pump applications include:
- Sherwood G2601X (obsolete, replaced by G2603X)
- Sherwood G2603X
- Other Sherwood 26000-series pumps specifically calling for impeller kit 26000K
Engine Compatibility
The strongest documented engine association is with selected Cummins marine diesel cooling systems using Cummins impeller reference 3972366. Application references commonly associate this impeller with certain Cummins QSC 8.3 and QSL 9.0 installations equipped with Sherwood G2600-series raw-water pumps. Exact engine fitment should be verified from the installed pump model and engine cooling-system diagram.
Fitment Notice
Do not select this impeller by engine make or displacement alone. Confirm that the installed pump requires:
- Sherwood 26000K
- 3-3/4-inch / 95 mm outside diameter
- 3-1/8-inch / 80 mm width
- Twelve flexible blades
- 10-tooth splined hub
- Approximately 25 mm shaft size
The 26000K shares its 95 mm diameter and 10-tooth spline with Sherwood 29000K, but the 29000K is four inches wide. Confirming the impeller width is essential before ordering.
When This Part Needs Replacement
Replace the impeller when:
- Raw-water output becomes weak or intermittent
- Engine temperature begins rising above normal
- Cooling-system or exhaust-temperature alarms activate
- The blades are cracked, torn, hardened or permanently bent
- Pieces are missing from the impeller
- The splined hub is worn or slipping
- The pump has operated without an adequate water supply
- The pump has ingested sand, silt or other debris
- The scheduled cooling-system service interval has been reached
A damaged impeller may continue rotating while producing substantially reduced cooling-water flow.
Installation Notes
Before installation:
- Shut down the engine and isolate the starting system
- Close the raw-water seacock
- Remove the pump cover and existing sealing components
- Use the correct Sherwood impeller puller for the 26000-series pump
- Recover all broken blade fragments from the pump and downstream cooling circuit
- Inspect the cover plate, cam, housing and shaft splines
- Lubricate the new impeller with glycerine, soapy water or another approved rubber-safe lubricant
- Align the 10-tooth splines carefully
- Install the supplied gasket and O-ring
- Reassemble the pump according to the Sherwood technical guide
- Reopen the seacock and confirm strong cooling-water flow before operating under load
Never operate a flexible impeller pump dry.
Alternate / Cross-Reference Part Numbers
- Sherwood: 26000K
- Distributor SKU: 762-26000K
- Sherwood impeller-only reference: 26000
- Sherwood alternate format: 26000K-SHW
- Cummins: 3972366
- JMP Marine: 7606-01K
- Replacement reference: EMP 47-47290
- UPC: 734943239240
Parts Desk Insight
The most important distinction is the 3-1/8-inch width. Sherwood 26000K and 29000K both use a 3-3/4-inch diameter, 12 blades and a 10-tooth spline — but they are not interchangeable because the 29000K is four inches wide. Always measure the old impeller width or pull the pump model number (G2601X or G2603X) before ordering. For Cummins QSC/QSL applications, cross-check against Cummins 3972366 to confirm the correct kit.
