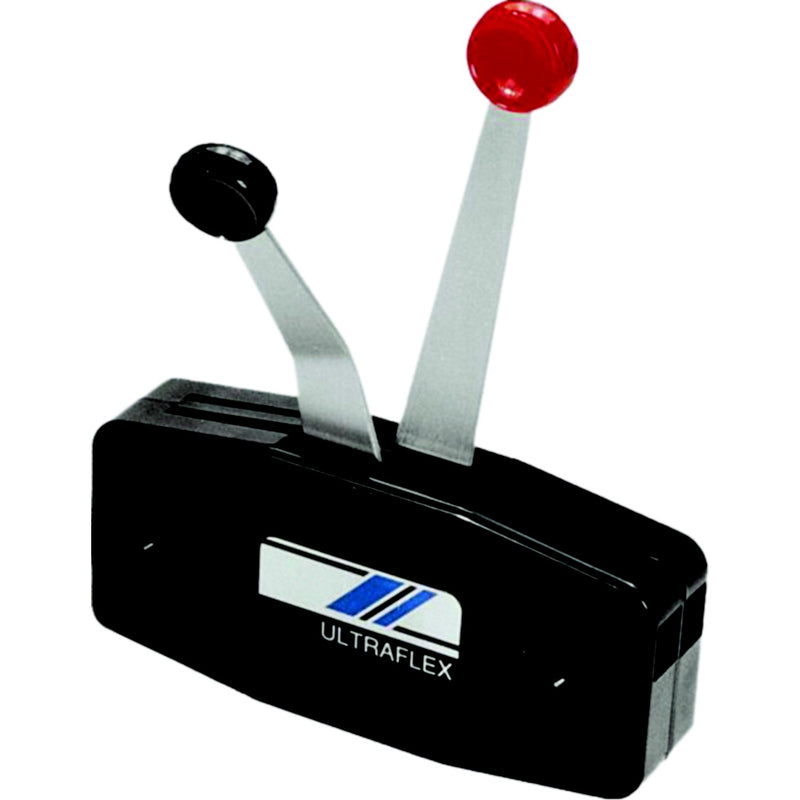

Single Function Dual Lever Side Mount Control, Black | 216-B49

Single Function Dual Lever Side Mount Control — Black | 216-B49

Overview

The 216-B49 is a single function dual lever side mount control designed for outboard-powered boats, finished in black to suit dark or two-tone helm panels. The dual lever arrangement puts throttle and shift within easy reach from the side of the helm, and the unit installs on either the port or starboard side to suit your console layout. The nylon fiberglass body and anodized aluminum levers are built to handle the salt and UV exposure of a marine environment. Cables are not included — connection kit requirements depend on your cable type.

Compatible Applications

• Single-engine outboard installations requiring side mount throttle and shift control
• Mercury Gen I cable systems — direct connection, no adapter required
• OMC-style cable systems (post-1979) — K23 connection kit required
• OMC-style cable systems (pre-1979) — K24 connection kit required
• 33C / C2 / C8 / MACHzero cable systems — K25 connection kit required
• Left or right side helm positions

Dimensions & Weight

• Weight: approx. 907 g (2 lb)
• Mounting: side mount — confirm cutout dimensions against your helm panel before installation

Kit Contents

• 1 × 216-B49 dual lever side mount control assembly, black
• Mounting hardware included
• Control cables not included — order separately based on your engine and cable type
• OMC and 33C-style connection kits (K23, K24, K25) not included — order separately if required

Installation Notes

• Determine cable type before ordering — connection kit requirements vary by cable generation
• Mercury Gen I cables connect directly; no adapter needed
• OMC post-1979 cables require K23 kit; pre-1979 OMC cables require K24 kit
• 33C, C2, C8, and MACHzero cables require K25 kit
• Unit mounts on left or right side — confirm orientation for your helm layout before cutting
• Check all cable routing for clearance and correct travel after installation
• Adjust lever friction and detents per the installation instructions before launching

Related Parts & Cables

• Single Function Dual Lever Side Mount Control — White | 216-B47
• Dual Raked Lever Side Mount Throttle Control — 216-B46T
• Mercury Gen I Throttle/Shift Cable — 9 ft (8M0082482)
• Mercury Gen I Throttle/Shift Cable — 13 ft (8M0082486)
• Mercury Gen I Throttle/Shift Cable — 15 ft (8M0082488)
• Uflex MACHZero 8 ft 33C Engine Control Cable (for K25 cable users)
• Dometic SeaStar Xtreme Control Cable 11 ft OMC (for K23/K24 OMC cable users)

Technical FAQ

Do I need a connection kit?

Only if you are not using Mercury Gen I cables. Mercury Gen I cables connect directly to this control. OMC-style and 33C-style cables require a K23, K24, or K25 adapter kit depending on the cable generation — see the compatibility table above.

Can this control be mounted on either side of the helm?

Yes. The 216-B49 is designed for left or right side mount installation. Confirm the orientation for your console before cutting the mounting hole.

What is the difference between 216-B49 (black) and 216-B47 (white)?

Functionally identical — same body, same cable compatibility, same lever action. The only difference is the color finish. Choose black (216-B49) for dark or two-tone helm panels, or white (216-B47) for lighter console tops.

Is this control suitable for twin-engine installations?

This is a single function control designed for single-engine outboard applications. Twin-engine setups typically require dual station or twin-engine specific controls — contact us if you are configuring a twin-engine helm.

What cable length do I need?

Cable length depends on the distance from the helm to the engine. Measure the full routing path — not just straight-line distance — and add slack for turns and service access. See the cable options linked in the Related Parts section.

Are cables included?

No. Control cables are sold separately. Select the correct cable type and length for your engine and helm configuration, and add the appropriate connection kit if your cables are OMC or 33C-style.

Parts Desk Insights

Best use case: The 216-B49 is the black finish version of our single function side mount outboard control — the right choice for center console, bay boat, and walkaround builds with black or dark gray helm panels where the white 216-B47 would stand out. Functionally identical to the 216-B47; the decision is purely cosmetic and should match the helm aesthetics. Mercury Gen I cable boats are the easiest installation — no adapter needed.

Common customer questions: Same as the white version: cable compatibility is the most common stumbling block. Customers frequently don’t know their cable generation and order without the right connection kit. Ask for the engine brand, year, and cable end type before the order is placed. Also confirm mount side preference — while the unit is ambidextrous, customers sometimes assume it is handed. Remind customers to measure the full cable routing distance, not the straight-line run, when selecting cable length.
