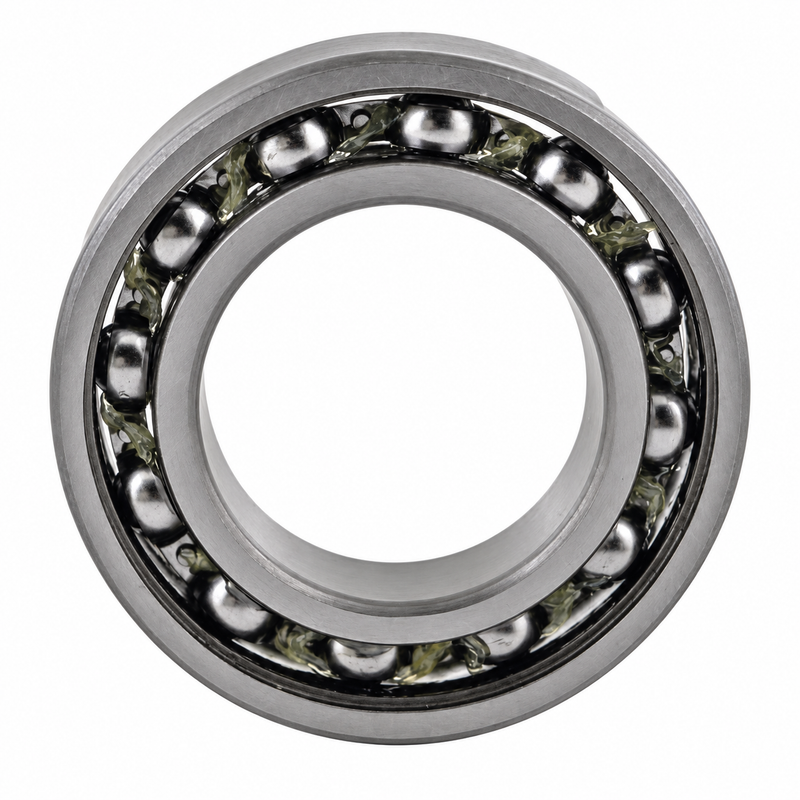

Velvet Drive 71C Forward Piston Housing Bearing B107A
Part Number: B107A (Velvet Drive / Borg-Warner)
The Velvet Drive B107A is the forward piston housing ball bearing for 71C / 10-17 marine transmissions. Factory service literature places this bearing at the forward clutch / piston housing section of the transmission. It is a model-specific internal component and is not interchangeable with the corresponding bearing used in 72C / 10-18 units.
Compatible Transmissions
- Velvet Drive 71C
- Borg-Warner 10-17 / 1017
- Selected 71C 1:1 direct-drive configurations
Documented 71C model numbers include:
- 1017-000-001
- 1017-000-002
- 1017-000-003
- 1017-000-004
- AS1-71C
- AS1-71CR
- AS1-71CB
- AS1-71CBR
Fitment Notice — 71C vs. 72C
B107A is specific to the 71C / 10-17 family. Do not use it as a direct substitute in 72C / 10-18 transmissions. Velvet Drive service documentation specifies a different bearing for the forward section of 72C / 10-18 units:
- 71C / 10-17: B107A
- 72C / 10-18: B108A or catalog reference 1000-130-016, depending on production configuration
Always confirm the transmission identification plate before ordering.
Cross-Reference Part Numbers
- Velvet Drive / Borg-Warner: B107A
- Aftermarket reference: ALT23326
When to Replace This Bearing
- Roughness or binding felt during rotation
- Radial or axial play exceeds service limits
- Pitting, corrosion, or damaged races visible on inspection
- Bearing noise present during operation
- Forward clutch assembly is being rebuilt
- Transmission has suffered lubrication loss or contamination
Installation Notes
- Confirm the unit is a 71C / 10-17 from the identification plate before disassembly
- Inspect the forward clutch cylinder and bearing seating surfaces for wear or scoring
- Check associated snap rings (R6A-7 1/2 and 4734) for damage before reassembly
- Press the bearing squarely using appropriate bearing tools — do not load the rolling elements during installation
- Lubricate according to Velvet Drive service procedures
- Verify clutch clearances and end play during final reassembly
Related Parts
- Velvet Drive 71C / 72C Gasket & Oil Seal Kit A4867HA
- Velvet Drive Needle Bearing — 4840D
- Velvet Drive Double Ball Bearing — 71 Series | 4920A
- Velvet Drive Input Shaft — 71C / 72VDR Series | 71C-3A16
- Velvet Drive 5-Inch Output Coupling A4547HA | 10-Tooth Coarse Spline
Parts Desk Insights
B107A is the right choice when the 71C / 10-17 forward clutch section is being inspected or rebuilt and the piston housing bearing needs replacement. It comes up most often during a full overhaul of older 71C direct-drive transmissions where internal bearing wear is discovered after opening the case.
The most common ordering mistake is assuming B107A fits both the 71C and 72C because both transmissions share many parts and look similar externally. They do not share this bearing — the 72C / 10-18 forward housing takes a different part. Pull the identification plate number before ordering, and double-check whether the unit is a 10-17 or 10-18 to avoid a costly wait for the correct bearing on an otherwise straightforward rebuild.
