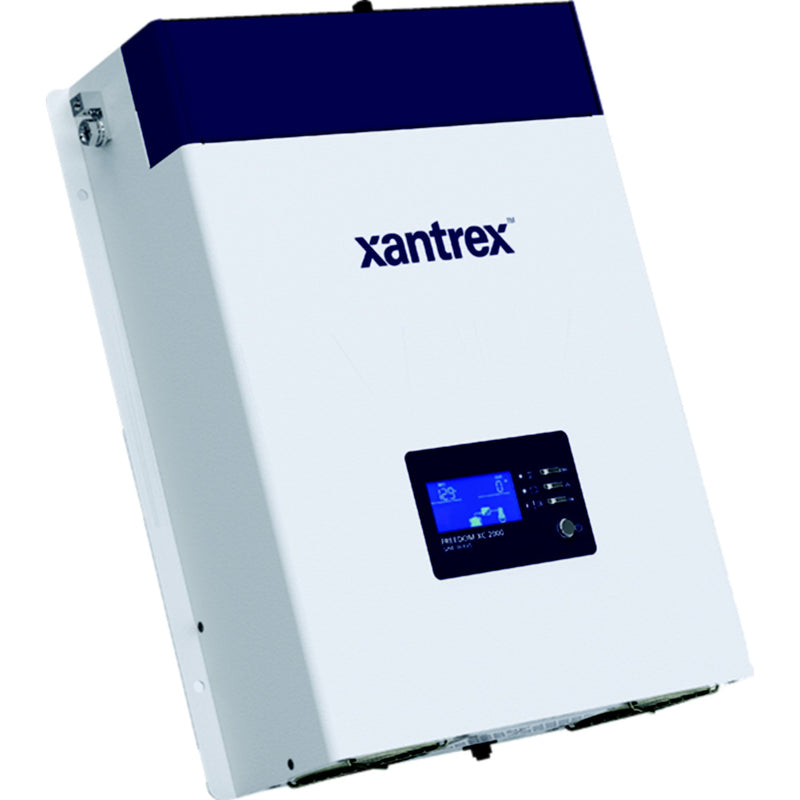

Xantrex 8172080 Freedom XC Inverter/Charger, 2000W
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Xantrex Freedom XC 2000 combines a 2,000-watt true sine wave inverter, an 80-amp multistage battery charger and a 30-amp automatic transfer relay in one compact unit. Designed for 12-volt marine, RV and commercial vehicle electrical systems, it supplies clean AC power for sensitive electronics and motor-driven appliances while automatically charging the house battery bank whenever shore power or another approved AC source is available.
Key Features
- Produces 2,000 watts of continuous true sine wave AC power at temperatures up to 40°C
- Delivers up to 4,000 watts of surge power for five seconds
- Integrated battery charger provides a user-selectable output from 5 to 80 amps
- Supports conventional and lithium-ion battery charging profiles
- Can begin charging a deeply discharged battery measuring as low as 0 volts
- Selectable 108, 110 or 120-volt AC output
- Configurable 50 or 60 Hz output frequency
- Integrated 30-amp automatic AC transfer relay
- Quick-connect AC input and output terminals simplify hardwired installation
- Compatible with optional wired and Bluetooth remote panels
Intended Use
The Freedom XC 2000 is designed for 12-volt electrical systems requiring both onboard AC power and high-capacity battery charging, including:
- Recreational and commercial marine electrical systems
- Motorhomes, travel trailers and camper vans
- Heavy-duty and commercial trucks
- Mobile service and work vehicles
- Specialty and emergency vehicles
- Off-grid battery systems using shore power or generator charging
The extended surge capacity allows it to start demanding loads such as refrigerators and microwaves while its true sine wave output is suitable for televisions, computers, kitchen appliances and other sensitive equipment.
Electrical Specifications
- Nominal DC voltage: 12 volts
- Continuous inverter output: 2,000 watts
- Continuous AC output current: 16.7 amps
- Surge output: 4,000 watts for five seconds
- Output waveform: True sine wave
- Selectable AC output voltage: 108, 110 or 120 volts
- Selectable output frequency: 50 or 60 Hz
- Nominal DC current at full inverter load: 192 amps
- Peak inverter efficiency: 91%
- Full-load inverter efficiency: 87.5% or greater
- Selectable charging output: 5–80 amps
- Minimum battery voltage for charging: 0 volts
- Maximum configurable charging voltage: 18 volts
- AC pass-through operating range: 85–140 volts
- Transfer relay rating: 30 amps
Dimensions and Weight
- Dimensions without mounting flanges: 15.4 × 10.8 × 4.0 inches
- Dimensions with mounting flanges: 16.0 × 12.0 × 4.0 inches
- Metric dimensions without flanges: 390 × 275 × 102 mm
- Metric dimensions with flanges: 406 × 305 × 102 mm
- Net weight: 16.3 lb / 7.4 kg
Certification and Marine Installation Notice
The Freedom XC 2000 is ETL listed to CSA 107.1, UL 458 and the UL 458 Marine Supplement. Xantrex specifies drip shield part number 808-1050 for installations requiring UL 458 Marine Supplement compliance. The unit is also identified for installations following applicable ABYC E-11 and A-31 requirements.
Fitment Notice
Confirm that the installation uses a 12-volt battery bank. Xantrex also produces a 24-volt Freedom XC 2000 under a different part number, so system voltage must be verified before ordering.
At full inverter output, the 12-volt model can draw approximately 192 amps. The battery bank, conductors, fuse, disconnect and charging sources must therefore be sized for the expected continuous and surge loads. Also confirm available mounting clearance, ventilation and the rating of the incoming shore-power circuit.
When This Product Needs Replacement
Inspect or replace the inverter/charger if it repeatedly shuts down under loads it previously supported, no longer transfers correctly between external AC and inverter power, fails to maintain its programmed charging profile or develops recurring overload, low-voltage, over-temperature or communication faults.
Before replacing the unit, test the battery bank, DC cable voltage drop, shore-power input and external overcurrent protection. Weak batteries or undersized DC conductors can produce symptoms similar to inverter failure.
Installation Notes
Install the Freedom XC in a dry, ventilated location protected from water, fuel vapours and excessive heat. Use correctly sized marine-grade DC conductors, a properly rated battery fuse and an accessible battery disconnect. Keep DC cable runs as short as practical and follow the Xantrex installation guide for mounting orientation, grounding, ventilation clearance and AC wiring.
The 808-1050 drip shield is required when the installation must comply with the UL 458 Marine Supplement.
Compatible Accessories
- Xantrex Freedom X Bluetooth Remote Panel – 808-0817-02
- Xantrex Freedom X/XC Wired Remote Panel with 25-foot cable – 808-0817-01
- Xantrex GFCI Option – 808-9817
- Xantrex Marine Drip Shield – 808-1050
- Xantrex 25-foot communication cable – 31-6257-00
- Xantrex 50-foot communication cable – 31-6262-00
Alternate Part Numbers
- Standard 12-volt hardwired model: 817-2080
- 12-volt model with built-in GFCI: 817-2080-11
- 24-volt Freedom XC 2000: 817-2040-21
- Unhyphenated catalogue reference: 8172080
Parts Desk Insight
The Freedom XC 2000 should not be confused with the Freedom XC PRO 2000 (818-2010), which carries a higher-capacity 100-amp charger. If a smaller unit is sufficient, the Freedom XC 1000W (817-1050) is also available. Confirm the exact model whenever replacing an existing Xantrex unit.
