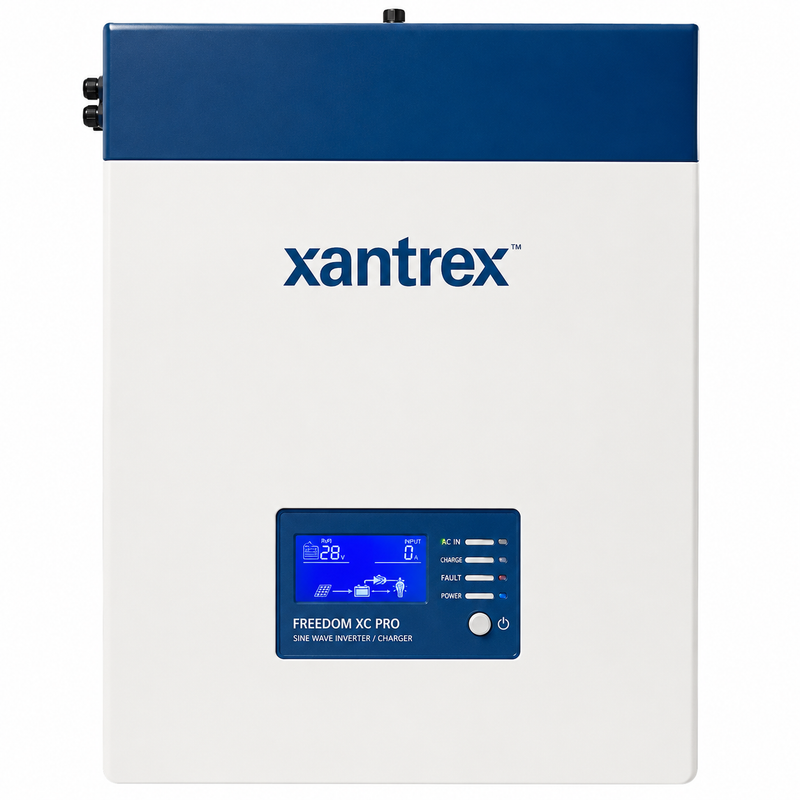

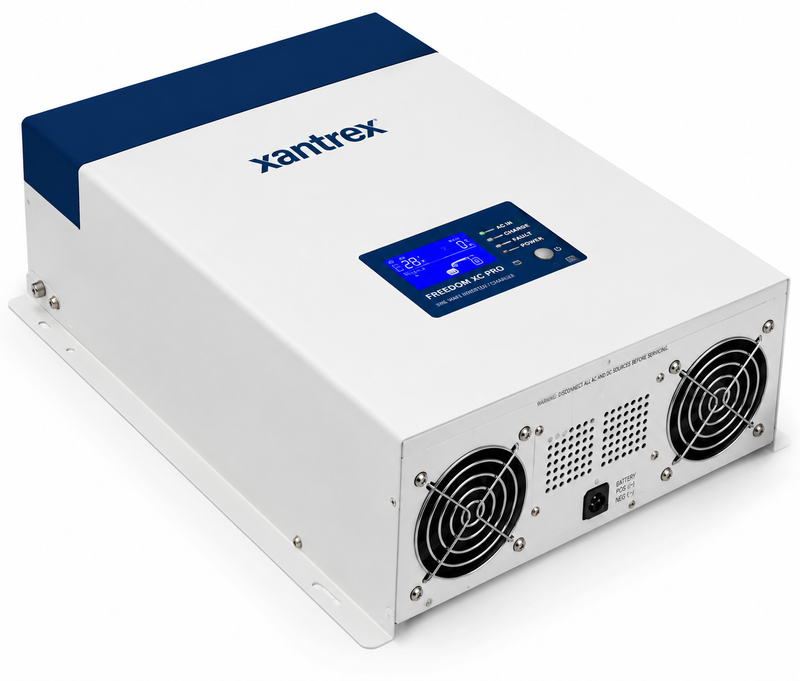

Xantrex 8183010 Freedom XC Pro Inverter/Charger, 3000 Watts
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Xantrex Freedom XC Pro 3000 Inverter/Charger — Part #818-3010
The Xantrex Freedom XC Pro 3000 delivers 3000 watts of continuous true sine wave AC output and up to 150 amps of battery charging in a single compact unit. Designed for demanding onboard power systems, it handles everything from refrigerators and microwaves to power tools and motor-starting loads — while keeping your battery bank fully charged whenever shore power or a generator is available.
Key Features
- 3000W continuous true sine wave AC output
- 6000W surge rating for up to 5 seconds
- 150A maximum battery charging output, selectable from 5A to 150A
- 12V DC battery system input
- Supports lithium-ion, AGM, gel, and flooded lead-acid battery charging profiles
- Can recover deeply discharged batteries down to 0V where conditions allow
- Configurable AC output voltage: 120V / 110V / 108V
- Configurable frequency: 50Hz or 60Hz
- Bluetooth app monitoring and configuration
- Built-in communications card
- Quick-connect AC input and output terminals
- Peak efficiency: 91%
- Operating temperature: -20°C to 60°C (with derating above 40°C)
- Compact, lightweight design for tight installation spaces
Technical Specifications
- Part number: 818-3010 (also referenced as 8183010)
- Inverter type: True sine wave
- Continuous output power: 3000W at 40°C
- Continuous AC output current: 25A
- Surge power: 6000W for up to 5 seconds
- Nominal DC input voltage: 12V DC
- DC input operating range: 10.1V to 18.0V DC
- Maximum DC charge current: 150A
- Transfer relay rating: 50A surge / 40A continuous
- Dimensions (without flanges): 15.4 in. x 10.8 in. x 4.9 in.
- Dimensions (with flanges): 16.0 in. x 12.0 in. x 4.9 in.
- Weight: 18.6 lb / 8.4 kg
Marine Installation Notice
The standard 818-3010 Freedom XC Pro 3000 is the hardwire model. Xantrex also offers the Freedom XC Pro Marine 3000 under part number 818-3015, which includes a built-in Micro-C NMEA 2000 connector. Confirm whether your installation requires the standard 818-3010 or the NMEA 2000 marine version before ordering.
For marine UL458 Marine Supplement installations, verify the required drip shield and installation accessories for your vessel configuration. Installation should be performed by a qualified marine or electrical technician following applicable ABYC requirements, battery manufacturer requirements, and vessel AC/DC wiring standards.
Battery Compatibility
This inverter/charger supports configurable charging profiles for:
- Flooded lead-acid batteries
- AGM batteries
- Gel batteries (when programmed correctly)
- Lithium-ion / LiFePO4 battery systems (where the charging profile and BMS are compatible)
Always confirm charge voltage, charge current, battery temperature requirements, and battery manufacturer settings before commissioning.
When to Replace Your Inverter/Charger
Replace if the unit no longer powers AC loads, fails to charge the battery bank, trips repeatedly under normal load, shows unresolvable fault codes, has damaged terminals, overheats, or has suffered water intrusion, corrosion, reverse polarity damage, or electrical failure. Replacement may also be appropriate when upgrading to lithium batteries, increasing AC load capacity, or modernizing an older onboard power system.
Related Accessories
- Xantrex 808081702 Freedom X Bluetooth Remote Panel — wireless monitoring and control
- Xantrex 808081701 Remote Panel with 25 ft Cable — wired remote panel
- Xantrex 31626200 Freedom SW Remote Cable, 50 ft — extended communication cable
- Xantrex 808-9817 — GFCI option
- Xantrex 808-1050 — drip shield for marine supplement installations
Alternate Part Numbers
- 818-3010 — Freedom XC Pro 3000 standard hardwire model
- 8183010 — common typed format
- 818-3010-11 — Freedom XC Pro 3000 with built-in GFCI
- 818-3015 — Freedom XC Pro Marine 3000 with Micro-C NMEA 2000 connector
Also see the Xantrex Freedom XC Pro 2000W for lower-output applications.
Parts Desk Insights
The key checks are system voltage (12V only for this model), battery type and chemistry, AC load demand, charger amperage requirements, and whether the installation needs the standard 818-3010 or the NMEA 2000 marine version 818-3015. This is a high-output unit — correct DC cable sizing, overcurrent protection, ventilation clearance, and battery programming are critical. Customers upgrading from an older inverter/charger should verify their existing DC cable gauge can handle 150A charge current before recommending this unit.
