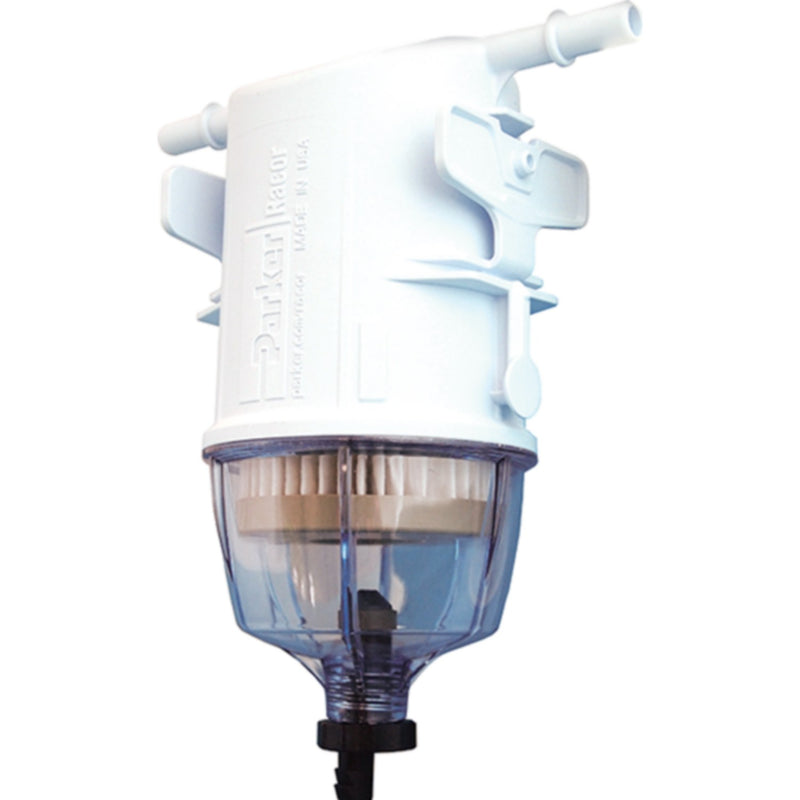

Racor R23298-10 SNAPP™ 10-Micron Replacement Fuel Filter/Water Separator with Drain
Part Number: R23298-10 / R2329810 (distributor SKU: 62-R2329810)
Brand: Racor
Type: Replacement SNAPP™ fuel filter/water separator assembly with self-venting drain and clear bowl
Filtration: 10 micron Aquabloc®
Fuel compatibility: Gasoline, E10 gasoline
Max gasoline flow: 34 GPH / 128.7 LPH
Connection: 3/8" quick-connect (mounts into existing SNAPP bracket)
UPC: 706672028129
Note: Replacement filter assembly only — bracket not included
Product Overview
The Racor R23298-10 is the 10-micron replacement filter/water separator assembly for the Racor SNAPP™ marine fuel filtration system. It snaps directly into the existing permanent stainless-steel SNAPP mounting bracket with no tools required. The complete filter housing and clear collection bowl are replaced as a single disposable unit at each service interval, while the mounting bracket and 3/8" quick-connect fittings remain installed permanently on the fuel line. A self-venting drain on the clear bowl allows accumulated water and debris to be removed between filter changes without disassembling the assembly. A 3/8" priming tube is included to assist with fuel system priming during service.
- Replacement filter assembly for the Racor SNAPP™ 23299-10 fuel filtration system
- 10-micron Aquabloc® filtration removes water and fine fuel contamination
- Complete disposable housing and clear bowl — replaced as a single unit
- Tool-free snap-in installation into the existing permanent SNAPP bracket
- Clear bowl for visual water and contamination monitoring between changes
- Self-venting drain for easy water removal without full filter replacement
- Includes 3/8" priming tube for fuel system priming during service
- Max gasoline flow: 34 GPH / 128.7 LPH
- Connection: 3/8" quick-connect
- Compatible with E10 ethanol gasoline blends
- Weight: approx. 280 g
Replacement Assembly Only: The R23298-10 replaces the disposable filter/water separator housing in an existing SNAPP installation. The permanent stainless-steel mounting bracket and quick-connect fittings are not included and are not replaced at service. If a complete first-time installation is needed — including the bracket and quick-connect fittings — use the Racor 23299-10 SNAPP Complete Assembly with Bracket.
Compatible Applications
- Routine replacement service for the Racor 23299-10 SNAPP™ 10-micron complete assembly
- Any existing SNAPP mounting bracket installation requiring a 10-micron replacement filter/water separator
- Outboard and small engine gasoline fuel systems with an existing SNAPP bracket and 3/8" quick-connect fittings installed
- Fuel systems requiring a 10-micron water-separating replacement filter compatible with E10 gasoline and within the 34 GPH flow rating
How the SNAPP Replacement Works
At each service interval: disconnect the 3/8" quick-connects from the old filter assembly, release the filter from the permanent stainless bracket, and snap the new R23298-10 into place. Reconnect the quick-connects, use the included priming tube to prime the fuel system, and inspect all connections for leaks before starting the engine. The permanent bracket stays in place — no fuel line modifications are needed for routine changes.
Service Information
Replace per the engine or fuel-system manufacturer’s maintenance schedule, or sooner when fuel restriction increases, visible contamination is present, or water accumulation in the clear bowl becomes excessive. Drain accumulated water from the clear bowl as needed between full filter replacements using the self-venting drain.
Part Number Reference
- Racor: R23298-10 / R2329810
- Distributor SKU: 62-R2329810
- UPC: 706672028129
- Complete SNAPP assembly with bracket: Racor 23299-10
- 2-micron replacement assembly: R23298-02
- 30-micron replacement assembly: R23298-30
Installation Notes
- Shut off the fuel supply before beginning filter replacement
- Disconnect the 3/8" quick-connect fittings from the existing filter assembly
- Release the old filter assembly from the permanent SNAPP bracket
- Snap the new R23298-10 assembly into the bracket until it seats and locks
- Reconnect the 3/8" quick-connect fittings to the new filter assembly
- Use the included priming tube to prime the fuel system per the engine manufacturer’s procedure
- Restore fuel supply and inspect all connections for fuel leaks before starting the engine
Technical FAQ
What is the difference between R23298-10 and 23299-10? The 23299-10 is the complete SNAPP kit including the permanent stainless bracket and quick-connect fittings — for first-time installation. The R23298-10 is the disposable replacement filter assembly used for all subsequent filter changes once the bracket is already installed. If the SNAPP bracket is already in place, order R23298-10.
Does R23298-10 include the mounting bracket? No — the bracket and quick-connect fittings remain installed permanently. The R23298-10 is the disposable filter/bowl assembly only.
Is this compatible with E10 gasoline? Yes — the R23298-10 is rated for E10 ethanol-blended gasoline.
What micron options are available? SNAPP replacement assemblies are available in 10-micron (R23298-10), 2-micron (R23298-02), and 30-micron (R23298-30). The 10-micron is the most common choice for general marine gasoline applications.
What is the priming tube for? The 3/8" priming tube included with R23298-10 assists with priming the fuel system after the filter is replaced, before starting the engine.
Related Products
- Racor 23299-10 SNAPP™ Complete Assembly with Bracket – 10 Micron
- Racor B32013 Gasoline Fuel/Water Separator – 10 Micron | Clear Bowl | Outboard
- Racor 320R-RAC-01 Gasoline Fuel/Water Separator – 10 Micron | Clear Bowl | Outboard
- Racor 320R-RAC-02 Gasoline Fuel/Water Separator – 10 Micron | Metal Bowl | Inboard / Sterndrive
- Racor 110A Fuel/Water Separator Filter – Gas & Diesel | 10 Micron
Parts Desk Insights
The R23298-10 is the routine service part for any customer who already has the 23299-10 SNAPP system installed. The most common mistake is a customer ordering the complete 23299-10 kit when they only need the replacement filter — always confirm whether the SNAPP bracket is already installed before recommending which part to order. Also confirm the 10-micron rating is correct for their application: 2-micron (R23298-02) is available for diesel injection systems requiring finer filtration, and 30-micron (R23298-30) is a coarser pre-filter option. The self-venting drain is a useful feature — remind customers they can drain accumulated water between scheduled filter changes without doing a full replacement.
