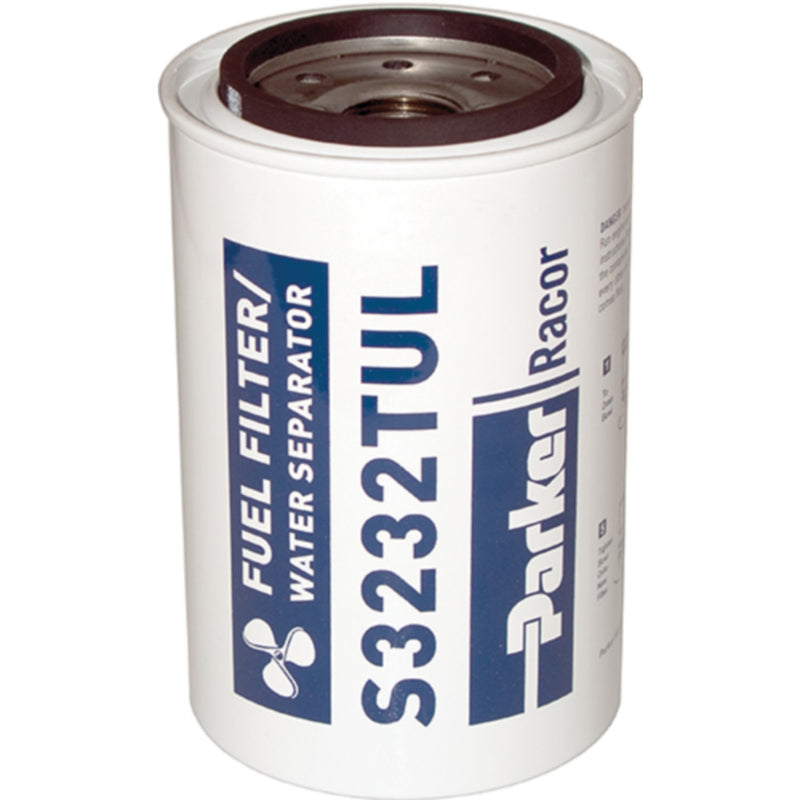

Racor S3232 10-Micron Replacement Fuel Filter Element – For 660R-RAC-01 | 62-S3232

Racor S3232 10-Micron Replacement Fuel Filter Element – For 660R-RAC-01

Part Number: S3232 (distributor SKU: 62-S3232)
Brand: Racor
Type: 10-micron replacement spin-on gasoline fuel filter/water separator element
Filtration: 10 micron Aquabloc®
Designed for: Racor 660R-RAC-01 high-flow outboard gasoline fuel/water separator
Fuel compatibility: Gasoline, ethanol-blended fuels (E10)
UPC: 706672020079

Product Overview

The Racor S3232 is the 10-micron Aquabloc® replacement spin-on filter element for the Racor 660R-RAC-01 high-flow outboard gasoline fuel/water separator assembly. The 660R-RAC-01 is rated at 120 GPH for larger outboard and multi-engine gasoline applications, and the S3232 maintains its water-separation and fine-particulate filtration performance at each service interval. The reusable clear bowl, bowl O-ring, drain, and mounting head remain in service and transfer to the new element — only the spin-on element itself is replaced.

• 10-micron Aquabloc® media removes water and fine fuel-borne contaminants from gasoline
• Replacement element for the Racor 660R-RAC-01 120 GPH outboard gasoline fuel/water separator
• Compatible with ethanol-blended gasoline (E10)
• Element only — clear bowl, O-ring, drain, and mounting head are separate reusable components
• Related clear bowl kit: RK30475
• Weight: approx. 494 g

Element Only: The S3232 is the replaceable spin-on filter element. The reusable clear bowl (RK30475), bowl O-ring, and drain assembly from the existing 660R-RAC-01 installation transfer to the new element during service. For the complete 660R-RAC-01 assembly, see the Racor 660R-RAC-01.

Outboard / Above-Deck Use Only: The 660R-RAC-01 uses a clear bowl, which is approved for outboard and above-deck gasoline installations only. For the metal-bowl inboard/sterndrive version of the 660R, see the Racor 660R-RAC-02.

Compatible Applications

• Racor 660R-RAC-01 — 120 GPH high-flow clear-bowl outboard gasoline fuel/water separator, standard 10-micron element replacement
• High-output outboard gasoline engine fuel systems using the 660R-RAC-01 assembly
• Multi-engine outboard installations serviced through a single 660R-RAC-01 high-flow separator

Fitment Note: Confirm the installed assembly is the 660R-RAC-01 before ordering. Racor spin-on elements use different center threads, bowl interfaces, and flow capacities across their product families — the S3232 is specific to the 660R-RAC-01 and is not interchangeable with elements for the 320R, 490R, or B32013/B32020MAM filter-head families. Verify the part number against your existing assembly or service documentation.

Service Information

Replace the S3232 per the engine or fuel-system manufacturer’s maintenance schedule, or sooner if fuel restriction symptoms develop (hesitation, hard starting, power loss), water accumulation in the clear bowl is excessive, or contamination is visible. Also inspect the clear bowl for haze, discoloration, cracking, or deformation during service — replace the bowl (RK30475) if any damage is found.

Part Number Reference

• Racor: S3232
• Distributor SKU: 62-S3232
• UPC: 706672020079
• Compatible assembly: Racor 660R-RAC-01 (120 GPH, clear bowl, outboard)
• Clear bowl kit: RK30475
• Metal-bowl inboard counterpart: Racor 660R-RAC-02

Installation Notes

• Shut off the fuel supply before beginning element replacement
• Remove the clear bowl from the old element — inspect the bowl, O-ring, and drain for condition; replace bowl if hazy, cracked, or deformed (RK30475)
• Transfer the serviceable clear bowl and drain assembly to the new S3232 element
• Lightly lubricate the element thread and sealing surface with clean fuel or a compatible O-ring lubricant
• Thread the S3232 onto the filter head until the sealing surface seats, then hand-tighten — do not over-tighten
• Restore fuel supply, prime the fuel system per the engine manufacturer’s procedure, and inspect all connections and the bowl for leaks before starting the engine

Technical FAQ

What assembly does the S3232 fit? The S3232 is the replacement element for the Racor 660R-RAC-01 high-flow outboard gasoline fuel/water separator (120 GPH, clear bowl). Confirm the installed assembly before ordering — the 320R-RAC-01 and 490R series use different elements.

Does the S3232 include the clear bowl? No — the clear bowl (RK30475), O-ring, and drain are separate reusable components that transfer from the old element to the new S3232 during service.

Is S3232 compatible with E10 gasoline? Yes — Aquabloc® media is compatible with ethanol-blended fuels including E10.

What is the difference between the 660R-RAC-01 and 320R-RAC-01 replacement elements? The 660R-RAC-01 (120 GPH, S3232 element) is the high-flow version for larger outboard and multi-engine applications. The 320R-RAC-01 (60 GPH, S3227 element) is the standard-flow version for most single-engine outboard applications. Their replacement elements are not interchangeable.

Related Products

• Racor 660R-RAC-01 Gasoline Fuel/Water Separator – 10 Micron | Clear Bowl | Outboard (120 GPH)
• Racor 660R-RAC-02 Gasoline Fuel/Water Separator – 10 Micron | Metal Bowl | Inboard / Sterndrive (120 GPH)
• Racor S3227 10-Micron Replacement Fuel Filter Element – For 320R-RAC-01 / 320R-RAC-02
• Racor S3228SUL 2-Micron Replacement Fuel Filter Element – For 320R / 490R Series
• Racor S3228TUL 10-Micron Replacement Fuel Filter Element – For 320R-RAC-02 / 490R Series
• Racor 320R-RAC-01 Gasoline Fuel/Water Separator – 10 Micron | Clear Bowl | Outboard (60 GPH)
• Sierra 18-7919 Fuel/Water Separator Element – 10 Micron

Parts Desk Insights

The S3232 is specific to the 660R-RAC-01 high-flow outboard assembly — the most important step is confirming the customer has the 660R-RAC-01 (not the 320R-RAC-01 or another Racor gasoline assembly), since Racor spin-on elements can look similar but use different thread sizes, bowl interfaces, and flow ratings. The clear bowl on the 660R-RAC-01 should be inspected at every element change for hazing, cracking, or deformation — a deteriorated bowl can fail to seal properly or obscure the water indicator. If the bowl needs replacement, order RK30475. Customers upgrading from a 320R-RAC-01 to a 660R for more flow capacity will need the S3232 element rather than the S3227 — worth confirming when they’re also ordering the new assembly.
