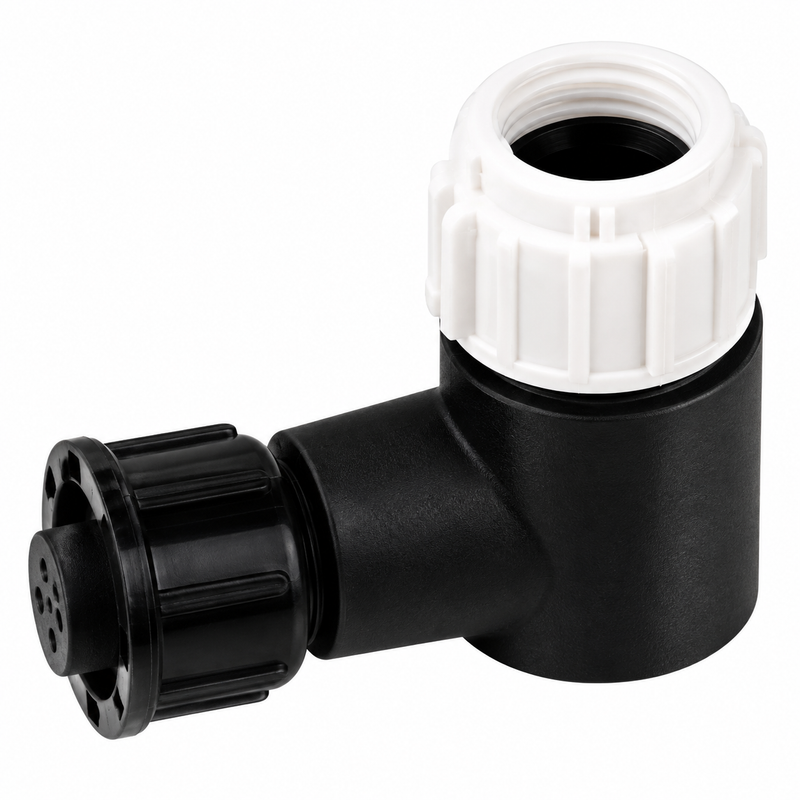

Raymarine A06084 NMEA 2000 (DeviceNet) Female to SeaTalk NG Male Right Angle Adaptor
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Information
- Part Number: A06084
- SKU: 152-A06084
- Brand: Raymarine
- Official Product Type: Marine Network Adaptor — Right Angle
- System: SeaTalk NG / NMEA 2000 Networking
- Connection A: NMEA 2000 (DeviceNet) Female
- Connection B: SeaTalk NG Male
- Adaptor Style: Right Angle (90°, no cable)
What This Part Does
The Raymarine A06084 is a right angle (90°) inline adaptor that connects an NMEA 2000 (DeviceNet) female socket to a SeaTalk NG male connector. It serves the same bridging function as a straight adaptor but routes the connection at a 90° angle — making it the right choice when space is constrained or when routing cables along a panel or bulkhead edge.
Compatible Applications
- Connecting a DeviceNet-plug device to a SeaTalk NG backbone spur or T-piece where a straight adaptor would protrude into a confined space
- Panel-mount or bulkhead installations where cable exits need to run parallel to a surface
- Any SeaTalk NG network installation requiring a right-angle DeviceNet female connection point
- Raymarine chartplotter, autopilot, radar, instrument, and NMEA 2000 sensor integrations
Dimensions & Weight
- Style: Right angle (90°) inline adaptor — no cable length
- Weight: Approx. 85 g (packaged, estimated)
- Connector A: NMEA 2000 / DeviceNet Female (5-pin micro)
- Connector B: SeaTalk NG Male
Parts Desk Insights
Best Use Case: Best suited for installations where there's limited clearance behind a chartplotter, instrument, or panel-mounted device. The 90° angle lets the cable exit flush along the mounting surface rather than protruding straight back, which is especially helpful in helm stations or flush-mount panel builds.
Common Issues: Confirm you need the right angle variant — if space allows, the straight version (Raymarine A06082) is often easier to seat and inspect. As with all SeaTalk NG connections, verify the backbone is properly terminated at both ends and that network power is applied correctly if the device doesn't appear on the network after installation.
Related Products & Accessories
- Raymarine A06082 NMEA 2000 (DeviceNet) Female to SeaTalk NG Male Straight Adaptor — straight version of this adaptor
- Raymarine A06045 DeviceNet (Female) to SeaTalk NG Adaptor Cable (0.4M) — short cable adaptor for added reach
- Raymarine A06076 SeaTalkNG to DeviceNet (Male) Adaptor Cable – 1M — 1-metre cable adaptor, DeviceNet male
- Raymarine A06079 NMEA 2000 (DeviceNet) Female to SeaTalk NG Spur Female Adapter Cable — spur female variant
- Raymarine A06064 SeaTalk NG 5-Way Connector Block — expand spur connections on your backbone
- Raymarine A06031 SeaTalkng Backbone Terminator — required at each end of an NMEA 2000 backbone
- Raymarine A06033 SeaTalkng Backbone Cable – 400mm / 1.3 ft — short backbone extension
- Raymarine A06034 SeaTalkng Backbone Cable – 1m / 3.3 ft — standard backbone cable
Service Interval
No scheduled service interval. Inspect the connector body, locking collar, and seals annually or any time connected network devices are serviced. Replace if corrosion, cracking, or a loose locking mechanism is found.
Technical FAQ
- What is the difference between A06084 and A06082? The A06084 is the right angle (90°) version; the A06082 is straight (inline). Both connect DeviceNet Female to SeaTalk NG Male — the choice depends on the available clearance behind the device.
- Is SeaTalk NG the same as NMEA 2000? SeaTalk NG is Raymarine's branded implementation of the NMEA 2000 standard. The connectors are electrically compatible but use a different locking collar style — this adaptor bridges the two.
- Does this adaptor carry power as well as data? Yes — NMEA 2000 / SeaTalk NG networks carry both 12V DC power and data on the same cable. This adaptor passes both through.
- Does this require any programming or configuration? No — it is a passive hardware adaptor with no software component.
- What was the previous part number listed on this product? This listing was previously incorrectly labelled as A06077 (a SeaTalk NG to SeaTalk 1 adaptor — a different product). The correct part number for this right angle DeviceNet to SeaTalk NG adaptor is A06084.
