Raymarine E70060 i50 Tridata Instrument Display

Raymarine E70060 i50 Tridata Instrument Display

Part Number: E70060 (distributor SKU: 152-E70060)
Brand: Raymarine
Model: i50 Tridata
Type: Compact multifunction marine instrument display — display-only package
Dimensions: 110 x 115 x 44 mm
NMEA 2000 LEN: 4

Product Overview

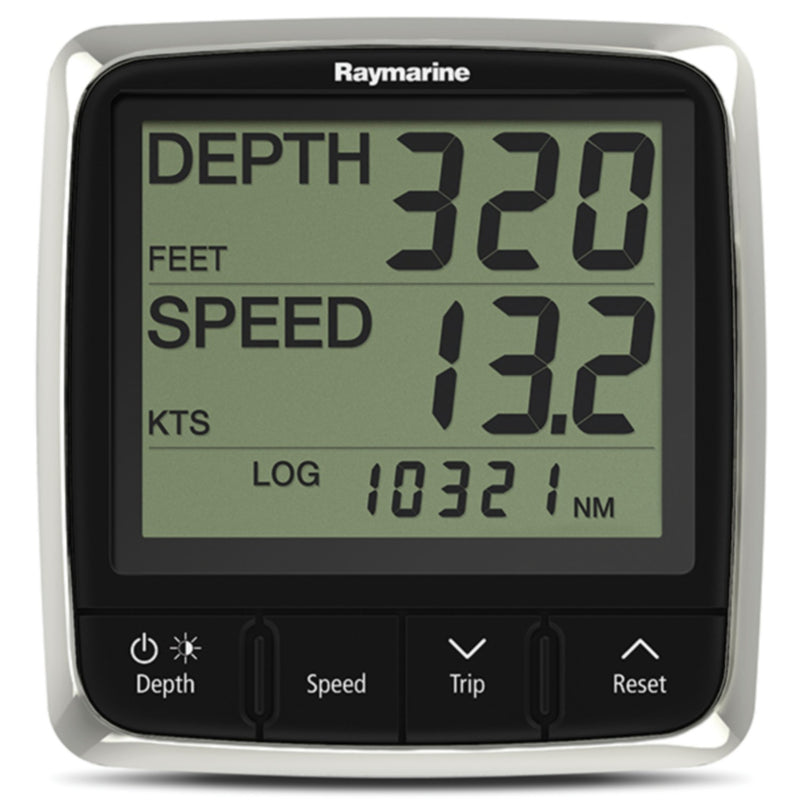

The Raymarine i50 Tridata is a compact three-line monochrome LCD instrument display that combines depth, speed, and temperature data into a single helm-mounted unit. It can operate as a master instrument connected directly to compatible transducers, or as a network repeater displaying data from a SeaTalkng or NMEA 2000 network. The high-contrast LCD with red backlighting provides clear readability in all light conditions, and the display integrates with Raymarine i70, p70, and p70R instruments and autopilots.

• Three-line high-contrast monochrome LCD display
• Displays: current depth, current / max / average speed, distance, trip log, water temperature, velocity made good (VMG), speed over ground
• Race functions: count-up timer and two race start timers
• Alarm functions: shallow depth, deep depth, shallow anchor, deep anchor
• Red backlighting with local or group dimming control
• Two SeaTalkng connection ports
• Direct transducer connections (for master configuration)
• Compatible with SeaTalkng, NMEA 2000, and legacy SeaTalk networks via appropriate adaptors
• Nominal supply: 12V DC (operating range: 10–16V DC)
• Waterproof rating: IPX6
• NMEA 2000 LEN: 4
• Dimensions: 110 x 115 x 44 mm
• Weight: 1,361 g (with packaging)

Package Contents

• 1 × i50 Tridata instrument display
• 1 × Front bezel
• 1 × Sun cover
• 1 × Mounting gasket
• 1 × 400mm SeaTalkng spur cable (A06038)
• 1 × SeaTalkng blanking plug (A06032)
• 4 × Mounting screws
• Documentation

Compatible Applications

• Sailboats, powerboats, and RIBs requiring a compact depth/speed/temperature instrument at the helm
• Adding a tridata display to an existing Raymarine SeaTalkng or NMEA 2000 instrument network
• Replacing a failed or damaged helm instrument with i50 Tridata capability
• Master instrument installation with directly connected compatible transducers (P66, B744V, B744VL, or analog DST800)
• Repeater display receiving depth, speed, and temperature data from the vessel network
• Integration with Raymarine i70, p70, and p70R instruments and autopilot systems

Important: E70060 is the display-only package. A compatible transducer (when used as master) or an active SeaTalkng / NMEA 2000 network data source is required to provide depth, speed, and temperature data. Confirm your existing transducer and network configuration before ordering.

Part Number Reference

• Raymarine i50 Tridata Display: E70060 / 152-E70060
• Related i50 Speed Display: E70058
• Related i50 Depth Display: E70059
• Included SeaTalkng spur cable: A06038
• Included SeaTalkng blanking plug: A06032

When to Replace

• LCD segments become unreadable or display fails
• Backlight fails or dims uncontrollably
• Buttons become unresponsive or physically damaged
• Water intrusion into the display housing
• Intermittent or failed SeaTalkng network communication that cannot be resolved through wiring or network service

Installation Notes

• Cut the panel opening to the required dimensions and secure the display using the supplied mounting screws and gasket
• Connect to the SeaTalkng backbone via the supplied 400mm spur cable and a compatible T-connector or 5-way connector block
• For NMEA 2000 (DeviceNet) integration, use the Raymarine A06076 SeaTalkng-to-DeviceNet Adaptor Cable
• Cap any unused SeaTalkng ports with the supplied blanking plug
• When configuring as a master instrument with direct transducer connections, follow Raymarine’s transducer wiring diagram for the i50 platform
• Verify network power, terminators, and data communication through the display setup menu after installation

Technical FAQ

Can the i50 Tridata work without a network? Yes — when configured as a master instrument with directly connected compatible transducers (depth, speed, temperature), the i50 Tridata can operate standalone without a SeaTalkng backbone.

What transducers are compatible? Raymarine P66, B744V, B744VL, and analog DST800 depth/speed/temperature transducers are compatible for direct connection. Other data sources can be received via the SeaTalkng network.

Is the i50 Tridata compatible with NMEA 2000? Yes, via the Raymarine A06076 SeaTalkng-to-DeviceNet Adaptor Cable. The i50 connects natively to SeaTalkng, which is Raymarine’s NMEA 2000-compatible network.

Can multiple i50 displays share the same network? Yes — multiple i50 units can be added to the same SeaTalkng backbone and share data from the same connected sensors.

Related Products

• Raymarine SeaTalkng Starter Kit
• Raymarine A06031 SeaTalkng Backbone Terminator
• Raymarine A06076 SeaTalkng to DeviceNet Adaptor Cable – 1M
• Raymarine A06064 SeaTalkng 5-Way Connector
• Raymarine E70327 i70s Multifunction Instrument Display
• Raymarine DT800 Smart Depth & Temperature Transducer

Parts Desk Insights

The E70060 i50 Tridata is one of the most common Raymarine instrument replacements for sailboats and smaller powerboats. The key distinction is that it’s the display only — customers frequently assume the transducer is included. Always confirm whether the customer has an existing compatible transducer before completing the sale. For customers building a new installation from scratch, they’ll also need the SeaTalkng Starter Kit or equivalent backbone components. The most common post-installation issue is no data displaying — in most cases this is a missing network terminator or an incorrectly configured master/repeater setting in the display setup menu.
