Seachoice 50-15541 Reed Switch Fuel Sender – 8 in. (200mm)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

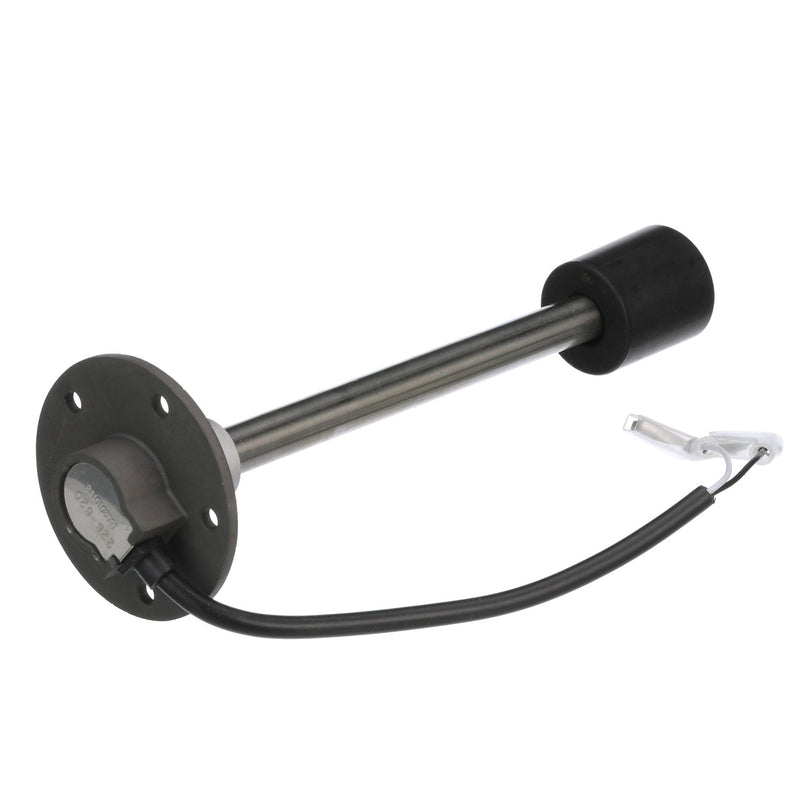

Seachoice 50-15541 Reed Switch Fuel Sender – 8 in. (200mm)
Reliable fuel level monitoring for shallow-tank boats. The Seachoice 50-15541 is an 8-inch (200mm) reed switch fuel sender built for marine fuel tanks, compatible with the standard 33 ohm (full) / 240 ohm (empty) gauge resistance range found on most marine fuel gauge systems.
With no moving mechanical parts, the reed switch design outlasts traditional float-arm senders and eliminates the most common cause of erratic gauge readings. Stainless steel immersion tubes handle the corrosive fuel environment, and the included SAE 5-hole gasket ensures a clean, leak-free installation on standard tank openings.
Key Features
- 8 in. (200mm) sender length — designed for very shallow marine fuel tanks
- Reed switch design: no moving parts for maximum durability and long service life
- Compatible with 33 (full) / 240 (empty) ohm fuel gauges — the most common marine standard
- Stainless steel immersion tube for corrosion resistance
- Corrosion-resistant plated mounting flange
- Includes gasket with SAE 5-hole bolt pattern
- 0.250 in. insulated spade connectors
- Part Number: 50-15541 | Barcode: 719249155417
Best Use Case
Best suited for replacing a worn or inaccurate fuel sender in a very shallow marine fuel tank (approximately 8 inches deep). If your fuel gauge is reading erratically and the gauge itself tests correctly, the sender is the most likely cause. This unit is a direct drop-in for most OEM tank configurations using the SAE 5-hole mounting pattern.
Parts Desk Insights
This sender works with any standard 33/240 ohm marine fuel gauge. If you also need a replacement gauge, the Seachoice 15441 Fuel Gauge with Black Bezel is a compatible option. Need a longer sender for a deeper tank? The full Seachoice reed switch sender range includes the 9.2 in. (230mm), 10 in. (250mm), 11 in. (270mm), 13.2 in. (330mm), 16 in. (400mm), 26.4 in. (660mm), 32 in. (800mm), and 36 in. (900mm) models. Always measure your tank depth before ordering to confirm the correct sender length.
