Seachoice 50-15501 Marine Fuel Gauge Kit – Gauge & In-Tank Sender
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Seachoice 50-15501 Marine Fuel Gauge Kit – Gauge & In-Tank Sender
Everything you need to add or replace a complete fuel monitoring system on your boat — in one kit. The Seachoice 50-15501 bundles a low-profile 12V fuel gauge with a float-arm in-tank sender, giving you a matched, ready-to-install fuel level system for gas or diesel tanks ranging from 6 to 27 inches deep.
The non-ferrous sender hardware resists corrosion in both fuel types, and the float arm rotates in 90° intervals so you can clear tank walls or internal baffles without modification. Mounting screws and a gasket are included for a complete installation. The gauge features a black bezel and a built-in light kit for visibility in low-light conditions.
Key Features

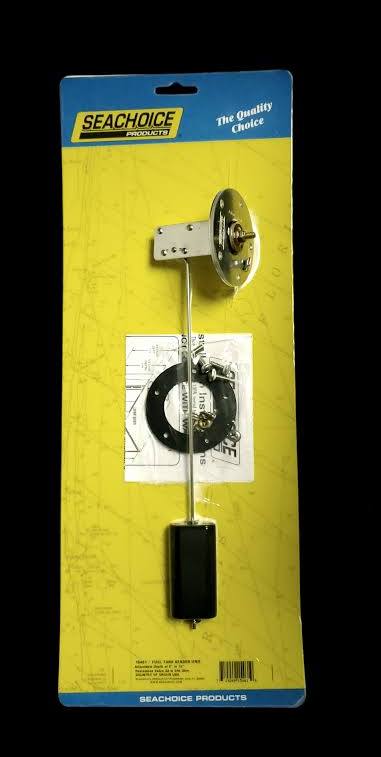

- Complete kit: includes fuel gauge and float-arm in-tank sender (combines Seachoice 15441 gauge + 15421 sender)
- Compatible with gas or diesel fuel tanks
- Tank depth range: 6 in. to 27 in.
- Non-ferrous sender materials for corrosion resistance
- Float arm rotates in 90° intervals for baffle and wall clearance
- Includes mounting screws and gasket

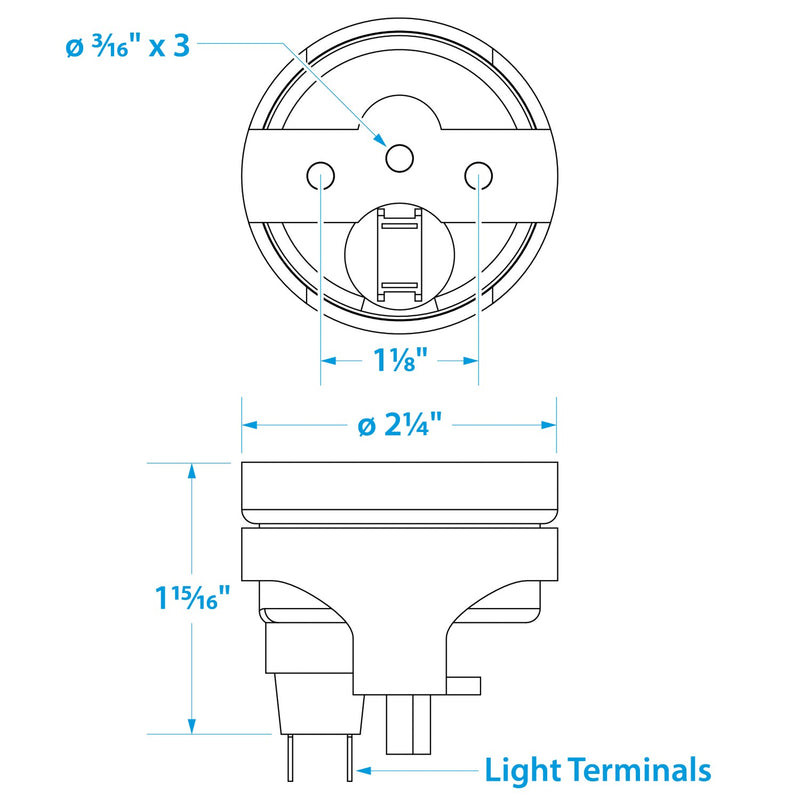

- Low-profile gauge with black bezel, 12V negative ground
- Built-in light kit for night visibility
- Not for dual-station applications
- Part Number: 50-15501 | Barcode: 719249155011
Best Use Case
Ideal for a full fuel gauge system replacement or a new installation on a single-station boat with a gas or diesel tank between 6 and 27 inches deep. This kit eliminates the guesswork of matching a gauge to a compatible sender — both components are pre-matched and ready to install together. Best suited for boats where the existing gauge and sender are both worn or where no fuel gauge system is currently installed.
Parts Desk Insights
If you only need the gauge without the sender, the Seachoice 15441 Fuel Gauge with Black Bezel is available separately. If your tank is outside the 6–27 inch depth range covered by this kit's float-arm sender, or if you prefer a no-moving-parts reed switch sender, the Seachoice reed switch sender range is available in lengths from 6 in. (150mm), 7 in. (180mm), 8 in. (200mm), 9.2 in. (230mm), 10 in. (250mm), 11 in. (270mm), 13.2 in. (330mm), 16 in. (400mm), 26.4 in. (660mm), 32 in. (800mm), and 36 in. (900mm). All reed switch senders are compatible with standard 33/240 ohm gauges including the 15441.
