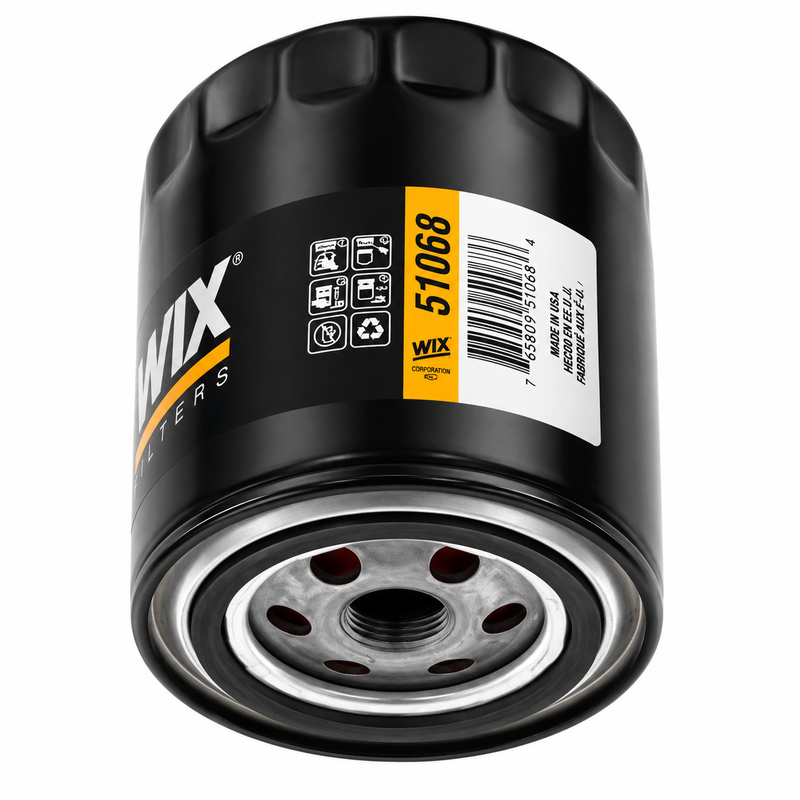

WIX Oil Filter 51068 – Ford, Chrysler, Kubota & Marine
The WIX 51068 is a full-flow spin-on lubricating oil filter designed to remove abrasive contaminants while maintaining dependable oil flow through the engine’s lubrication system. It uses enhanced-cellulose filter media and includes an anti-drainback valve to help retain oil in the filter during shutdown, reducing the risk of a dry start.
This long-format filter measures approximately 4.34 inches high by 3.66 inches in diameter and uses a 3/4"-16 mounting thread. It carries a nominal 21-micron rating, an 8–11 psi bypass-valve setting, and a rated flow range of 7–9 gallons per minute.
Key Features
- Full-flow spin-on engine oil filter
- Enhanced-cellulose filtration media
- Nominal filtration rating: 21 microns
- Thread size: 3/4"-16
- Height: approximately 4.338 in / 110 mm
- Outside diameter: approximately 3.66 in / 93 mm
- Gasket outside diameter: approximately 2.834 in / 72 mm
- Gasket inside diameter: approximately 2.462 in / 63 mm
- Rated flow range: 7–9 GPM
- Bypass-valve setting: 8–11 psi
- Integrated anti-drainback valve
- Burst-pressure rating: 275 psi
- Attached sealing gasket
- WIX Part Number: 51068
- UPC/GTIN: 765809510685
Engine Compatibility
WIX principally associates the 51068 with select:
- AGCO and AGCO Allis tractors
- Chrysler applications from approximately 1970–1991
- Ford and Mercury applications from approximately 1983–1997
- Kubota-powered equipment
- Land Rover applications from approximately 1995–2004
- Toyota applications from approximately 1968–1990
- Select industrial and agricultural engines using the corresponding filter specification
The filter may also appear on marinized installations using related base engines, but compatibility must be confirmed through the installed filter number, engine model, and filter-head specification.
Fitment Notice
Confirm the number printed on the existing filter or verify the engine model, serial number, and oil filter head requirements before ordering. Many filters use the same 3/4"-16 mounting thread — a filter may physically screw onto the filter head while having a different body length, gasket diameter, bypass pressure, anti-drainback arrangement, or flow capacity. Available clearance must also be checked as the WIX 51068 is approximately 4.34 inches long.
When to Replace
Replace the oil filter whenever the engine oil is changed or at the interval specified by the engine or equipment manufacturer. Earlier replacement may be appropriate following extended low-speed or high-load operation, frequent short operating cycles, fuel, coolant, water or debris contamination, long periods of seasonal storage, internal engine repairs, abnormal oil-pressure conditions, or operation in dusty or severe-duty environments. Replace the filter immediately if its housing is dented, corroded, or leaking.
Installation Notes
Remove the old filter and confirm its sealing gasket has not remained on the mounting surface. Clean the filter head and inspect for corrosion, damage, or old gasket material. Lightly coat the new gasket with clean engine oil and install by hand to the manufacturer’s tightening specification — do not overtighten. After installation: refill with the specified oil, start the engine and verify normal oil pressure, inspect for leakage, shut down and allow oil to settle, then recheck and correct the oil level.
Cross-Reference Numbers
- NAPA Gold 1068
- Baldwin B233 / B120
- Donaldson P552518
- Fleetguard LF16210
- FRAM PH2833
- Luber-finer LFP5523
- Purolator L20081
- CARQUEST 85068
Cross-reference numbers are comparison aids only. Confirm the thread, dimensions, gasket, bypass-valve setting, and original engine application before substituting filters.
Other WIX Filters
- WIX Oil Filter 51083 – Mercury & Mariner Outboards
- WIX Oil Filter 51515 – Ford Marine
- WIX Oil Filter 51365 – Honda Marine, Tohatsu & Yanmar
- WIX Oil Filter 51358 – Yanmar Marine Diesel
- WIX Oil Filter 51806
- WIX Hydraulic Filter 51551 – 10 Micron
Parts Desk Insights
The WIX 51068 shares its 3/4"-16 thread with many common oil filters, but its length, gasket dimensions, and 8–11 psi bypass setting are all part of the fitment. Matching the existing filter number is much safer than choosing one that simply threads onto the engine. This filter has broad automotive, agricultural, and industrial coverage but limited marine-specific OEM cross-references — if you’re fitting this to a marinized engine, confirm against the engine builder’s filter specification rather than the base automotive application.
